Specifications
Our products has feasures of1. nice appearence
2.high efficency
3.low noize
4. easy control.
Suitable material |
color steel sheet |
|
Thickness of raw material |
0.5—0.6mm |
|
Yield strength of material |
235Mpa |
|
Working Speed |
about 2000-3000mm/min |
|
Step distance |
adjustable according to requirement (>=250mm) |
|
Power Requirement |
Main motor power: |
5.5Kw (Depend on final design) |
Hydraulic station power: |
5.5Kw (Depend on final design) |
|
Uncoiler's loading capacity |
Max. Capacity: 5000kgs (can be increased to be 10T) |
|
Controlling system |
Mitsubishi PLC & converter |
|
Machine's size |
about 18m×1.5m× 1.4m (Depend on final design) |
|

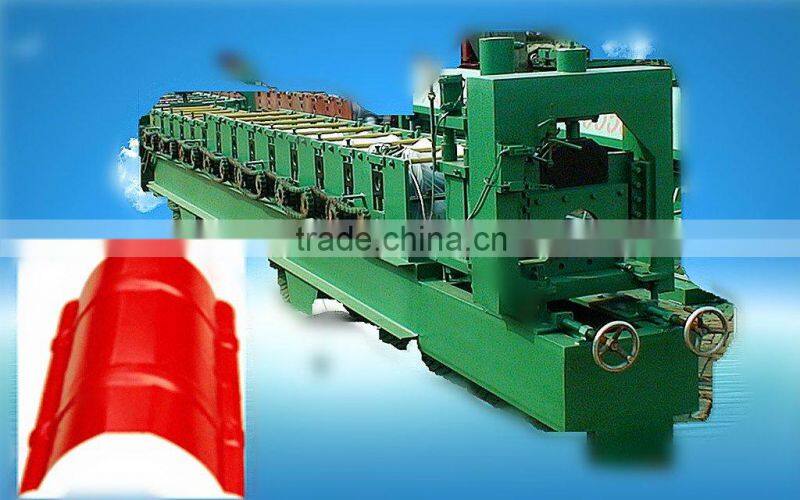

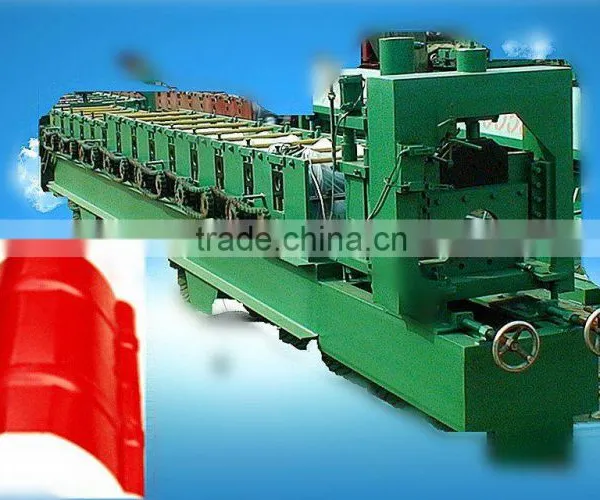

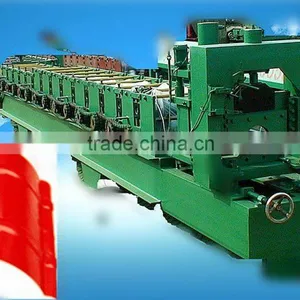

Metal Sheet Ridge Cap Forming Machine
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
