Help CenterHigh Quality --color Steel Roll Forming Machinery
Related Products
-
Sheet Roll Forming MachineryUS$ 10,000 - 20,000MOQ: 1 Set -
Trapezoid Steel Roof Cold Roll Forming MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
JCX--roofing Sheet Roll Forming MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Roll Forming AchineUS$ 10,000 - 20,000MOQ: 1 Set
-
Roll Forming AchineUS$ 10,000 - 20,000MOQ: 1 Set
Specifications
1,roll froming machine:Fast2,Little error
3,Quality is stable
Introduction:

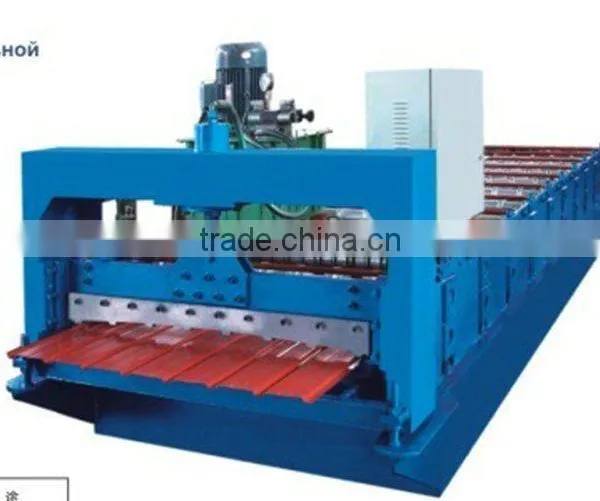

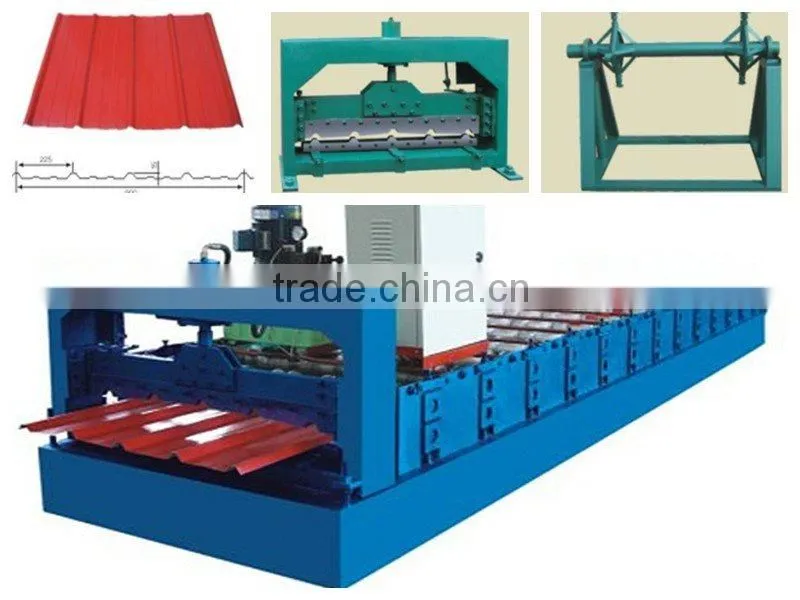

Machine consist of uncoiler and its base, coil sheet guiding equipment, film covering device, roll forming system, post cutting equipment, hydraulic station, controlling system, supporter table.
Technical Parameters:
1. Leak frame load-bearing:4T
2. Rack: welding with 350H steel
3. The form of forming machine guiding filling: side skip
4. The form of forming machine: chain drive with wallboard type, the thickness of wallboard is 12mm.
5. Diameter of Shaft is: 72mm
6. Chain: 0.6 inch single row
7. Main motor power:3kw double pole reduction box
8. Forming Speed: 8m/min
9. Number of tracks: 11 tracks
10. Roller material: high grade 45#steel
11. Hydraulic station power: 3kw
12. Hydraulic station oil pump: gearpump
13. Cutting type: hydraulic cut
14. Forming Cutting blade: Cr12
15. Heat treatment on cutting blade: HRC58°-60°
16. Thickness of coil sheet: 0.3-0.8mm
17. Coil width of material: 1000mm
18. Index error of length: ±2mm
19. Controlling system: PLC
20. Voltage: 380V 3phase 60 HZ or at buyer’s requirement
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
