Introducation

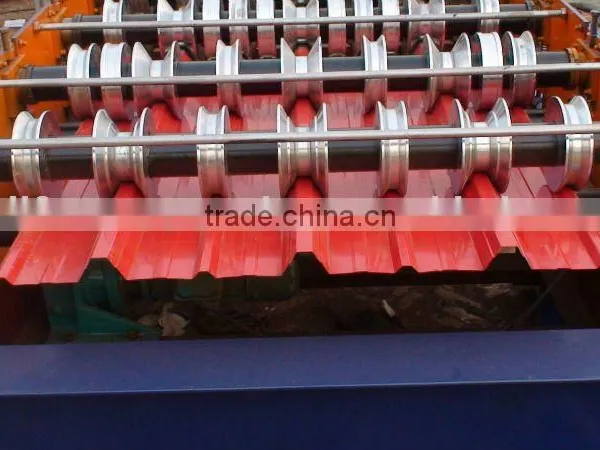

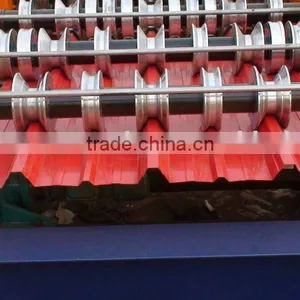

Machine consist of uncoiler and its base, coil sheet guiding equipment, film covering device, roll forming system, post cutting equipment, hydraulic station, controlling system, supporter table.
Technical Parameters:
Material Spec: colored steel sheet; galvanized steel sheet
Thickness of coil sheet: 0.3-0.8mm
Main Motor Power: 4 kw
Forming Speed: 10-12m/min
Hydraulic station power: 3kw
Quantity of stand:about 14 or 16 stands
Hydraulic pressure:10-12mpa
controlling system: PLC
Index error of length:10m+2mm
Total weight: about 6 tons
Voltage: 380V 3phase 60 HZ or at buyer's requirement
Material of main equipment
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
Active shaft material: high grade NO.45 carbon wrought steel at Φ 72mm
Cutting blade: Cr12 mould steel with quenched treatment.
