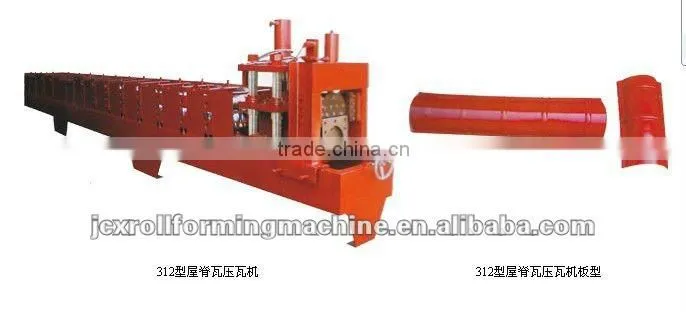

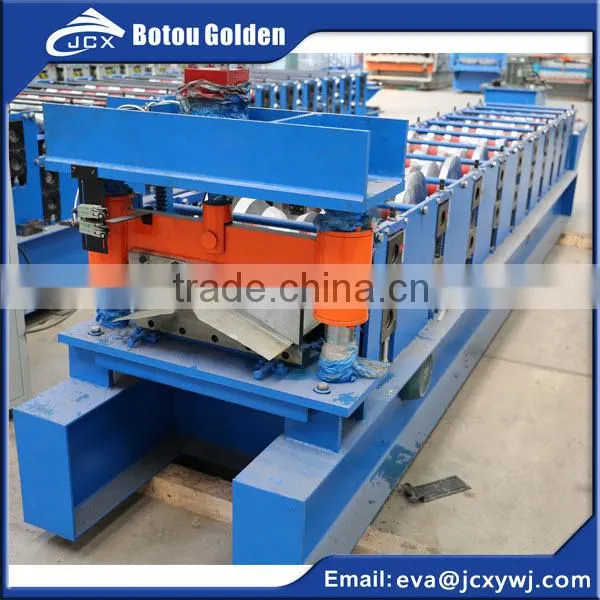

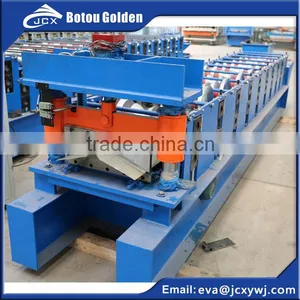

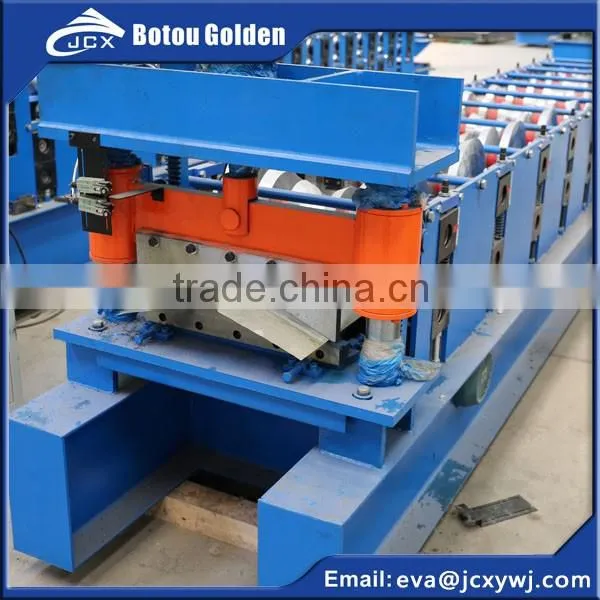

steel roofing ridge cap making machine
General performance of the line
1) Material thickness: 0.3-0.8mm
2) Material width: max 1250mm
3) controlling device:PLC
4) Line speed:2-4 m/min
5) Power supply: 380V/ 50Hz/ 3Phase or customer design
6) Total power: 4+3 kw
7) Dimension: about 7.2m*1.4m*1.5m
8) Feeding width: 500mm
9) Number of forming stations: 13-15 pairs
2. Working flow
1) Decoiling: feeding of the material for bottom metal strip.
2) Roll forming: producing the bottom metal strip for roof or wall panel.
3) Raw material feeding table: In order to feeding the mmaterial straightly.

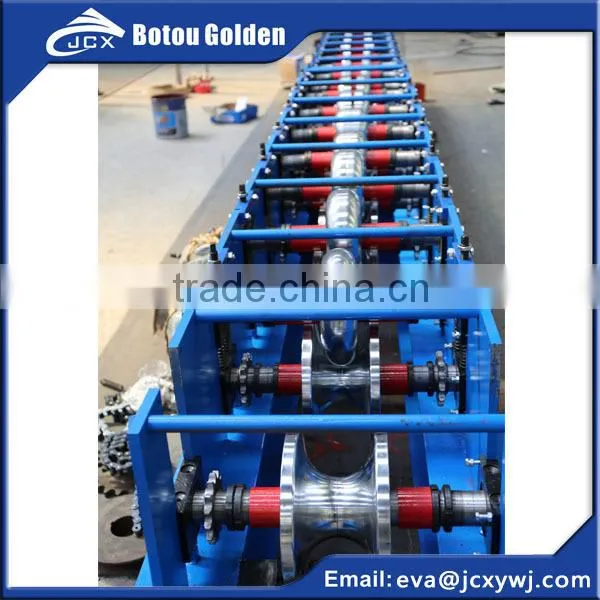

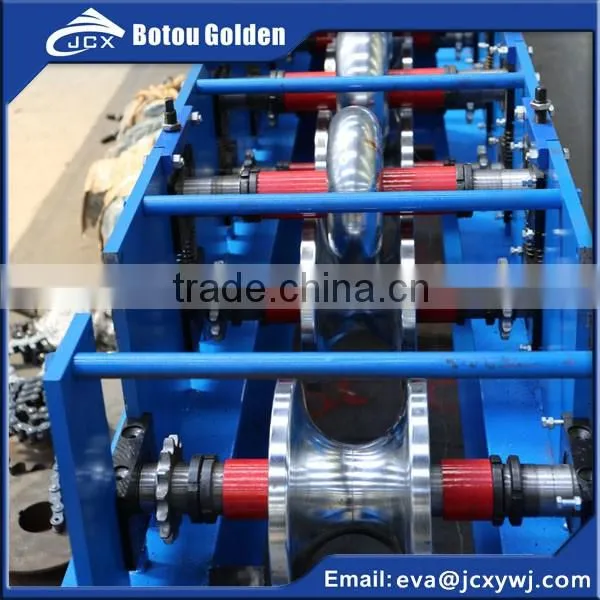

4) Main forming station: shaft material is 45# steel forged,roller material is 45# bearing steel.
5) Cutting system: material of the cutting blade is Cr12MoV,the best cutting distance of the blade is within 1mm.
6) Controlling system: All the production line will controlled by the PLC,realized the full- automatic.
7) The counter: every machine we will provided several extra counters for the damage of the counter.
8) Run-out table:we have different kinds of receiving table,the simple one,the auto-stacker or other designed run out table,we can designed it according your demand.
9) We will provided a whole production line if you have no special requests.

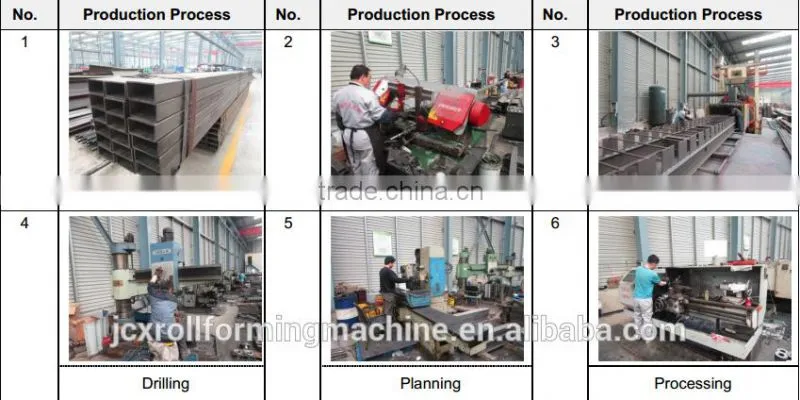

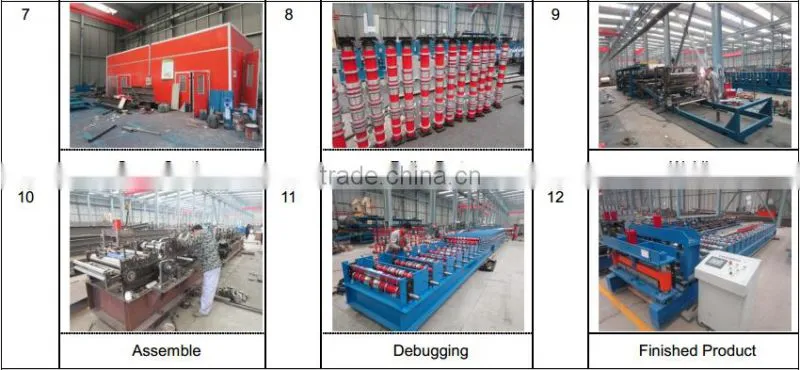

The production of steel Ridge Cap Making Machine :
