Specifications of Ridge Cap Roll Forming Machine - metal roof ridge cap making machine
About our factory:
At recent years,large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Malaysia,Nigeria, Rumamia and Albania etc,more than 50 countries and regious.our machine has win high reputation .
HIGH QUALITY AND REASONABLE PRICE.
Reference Drawings
Offer Factory Price Roof Tile Roll Forming Machine | ||
Item | Specification | |
Material | Type | Pre-painted steel coil & galvanized coils |
Thickness | 0.3-0.8mm | |
Yield strength | 235Mpa.Q345Mpa, Q550Mpa | |
Roller material | Quenched and tempered treatment, hard chrome coated.05-0.07mm | |
Forming speed | About 15-20m/min | |
Output speed | 13-15m/min | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |
Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Panasonic or Delta PLC | |
Operating mode | Button + Panasonic/Delta Touch screen | |
Main motor | 4KW | |
Hydraulic station motor | 3KW | |
Technical specification of every parts
1).decoiler: Optional
<1>. Manual un-coiler
<2>. Hydraulic decoiler

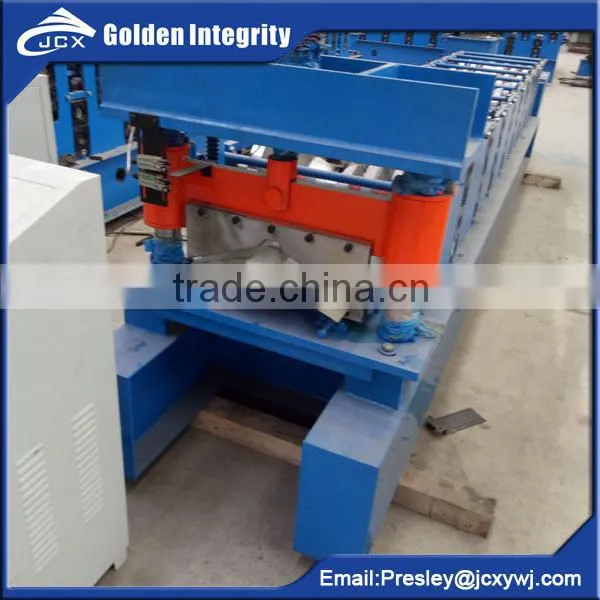

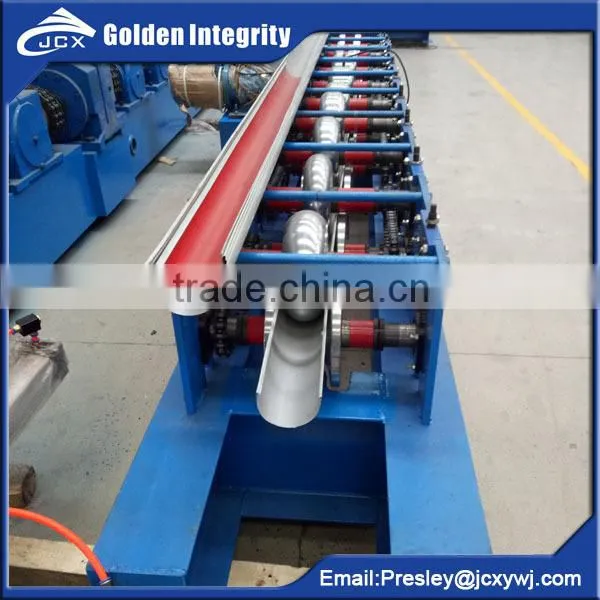

2)photo of machine

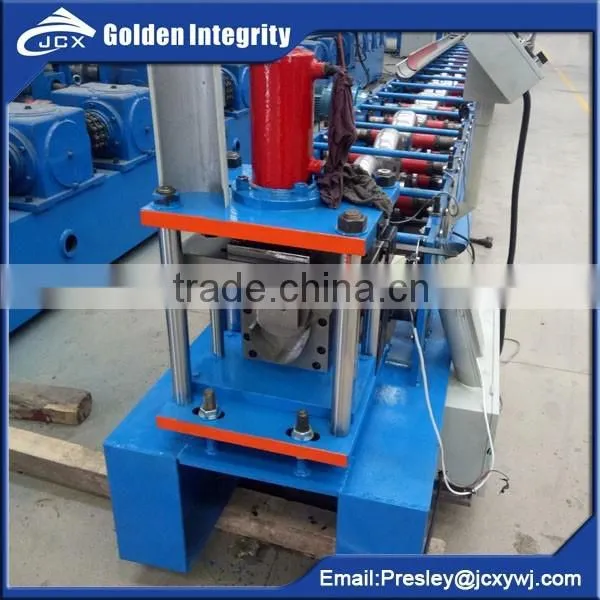

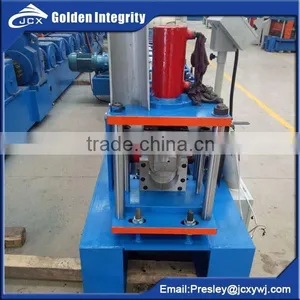

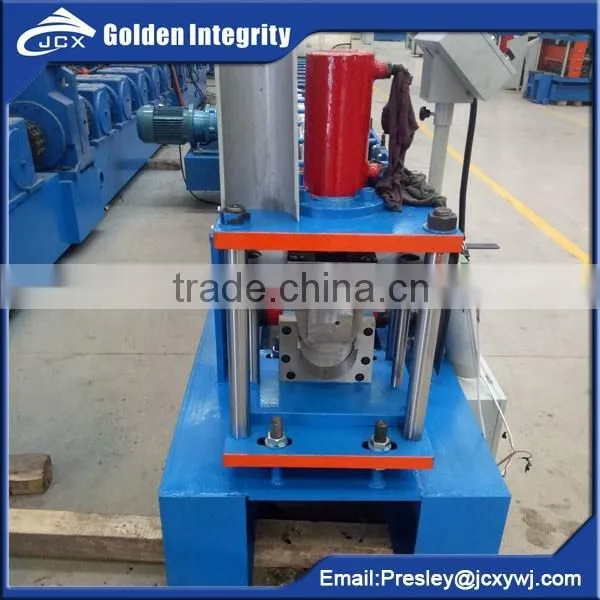

Hydraulic system
Stacker : Optional
(1). manual
(2) Auto
Payment items:
1.Delivery date: 30-40 working days after receiving deposit.
2.Packing: Main machine is nude,the computer control box is packed by wooden carton box.
3.Sales clause: you should pay 30% of the total payment on the order day, after signing, you can send person to inspect goods, then payoff the whole payment before shipping out the goods.
4.Guarantee:In correct operation and maintenance, the machine is one year guarantee since leaving the seller’s factory.
5.Installation: If buyer need, the seller will send one or two technician to the buyer's factory to install & testing the machine, the buyer will assist the seller’s technician to get the visa and pay for the two-way flight tickets and local accommodation, visa cost. by the way , buyer pay 100USD/day for technician extra.
5.Certification
ISO CE are available,we can send our engineer to your side, install and adjust machine.
Loading:
FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
