Help Center3kw 312 Ridge Cap Roll Forming Machine
Related Products
-
PLC Controled Automatic Roof Ridge Cap Roll Forming MachineUS$ 10,000 - 30,000MOQ: 1 Set -
PLC Controled Automatic Metal Roof Ridge Cap Roll Forming MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Hot Sale PLC Controled Metal Roofing Ridge Cap Roll Forming MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
JCX Ridge Roll Forming Machine Roof Tile Roll FormingUS$ 13,500 - 19,500MOQ: 1 Set
-
Metal Roof Ridge Cap Roll Forming MachineUS$ 13,500 - 19,500MOQ: 1 Set
Specifications
Lower costHigh efficiency
Reliable working
Low energy consumption
Processing technique and deployment:
Man-made uncoiler—Roll forming machine—PLC system—Hydraulic system—Blade—Receiving table
| Specifications: | ||
| No. | Item | Description |
| 1 | Model No. | JCX312 |
| 2 | Suitable material | Color steel sheet ,galvanized steel sheet, Aluminium sheet |
| 3 | Working speed | 1-3m/min |
| 4 | Main motor power | 3kw with cycloidal reducer |
| 5 | Hydraulic station power | 3kw |
| 6 | Electrical control system | PLC control system with famous brand |
| 7 | Thickness of material | 0.25mm~0.8mm |
| 8 | Shaft diameter | 70mm |
| 9 | Roller station | 11 stations |
| 10 | Material expand axis | 312mm |
| 11 | Dimension | 6000x1500x1500mm |
| 12 | Driving mode | Chain |
| 13 | Electric tension | 380V 3phase 50HZ or as the customer's requirements |

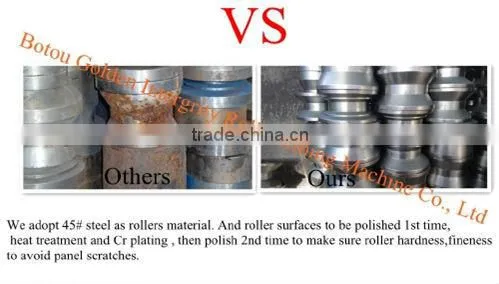

| 14 | Material of roller | High grade 45# forged steel plated with hard chrome plating |

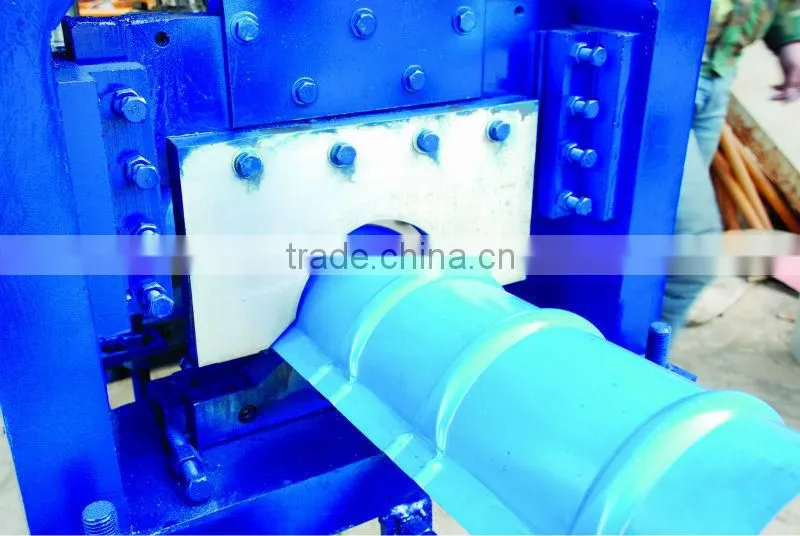

| 15 | Material of cutting | Cr12 mould steel with quenched treatment |
| 16 | Working time | Can be 24 hours |
| 17 | Workers | 1-2 only |

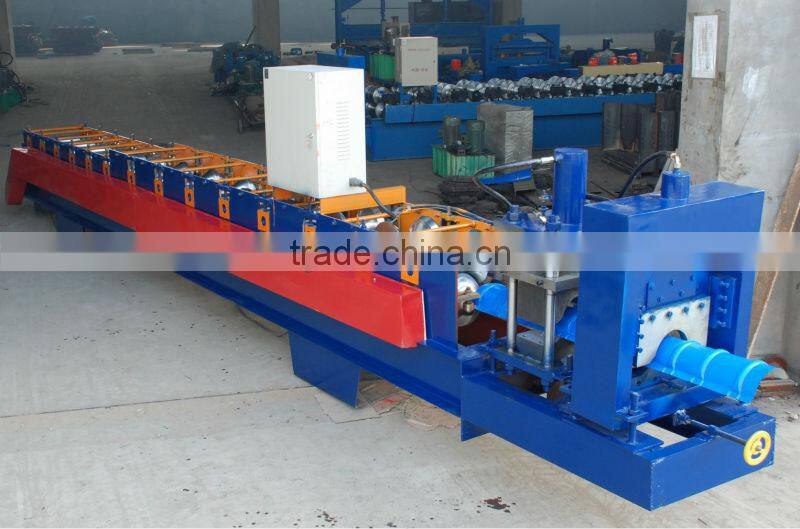

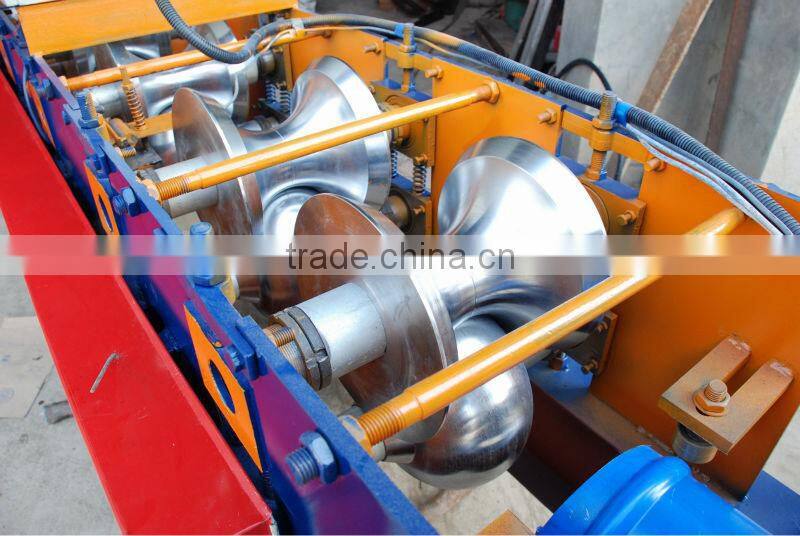

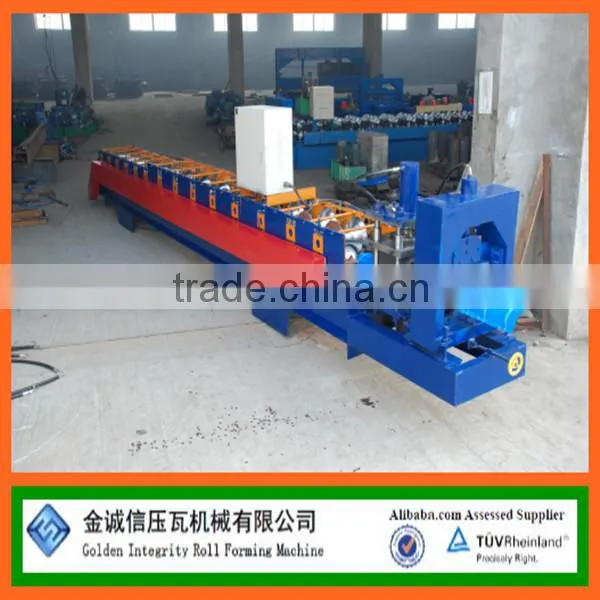

Machine pictures:

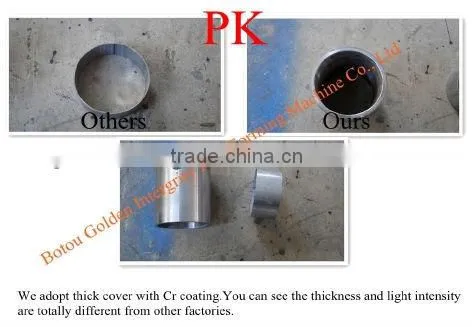

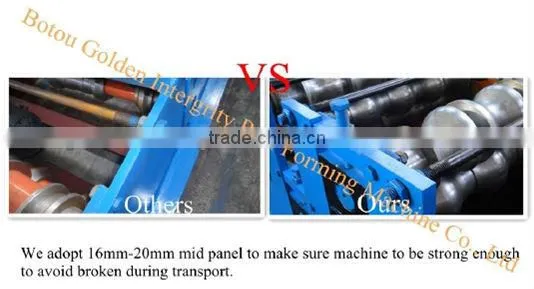

Our quality:
We provide the technical support for whole life;
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free in the warranty period;

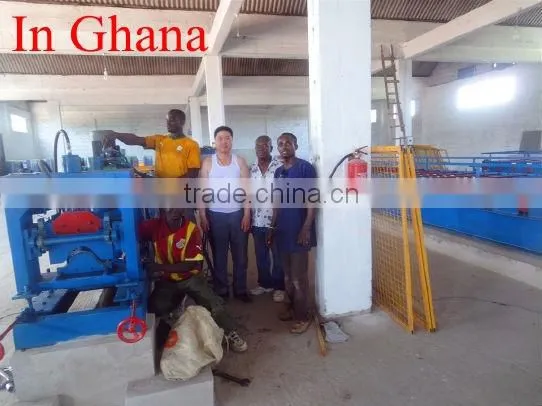

If necessary, engineers available to service machinery overseas.
♣ Payment terms: T/T, L/C, Cash, EXW,C&F,CIF are available.
♣ Delivery: within 30 working days.
♣ Warranty: 12 months since the machine leave seller's factory, we will provide technical support for the machine.
♣ Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to order from us.
♣ Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details:
(a) For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required (how many roll forming stations required are depended on the profile drawing);
(b) For the slitting line and cut-to-length: the material type (HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers (only for slitting line), steel plate required cutting length (only for cut-to-length line);
(C)For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe;
Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
♣ Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer’s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In addition, we provide all of our customers with the after sales-service; it’s free of charge during the warranty period.
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.
We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
