JCX Large Size JCH Iron Sheet Roof Tile Forming Machine
- XINGANG TIANJIN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
0.25-0.8mm Thickness IBR and Corrugated Double Layer Roof Panel Roll Forming Machinery
-
0.25-0.8mm Thickness IBR and Corrugated Double Layer Sheet Roof Tile Roll Forming Machine
-
IBR and Corrugated Double Layer Sheet Roofing Tile Roll Forming Machine
-
0.25-0.8mm Thickness Double Layer Sheet Roof Panel Roll Forming Machine
-
New Type- Double Tiles Sheet Forming Machinery
-
JCX-PLC Control, IBR and Corrugated Double Layer Sheet Roof Panel Roll Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Model Number | joint hidden-1 | |
| Power(W) | 5.5+4kw | Voltage | 380V 50hz three-phase | |
| Dimension(L*W*H) | 11m*1.4m*1.5m | Weight | 3.2t | |
| Certification | CE ISO9001 | Warranty | 1 year, one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
joint hidden roll forming machine,joint rolling machine manufacturers, joint rolling machine
Details of joint-hidden roll forming machine as follows:
1. General performance of the line
1) Material thickness: 0.3-0.8mm
2) Material width: according our customer's requests
3) controlling device:PLC
4) Line speed:8-12 m/min
5) Power supply: 380V/ 50Hz/ 3Phase or as customer's request
6) Total power: 5.5+4 kw
7) Dimension: about 11m*1.4m*1.5m
8) Feeding width: the final data depends on customer's request
9) Number of forming stations: 15-20 pairs
2. Working flow
1) Decoiling: feeding of the material for bottom metal strip.
2) Roll forming: producing the bottom metal strip for roof or wall panel.
3) Raw material feeding table: In order to feeding the mmaterial straightly.

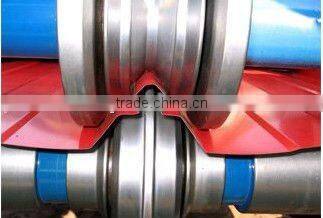

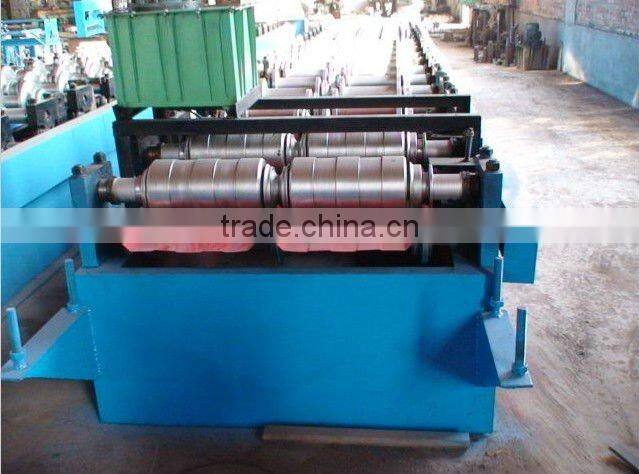

4) Main forming station: shaft material is 45# steel forged,roller material is 45# bearing steel.
5) Cutting system: material of the cutting blade is Cr12MoV,the best cutting distance of the blade is within 1mm.
6) Controlling system: All the production line will controlled by the PLC,realized the full- automatic.
7) The counter: every machine we will provided several extra counters for the damage of the counter.
8) Run-out table:we have different kinds of receiving table,the simple one,the auto-stacker or other designed run out table,we can designed it according your demand.
9) We will provided a whole production line if you have no special requests.
The production of highway guardrail roll forming machine:
♣ Payment:T/T,L/C,cash.
♣ Payment terms:EXW,C&F,CIF are available.
♣ Delivery:within 30 working days.
♣ warranty:In correct operation and maintance,the machine is one year guarantee since leaving the seller's factory,and we will provide technical support for the machine.

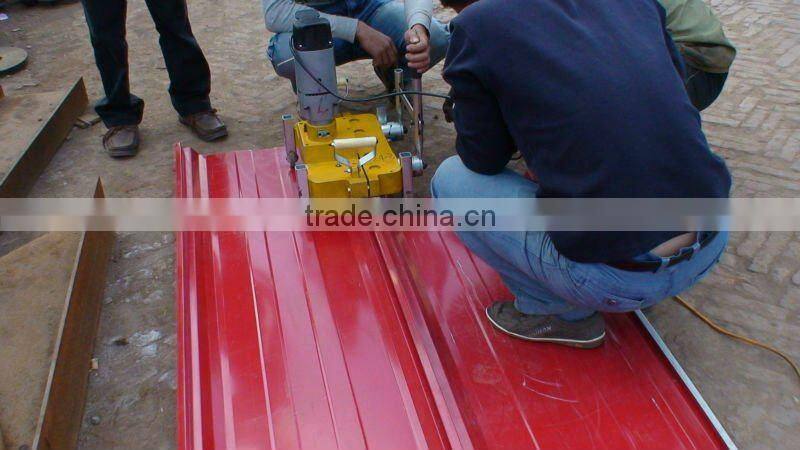

♣ Installation:If buyer needed,the seller will send one or two technician to the buyer's factory to install & testing the machine.
Our machine advantage:
Our customers:

We has been established in 1995 as a professional manufacturers of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more then 10 years of experiences and strict quality control, our products meet International Standard. We are the leading manufacturer and reported of roll forming machine in China. We manufacture various kinds of roll forming machine for producing the following products. Such as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purlin, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe...etc.
Our products, with rational structure, good looking and duration, have been exported to Uganda, Bolivia,Uruguay, Nigeria, Ghana,Vietnam, Myanmar, Russsia, Kazakhstan,Turkmenistan, India, Philippines ...etc.
Welcome to visit our factory! We shall create a beautiful future with you by our management tenet " top quality, credit based".
