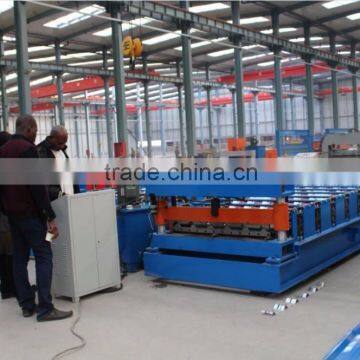

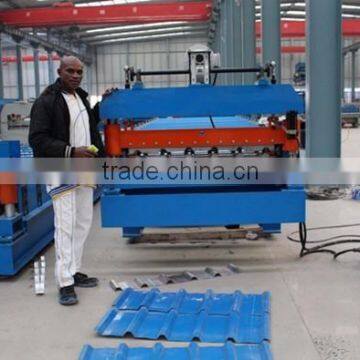

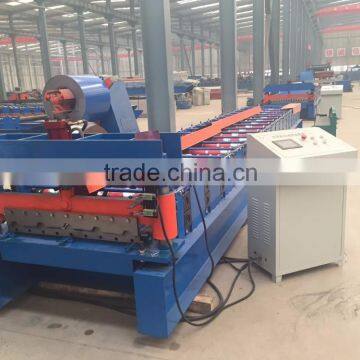

Welcome to view JCX 840 colored steel roll forming machine
according to customers requirements ,costom roll forming machine
1.Specification:
Dimensions |
6500*1500*1500mm |
Large frame |
350H steel |
Rolling wheel |
Forging 45# steel |
Diameter of roller |
72mm |
Roller station |
13 rows |
Main power |
3kw with reducer |
Rolling speed |
8-12m/min |
Rolling thickness |
0.2-0.8mm |
Feeding width |
1000mm |
Machine weight |
2.5T or so |
Chain |
1 inch |
Middle plate |
14mm |
2.Automatic system(The PLC can be designed according to customers' requirement)
Pump station |
3kw |
PLC |
Panasonnic |
Transducer |
Twiwan"Delta" |
Encoder |
Wuxi's "REP"or "XINYA" |
Switch |
"CHINT" or "DELIXI" |
3.Component:
1) man-made manual decoiler-----1 set
2) Main roll forming machine--------1 set
3) Controlling system------------------1 set
4) Hydraulic system--------------------1 set
Technical specification of every parts
840 trapezoidal metal Roof tile Forming Machine
The machine can make Aluminum coil,steel coil, Galvanized steel coil .
Our distribution market
Our certification:
Our company:
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.
We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details
For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line)
For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing)
For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe
Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period
EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
