Crash Barrier Highway Guardrail Forming Machine With 10-12m/Min Speed

Specifications

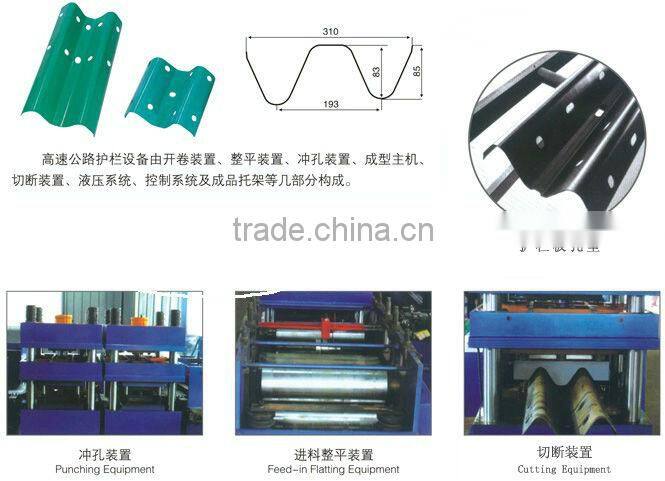

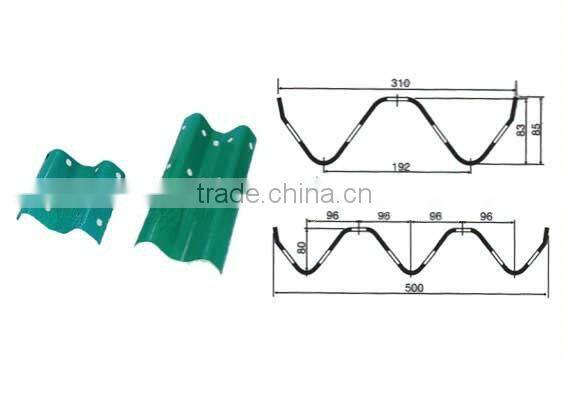

500 Highway guardrail roll forming machine
superior quality


high efficiency
world-class techonology
pass CE

1.Leak frame load-bearing:4T

2. Rack: welding with 300H steel

3. The form of forming machine guiding filling: side skip

4.The form of forming machine: chain drive with wallboard type, the thickness of wallboard is 12mm.

5. Diameter of Shaft is: 72mm

6.Chain: 0.6 inch single row

7. Main motor power:3kw double pole reduction box

8. Forming Speed: 8m/min

9. Number of tracks: 11 tracks

10. Roller material: high grade 45#steel

11 Hydraulic station power: 3kw

12 Hydraulic station oil pump: gearpump

13 Cutting type: hydraulic cut

14 Forming Cutting blade: Cr12

15 Heat treatment on cutting blade: HRC58°-60°

16 Thickness of coil sheet: 0.3-0.8mm

17 Coil width of material: 1000mm

18 Index error of length: ±2mm

19 Controlling system: PLC

20 Voltage: 380V 3phase 60 HZ or at buyer’s requirement

Welcome your company to my company! From the

selection, production to delivery of the user actual production, we will provide you with quality service throughout .  our reputation comes from your trust.

Hope to received your inquiry at an early date .
