Specifications
Welcome to review our roll forming machinewe are manufacture
Customers decide
Saving time and cost
complete service
Welcome to view Highway Guardrail Roll Forming Machine
according to customers requirements ,costom roll forming machine

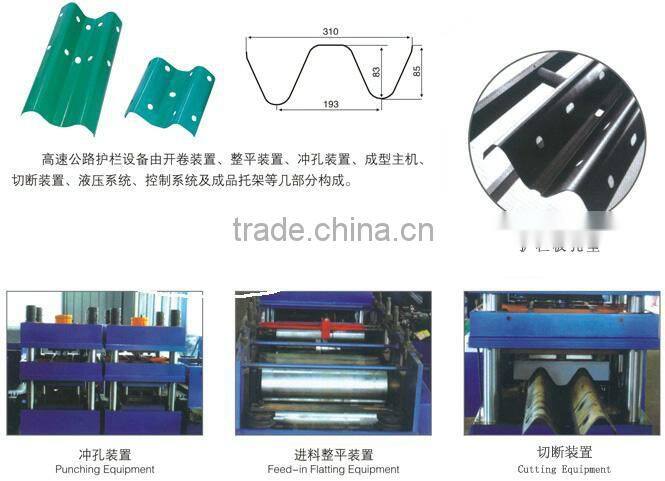

panel picture
1.Technical parameters:
1. Suitable material: Q235A galvanized steel, width: 440mm, thickness 3.0mm
2. Forming speed: 10—12M/min
3. Forming roller station: 15 stands
4. Leveling roller station, 7 stands
5. Guiding and feeding roller, 4 stands
6. Roller material: Gcr 15 bearing steel after treatment, HRC58-60
7. Roller shaft material: No.45 high grade material after treatment
8. Roller shaft dimension: 100mm
9. Main motor power: 22KW
10. Transmission: by chain
11. Leveling rollers motor power: 2.2KW
12. Hydraulic motor power: 11kw, hydraulic pressure: 20Mpa
13. Punching and cutting type: hydraulic driven, punching, cut after forming,
14. Shear material: Gr12
15. PLC control system,Mitsubishi FX-IS series
16. Cut to length, 10m±2mm
17. Frequency, Dan Fuss
18. Control cabinet, xinjie OP320A
19. Rack material, 400 type steel
20. Boundary dimension, (L) 12.8m×(W)2.3m×(H)1.6m (theoretical evaluation result, for reference only.)
21. Gross weight, 15000kg (theoretical evaluation result, for reference only.)
15 Stands Highway Guardrail Forming Machine With Chain Transmission
Spare parts and special tools(according to final packing list)
Items | Spare parts | Type | Quantity | Remarks |
1 | Coupling | 1piece | ||
2 | Slot type screwdrive | 1piece | ||
3 | Philip' type screwdrive | 1piece | ||
4 | 3-14 socket head wrench | 1 set | ||
5 | Oilers | 1piece | ||
6 | Adjustable spanner | 1.09 inch | 1piece | |
7 | Adjustable spanner | 1.308 inch | 1piece | |
8 | Seal rings | 1set |
2.Cmponents of line:
•Noted:all the parameters can be changed as the customer's requirement,and different machine.
specialized manufacturer of roll forming machine,any requests just mail me.

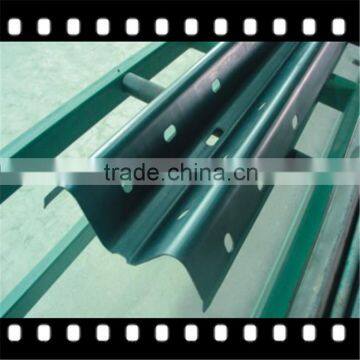

real photo of machine:
| |
|
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Material of main equipment:
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
Certification:
Our company:
EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
