Home > Products > Highway Guardrail, Car Panel, Anode Plate Former > Trapezoidal Profile high quality Metal Roofing Sheet Roll Forming Machine gInnovative Roller Shutter Door Roll Forming Machine

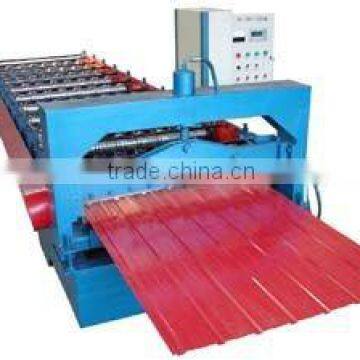

Trapezoidal Profile high quality Metal Roofing Sheet Roll Forming Machine gInnovative Roller Shutter Door Roll Forming Machine
Negotiable
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- tianjin new port
- T/T
You May Like
Product Details
| Type | Tile Forming Machine | Tile Type | Colored Steel | |
| Use | Roof | Place of Origin | Hebei, China | |
| Brand Name | JCX |
Product Description
Specifications
large span roll forming machine1. Nice appearence.2. Low noise.
3. High efficiency.
4. Good quality.
large span roll forming machine:
| Suitable to process | Steel plate |
| Width of the plate | 1000mm/1200mm/1250mm |
| Rollers | 9-11rows |
| Dimensions | 5.8*1.55*1.51m |
| Power | 4kw+4kw |
| Thickness of the plate | 0.3-0.7mm |
| Productivity | 8-10m/min |
| Diameter of the roller | ¢70mm |
| Weight | About 3.4T |
| Voltage | 380V 50Hz 3phases |
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
