Specifications
metal dust shield making machine1.High Effciency
2,Little error
3,Quality is stable

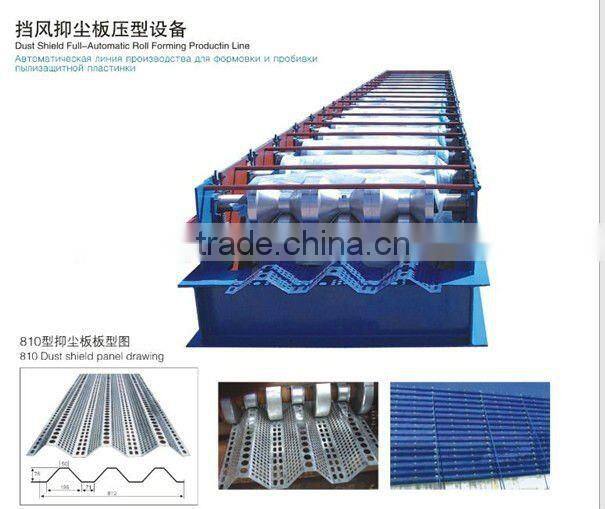

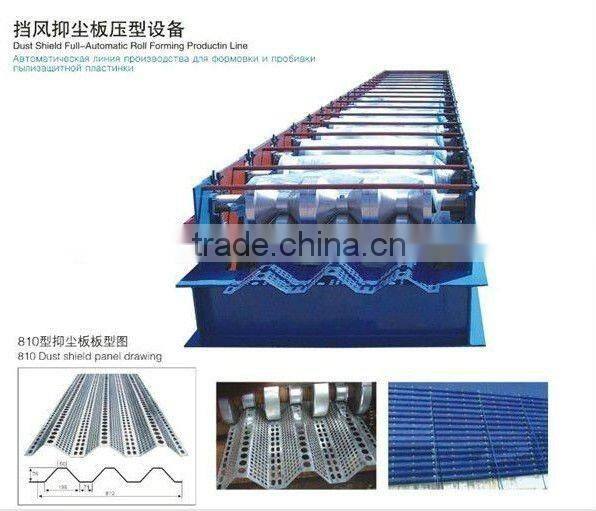

metal dust shield making machine
1.Introduction:

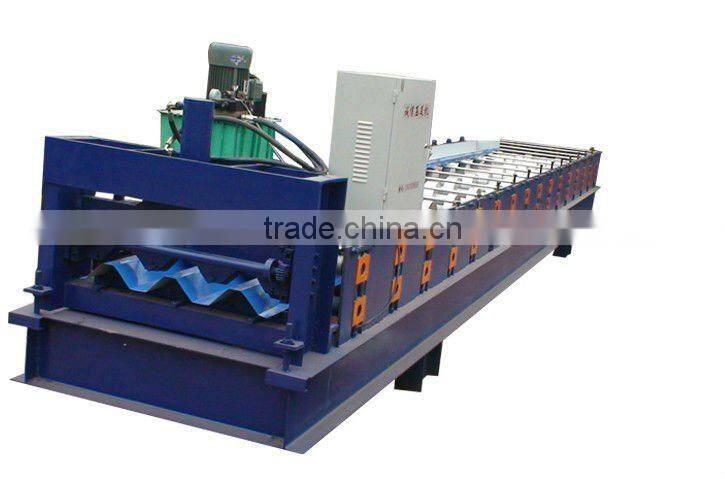

The roll forming machine, adopting roll forming method, can produce beautiful and strong panels which are extensively used in wall construction or outdoor decoration. This type of machine possesses advanced and innovative technology that can provide convenient roller change. It can be equipped with PLC control and touch screen.

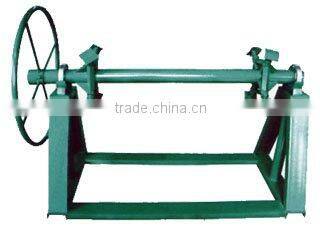

The machine consists of un-coiler and its base, coil sheet guiding equipment, film covering device, roll forming system, post cutting equipment, hydraulic station, controlling system, and supporter table.
2.Dimensions:
Technical Parameters:
Material Spec: colored steel sheet; galvanized steel sheet
Thickness of Coil Sheet: 0.3-1.2mm
Main Motor Power: 4 kw
Forming Speed: 10-12m/min

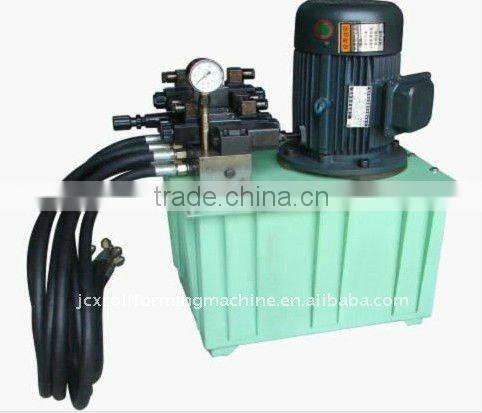

Hydraulic Station Power: 3kw
Quantity of Stand: about 14 or 16 stands
Hydraulic Pressure: 10-12mpa
Controlling System: PLC
Index Error of Length: 10m+2mm
Total Weight: about 6 tons
Voltage: 380V 3phase 60 HZ or upon buyer's requirement
3.Material:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness of 0.05mm
Active shaft material: high grade NO.45 carbon wrought steel at Φ 72mm
Cutting blade: Cr12 mold steel with quenched treatment.
4.Remarks:
1.Delivery date: 30days after receiving deposit.
2.Packing: Main machine is nude,the computer control box is packed by wooden carton box.
3.Sales clause: you should pay 30% of the total payment on the order day, after signing, you can send person to inspect goods, then payoff the whole payment before shipping out the goods.
4.Guarantee:In correct operation and maintenance, the machine is one year guarantee since leaving the seller’s factory.
5.Installation: If buyer need, the seller will send one or two technician to the buyer's factory to install & testing the machine, the buyer will assist the seller’s technician to get the visa and pay for the two-way flight tickets and local accommodation, visa cost. by the way , buyer pay 50USD/day for technician extra.
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
•Noted:all the parameters can be changed as the customer's requirement,and different machine.
