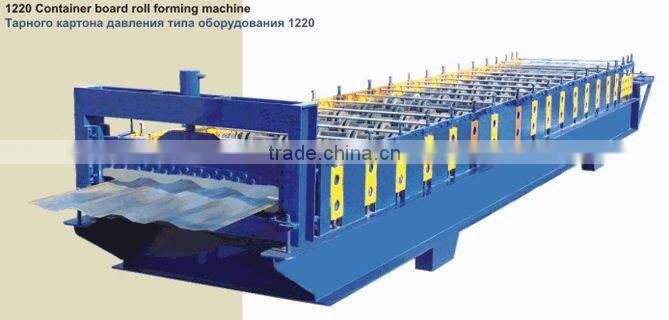

JCX 1220 Container Board Roll Forming Machinery

1.Technical specification

 Power supply: 380V, 3 phases, 50 or 60 Hz as user need.

 Feeding thickness: 0.3-0.8mm

 Feeding width: 1000-1250mm

 Main power: 5KW

 Pump power: 5kw

 Forming speed: 10-12m/min

 Roll station: 11-18 groups

 Hydraulic pressure: 10-12Mpa

 Cutter material: Cr12

 Roller material: Cr12

 Material of shaft: 45# steel with heat treatment

 Diameter of shaft: 72-90mm

 Control system: PLC delta inverter

2.Processing technique and deployment

Flow chart:

Decoilling the sheet--sheet guilding--film covering--roll forming--measure length--cutting the panel--panel to the supporter

(1) man-made uncoiler (max capacity 5000kg)

(2) Roll-Forming:

Steps:10-11steps Roller Material: 45# steel

Voltage: 3phase/80V/50-60Hz. line speed:8-10m/min;

Rolling chromium thickness:0.05 mm

(3) blade

Stop to cut , Post cut cutting length tolerance: ±2mm

Cutting tool material: GCr12 with quenched treatment 60-62°C

(4) Hydraulic System

(5)control system :

It adopts PLC to control. The target piece length is adjustable and digit of it can be adjusted

Computed mode has two modes: automatic and manual one.

(6) receiving table:

1. T/T , L/C 2. 30% Advanced pament first and the lest paid after received loading bill copy.

All the packaging of machine above can be arraged as customers' requirement.
