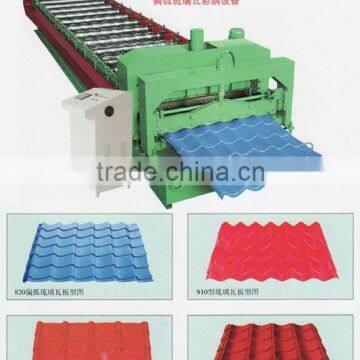

High Quality Automatic Glazed Tile Making Machine

Specifications

tile making machne  Main technical parameters:
1. Rack: Using 300H steel welding
2. Forming Machine-driven feeding frame forms: lateral slide-style
3. Forming Machine Type: wall-type chain drive. Wall thickness of 16 mm.
4. Shaft Diameter: 75 mm
5. Chains: 1 inch single-row
6. Forming Motor Power: 4KW
7. Forming Machine speed: 1.0m/min
8. Forming Machine Road Number: 12
9. Roll Material: high quality 45 # steel Duan playing pieces
10. Hydraulic station motor: 4kw °
11. Rolling thickness :0.3-1 .0 MM
12. Materials Expand Width: 1200mm
13. The computer use of PLC, Taiwan and Taiwan reached
14. The machine weighs about 4 tons, length of 7 meters wide and 1.45 meters, 1.2 meters high.

We can also make the  special size as the client's request!

COMPANY:Botou Golden Integrity Roll Forming Machine Co., Ltd.

Website:
Tel:86-0317-8185399  Fax:86-0317-8193636

Address:Nancang Street, Botou City, Cangzhou, Hebei, China (Mainland) Zip: 062150
