Specifications
easy controlhigh efficiency
low noise
pass CE
metal roofing roll forming machine
standing seam metal stamping roof machine
Technical Parameters:
Material Spec: colored steel sheet; galvanized steel sheet
Thickness of coil sheet: 0.3-0.8mm
Main Motor Power: 4 kw
Forming Speed: 10-12m/min
Hydraulic station power: 3kw
Quantity of stand:about 14 or 16 stands
Hydraulic pressure:10-12mpa
controlling system: PLC
Index error of length:10m+2mm
Total weight: about 6 tons
Voltage: 380V 3phase 60 HZ or at buyer's requirement
Material of main equipment
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with
thickness 0.05mm
Active shaft material: high grade NO.45 carbon wrought steel at Φ 72mm
Cutting blade: Cr12 mould steel with quenched treatment.

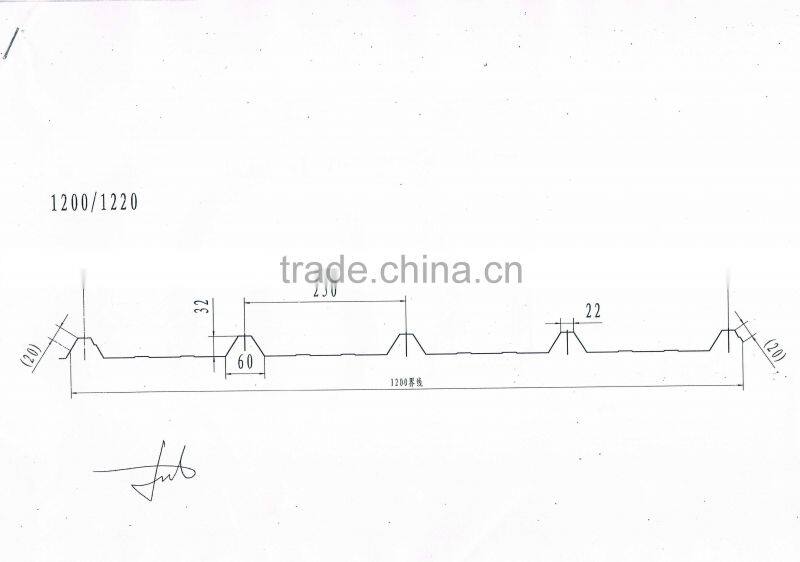

metal roofing roll forming machine PROFILE DRAWING
metal roofing roll forming machine
No. |
Item |
Description |
1 |
Forming Speed |
8-15m/min(not including cutting time) |
2 |
Roller stations |
15stations &15 stations |
3 |
Material of Roller |
GCr12 |
4 |
Material of Main Shaft |
45# steel finishing machining and then slack |
5 |
Material of Shaft |
70mm 45# steel forged |
8 |
Main Power |
Driven Motor Power 3kw Hydraulic Station Power 4kw |
9 |
Customer requirment |
Sheet profile as your drawing |
10 |
Dimension(L*W*H) |
7500mm*1500mm*1500mm |
11 |
Material of Cutter |
Gcr12 |
12 |
Driving Mode |
single chain 1 inch |
13 |
Material Thickness |
0.15mm-0.8mm |
14 |
Power Supply |
380V, 60HZ, 3 PHASES |
15 |
Cutting Accuracy |
±2mm |
16 |
Hydraulic Station |
12.0 Mpa |
OUR advantage
our certafication

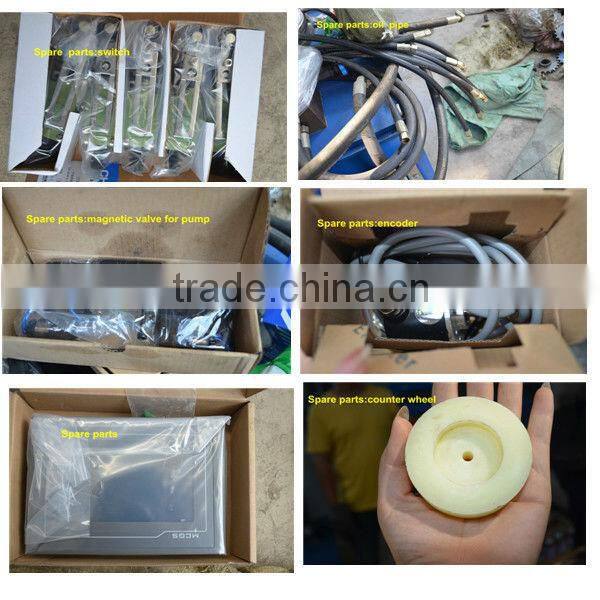

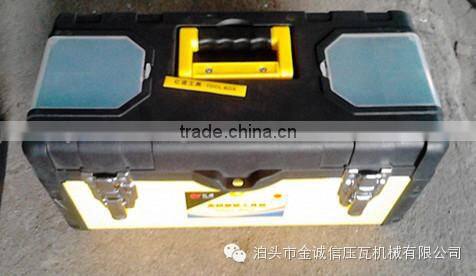

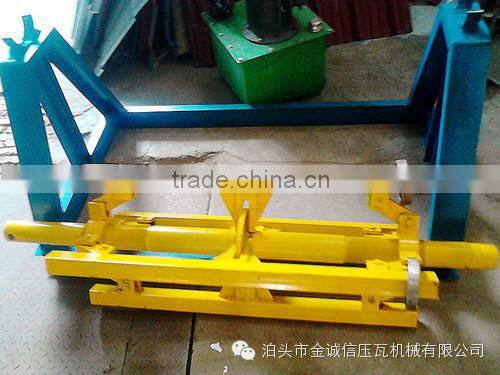

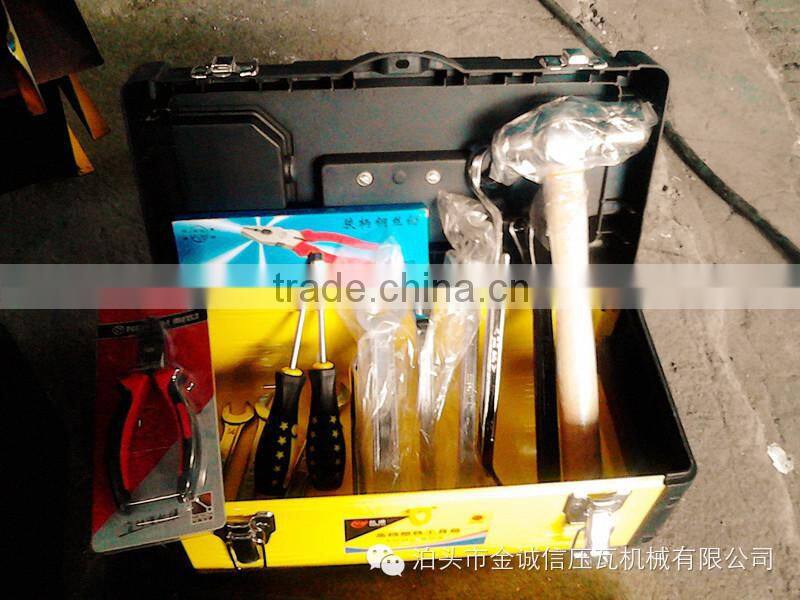

our metal roofing roll forming machine accessory part
we are together with customer

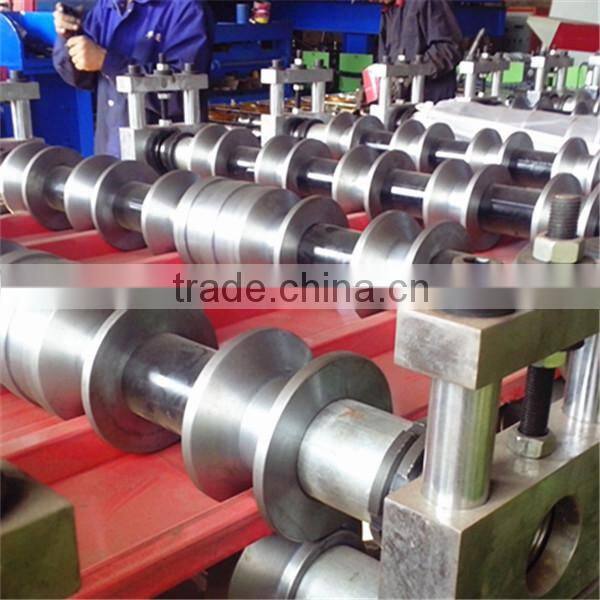

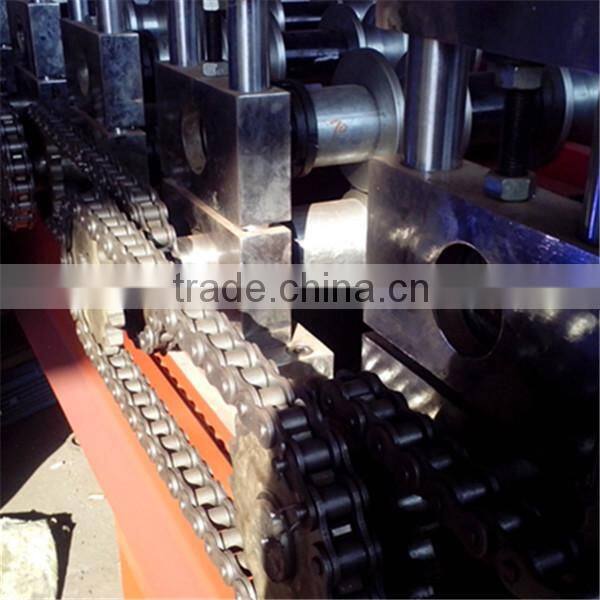

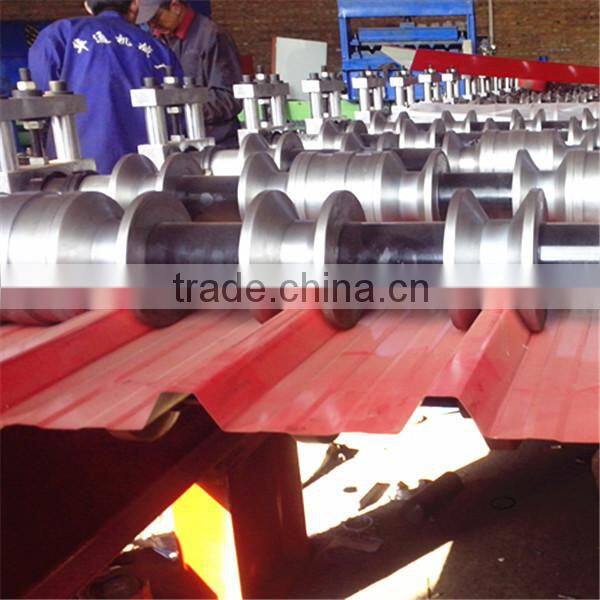

machine pictures
