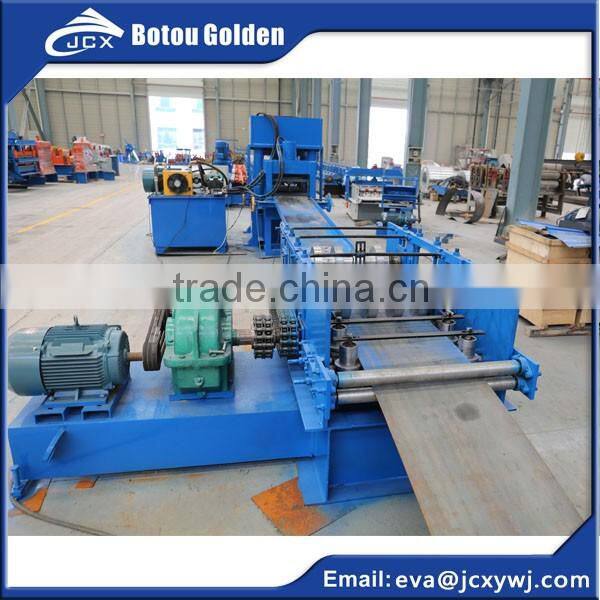

corrugated beam guardrail forming machine
1. Suitable material: Q235A galvanized steel, width: 440mm, thickness 3.0mm
2. Forming speed: 10—12M/min

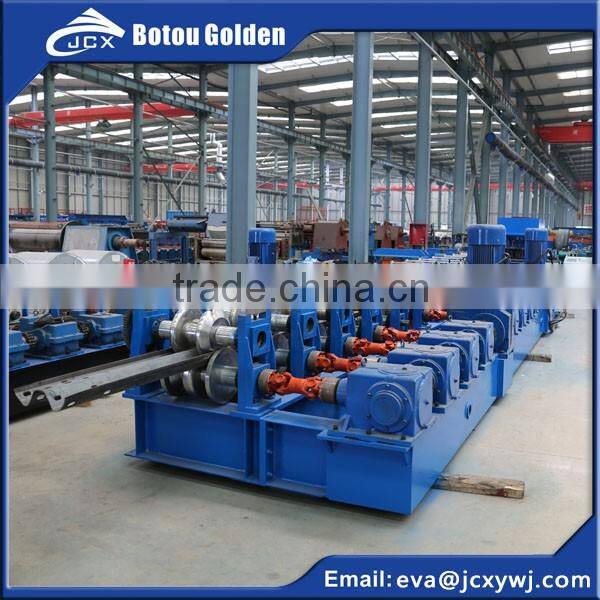

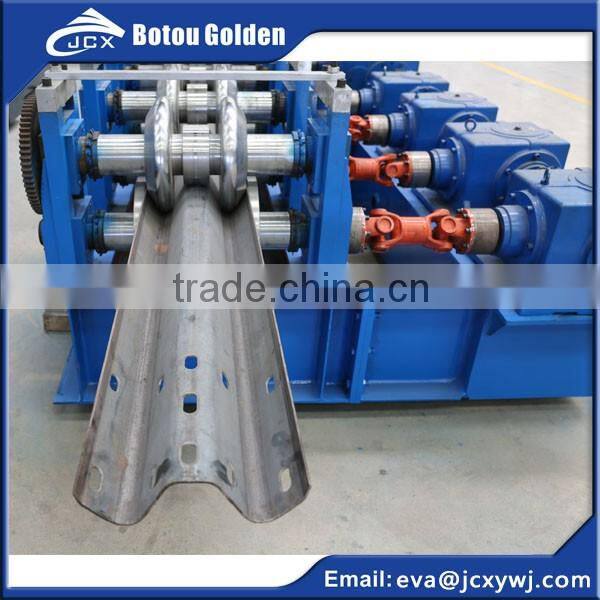

3. Forming roller station: 15 stands
4. Leveling roller station, 7 stands
5. Guiding and feeding roller, 4 stands
6. Roller material: Gcr 15 bearing steel after treatment, HRC58-60
7. Roller shaft material: No.45 high grade material after treatment
8. Roller shaft dimension: 100mm
9. Main motor power: 22KW
10. Transmission: by chain
11. Leveling rollers motor power: 2.2KW
12. Hydraulic motor power: 11kw, hydraulic pressure: 20Mpa

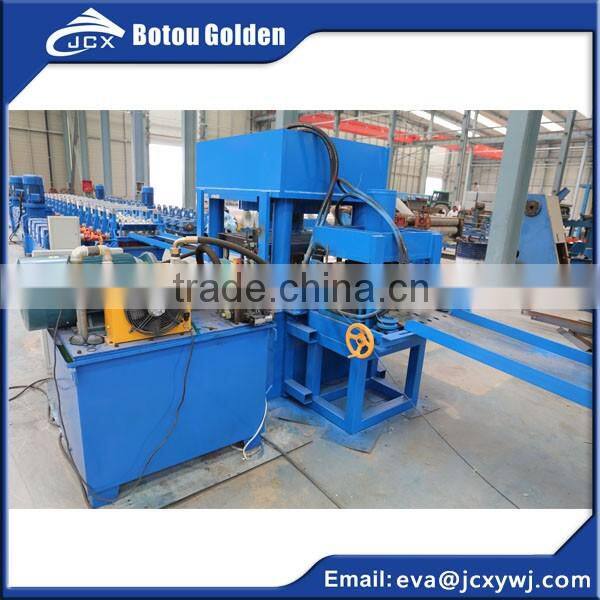

13. Punching and cutting type: hydraulic driven, punching, cut after forming,
14. Shear material: Gr12
15. PLC control system,Mitsubishi FX-IS series
16. Cut to length, 10m±2mm
17. Frequency, Dan Fuss
18. Control cabinet, xinjie OP320A
19. Rack material, 400 type steel
20. Boundary dimension, (L) 12.8m×(W)2.3m×(H)1.6m (theoretical evaluation result, for reference only.)
21. Gross weight, 15000kg (theoretical evaluation result, for reference only.)
Spare parts and special tools(according to final packing list)
Items |
Spare parts |
Type |
Quantity |
Remarks |
1 |
Coupling |
|
1piece |
|
2 |
Slot type screwdrive |
|
1piece |
|
3 |
Philip' type screwdrive |
|
1piece |
|
4 |
3-14 socket head wrench |
|
1 set |
|
5 |
Oilers |
|
1piece |
|
6 |
Adjustable spanner |
1.09 inch |
1piece |
|
7 |
Adjustable spanner |
1.308 inch |
1piece |
|
8 |
Seal rings |
|
1set |
|
Warranty, Year warranty
During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters.) And provide technical support for life-long.
Other descriptions,
1. Accompanied with working instructions and a CD. Please operate as required.
2. Machine only to be shipped after the inspection is passed.
4. In Two of 40 foot container.
Crash bARRIER machine maker
W beam highwat guardail roll forming machine,
Road guardail making machine
