Welcome to review our roll forming machineskillful manufacture
latest technology
excellent quality
complete service
Welcome to view JCX large-span no-grider roll forming machine
according to customers requirements ,costom roll forming machine
reliable quality with large-span no-grider roll forming machine for Africa
| Production Description | ||||
| ||||
| Details show | |

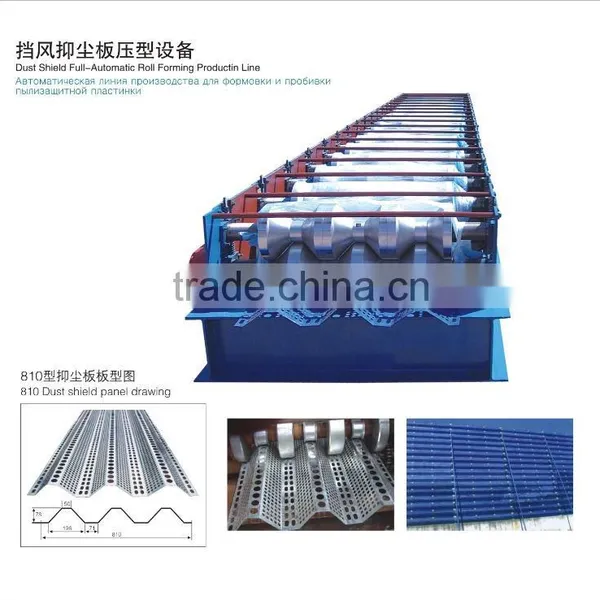

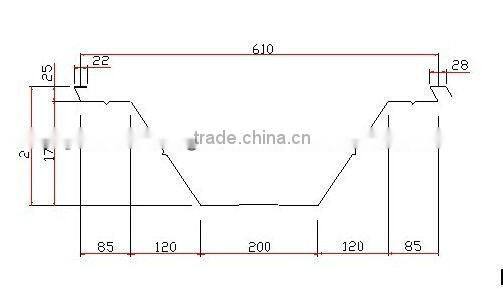

Plate picture:
1.Technical specification Size: 8900mm × 2250mm × 2300mm Total Weight: about 14KG Main Motor Power: 18.5KW forming power is 7.5kw ; bending power is 4.0kw; cutting power is 4.0kw; conical power is 3.0kw Working Speed: Straight sheet: 15m/min Arch sheet: 13m/min Sewing: 6m/min Material of rollers: 45# steel, quenched HRC 58-62 Material of roller shafts: 45# steel, quenched HRC 58-62 Material of cutting blade: Cr12 steel (Taiwan Airline Technique) Step of rollers: 14 steps Feeding Width: 914mm Effective Width: 610mm Thickness of the coil: 0.8-1.5mm Gear/Spoket driving: 13 stations to form Electric Standard: 380V / 50 HZ / 3 PHASE Type of cutting: Roll-formed and length-set cutting Ship Container: 40HC x 1 Operating factor of the panel: 66% Proper span: ≤38m PLC Type:OMRON, Japan 2.machine chart

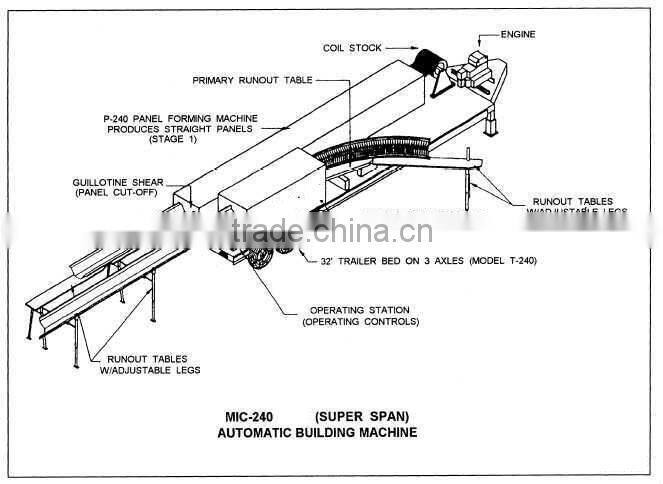

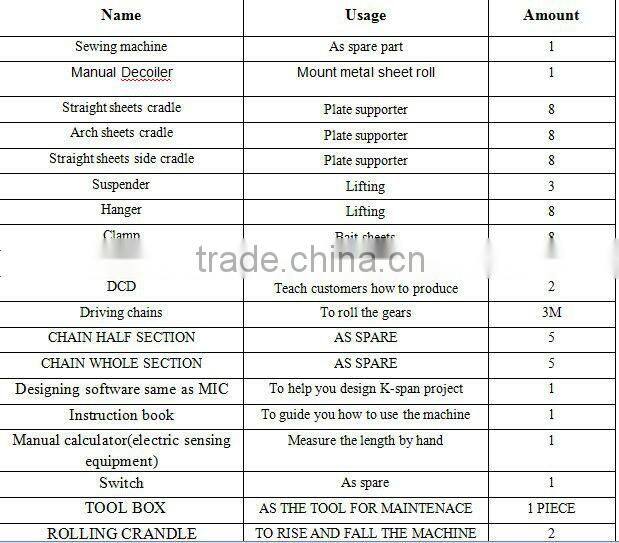

3.Components of line:

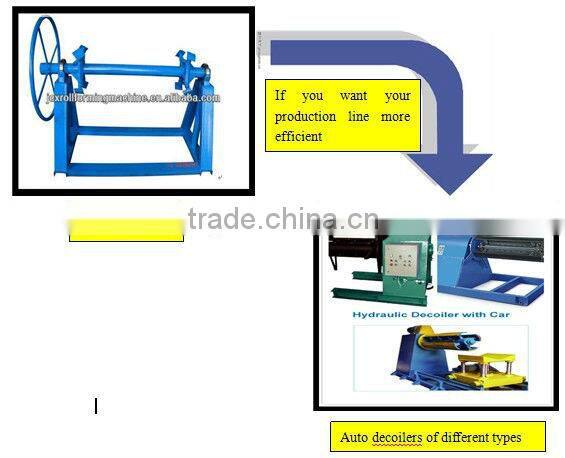

(1)man-made uncoiler (max capacity 5000kg)

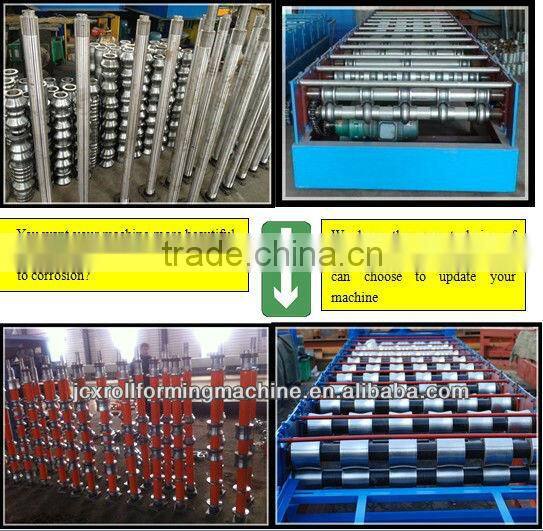

(2) Roll-Forming: Steps:10-11steps Roller Material: 45# steel Voltage: 3phase/80V/50-60Hz. line speed:8-10m/min; Rolling chromium thickness:0.05 mm
(3) blade It adopts hydraulic drive and automatic location to decide the dimention and cut the target products. Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine. Stop to cut , Post cut cutting length tolerance: ±2mm Cutting tool material: GCr12 with quenched treatment 60-62°C

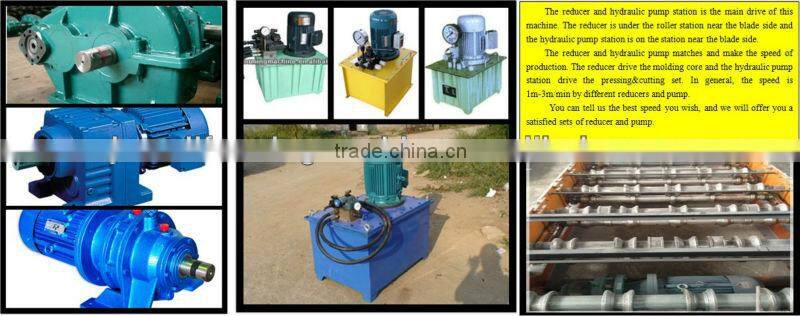

(4) Hydraulic System It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.

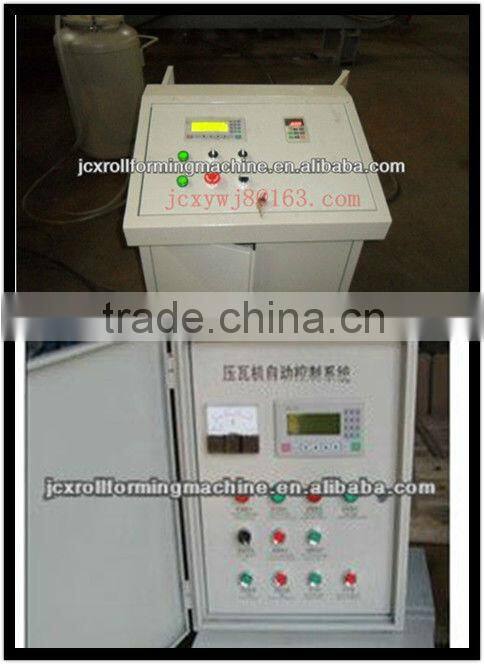

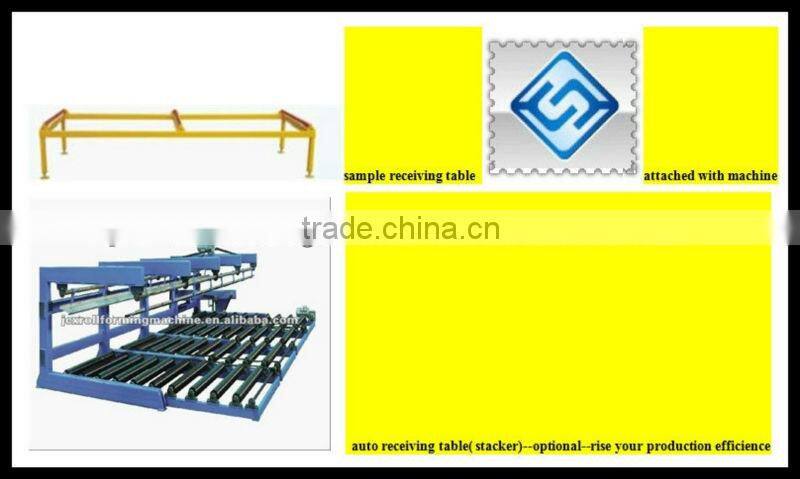

(5)control system : It adopts PLC to control. The target piece length is adjustable and digit of it can be adjusted Computed mode has two modes: automatic and manual one. (6) receiving table:
|
| Application | |
|
| Shippment | |
|
| Payment |
1. T/T , L/C 2. 30% Advanced pament first and the lest paid after received loading bill copy. |
| Packaging(General Container) | ||
All the packaging of machine above can be arraged as customers' requirement.
|
| Service | ||
|
| Certification |
|
EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
