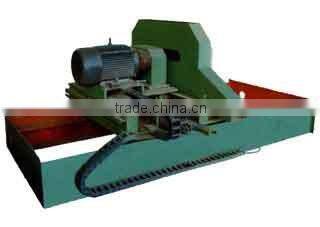

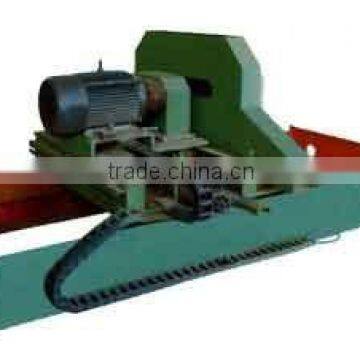

C Type Purlin Forming Machine

Specifications

Detailed Product Description

Introduction:

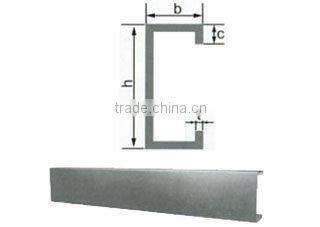

C shape praline forming machine can produce many sizes of C shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C shape forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system.

Main Technical Specification:

1. Passive leak: manual up tight, passive leak
2. The bearing of decoiler: 5T
3. Rack: The thickness of  middle plate is 20mm which adopting 400H steel welding
4. The form of Forming Machine-driven feeding frame: slidewise roller

5. Forming Machine Shape: wall-type chain drive

6. Shaft Diameter: 80 mm solid shaft

7. Chain: 2 inch

8. Forming Machine Motor Reducing Qear drive

9. Forming Machine line speed: 12-15m/min

10. Forming Machine Tracks Number: 7 roller flattening, 12 roller molding

11. Roll Material: bearing steel

12. Roll heat treament : HRC58°-60

13. Hydraulic station motor: 15kw

14. Hydraulic Oil Pump: Tailwan JinYong Gear pump

15. Cutting method: Flying saw cut, mesopore is set freely

16. Flying saw motor : 15KW

17. Rolling thickness :1.5-3.0 mm

18. Accuracy of fixing length: ± 2mm

19. The computer is adopted with PLC, Japan's Panasonic

Usually, our roll forming machine includes hydraulic decoiler,sheet

guiding equipment, pre-cutting device, film device,roll forming system,

cutting equipment, hydraulic station, electric controlling system and

supporter.

Working flow:

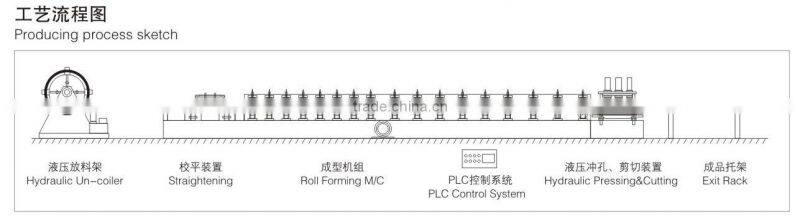

Decoiling the sheet→sheet guiding→roll forming→measure length→cutting the panel→panel to supporter

The manufacturer cycle of equipment is 15 days.

The length of main machine is 9.8m, the width is 1.1m, and the height is 1.3m.
