Specifications
C stud forming machine has feasures of1. nice appearence
2.high efficency
3.low noize
4. easy control.
Suitable material | color steel sheet | |
Thickness of raw material | 0.5—0.6mm | |
Yield strength of material | 235Mpa | |
Working Speed | about 2000-3000mm/min | |
Step distance | adjustable according to requirement (>=250mm) | |
Power Requirement | Main motor power: | 5.5Kw (Depend on final design) |
Hydraulic station power: | 5.5Kw (Depend on final design) | |
Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) | |
Controlling system | Mitsubishi PLC & converter | |
Machine's size | about 18m×1.5m× 1.4m (Depend on final design) | |

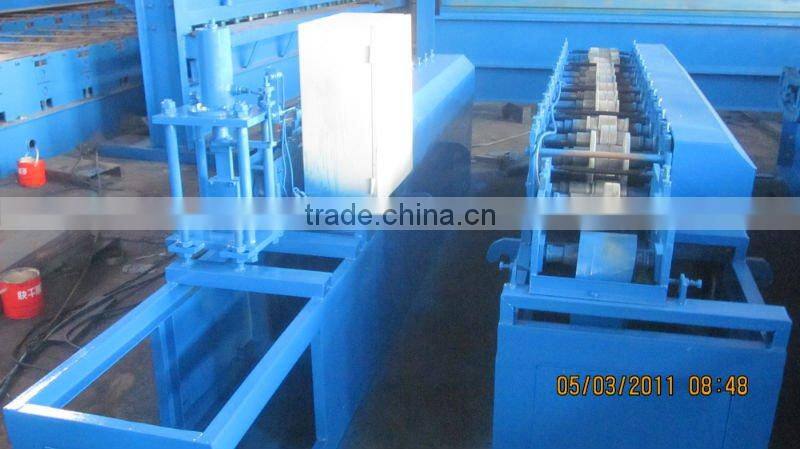

C stud forming machine
sheets made by this machine
Processing technique and deployment
Processes: Manual decoiler—Roll forming machine—PLC system—Hydraulic system-Post cut—Stacking
Components of line:
NO | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | PLC Control system | set | 1 |
4 | Hydraulic system | set | 1 |
5 | Post cut | set | 1 |
6 | Stackinig | set | 1 |
