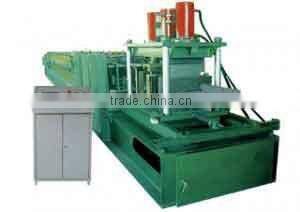

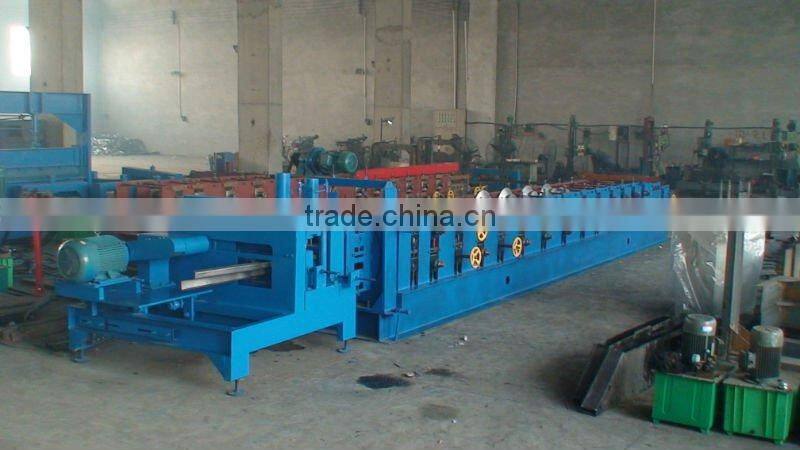

Z purlin roll forming machine
- 20 Set / Sets per Month
- Tianjin new port
- T/T
Product Details
Type: | Tile Forming Machine | Tile Type: | Steel | Use: | Roof |
Place of Origin: | Hebei, China | Brand Name: | JCX | Model Number: | Z |
Product Description
Specifications
purlin roll forming machine:The machine rolling Z-purlin has good compression bending performance,good flatness, automatic fixedZ shape praline forming machine can produce many sizes of Z shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, Z shape forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system.
Working flow:
Decoiling the sheet→sheet guilding→coil strip leveling→roll forming→punching for horizontal hole→punching for vertical hole→measure length→cutting the panel→panel to supporter
The manufacturer cycle of equipment is 15 days.
The length of main machine is 9.8m, the width is 1.1m, and the height is 1.3m.
MACHINE COMPONENTS
(1) Manual Un-coiler 1 set
(2) Leveling Device 1 set
(3) Roll-Forming M/C 1 set
(4) Hydraulic cutting (with four cutting mould) 1 set
(5) PLC Control System 1 set
(6) Product rack (un-powered) 1 set
TECHNICAL SPECIFICATION
(1) Manual Un-coiler:
Un-powered; single head; max. Capacity: 3000kg;
Coil inner-diameter: 508mm
(2) Leveling Device
It used for making the material flat before feeding into the roll forming machine.
(3) Roll-Forming M/C
Steps 13 Material of Roller GCr 15; Voltage:380V/50Hz
Shaft diameter 80mm
Roller material 45 steel(Cr coating)
Total power 4.5 KW
(4) Hydraulic Cutting
Stop to cut ,Post cut Cutting tool material:Cr12,
tolerance of the cutting length 4mm
It has four cutting mould with the line.
If the customer wants to more cutting mould, he has to pay for the extra moulds.
(5) PLC Control System
Using Mitsubishi PLC Control the quantity, length automatically, LCD screen,
Option Hydraulic un-coiler
Hydraulic system to expand coil inner hole;
Frequency Inverter to regulate turning speed,
Automatic stop device;Load capacity = Max.3Tons;

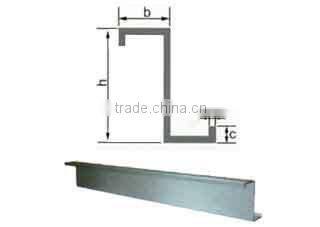

Z Purlin Dimensions Table | |||||
Model | Section Sizes(mm) | Hole Distance(mm) | |||
h | b | c | t | ||
Z100 | 100 | 55 | 20 | 2.0-3.0 | 40 |
Z120 | 120 | 55 | 20 | 2.0-3.0 | Changable |
Z140 | 140 | 55 | 20 | 2.0-3.0 | Changable |
Z150 | 150 | 67 | 20 | 2.0-3.0 | Changable |
Z160 | 160 | 67 | 20 | 2.0-3.0 | Changable |
Z180 | 180 | 67 | 20 | 2.0-3.0 | Changable |
Z200 | 200 | 67 | 20 | 2.0-3.0 | Changable |
Z250 | 250 | 78 | 20 | 2.0-3.0 | Changable |
Z280 | 280 | 78 | 20 | 2.0-3.0 | Changable |
Z300 | 300 | 78 | 20 | 2.0-3.0 | Changable |
Main Technical Specification:
- Passive leak: manual up tight, passive leak
- The bearing of decoiler: 8T
- Rack: The thickness of middle plate is 18mm which adopting 400H steel welding
- The form of Forming Machine-driven feeding frame: sidewise roller
5. Forming Machine Shape: wall-type chain drive
6. Shaft Diameter: 80 mm solid shaft
7. Chain: 2 inch
8. Forming Machine Motor Reducing Qear drive
9. Forming Machine line speed: 7-10m/min
10. Forming Machine Tracks Number: 7 roller flattening, 12 roller molding
11. Roll Material: bearing steel
12. Roll heat treament : HRC58°-60
13. Hydraulic station motor: 4kw
14. Hydraulic Oil Pump: Tailwan JinYong Gear pump
15. Cutting method: Flying saw cut, mesopore is set freely
16. Flying saw motor : 11KW
17. Rolling thickness :1.0-3.0 mm
18. Accuracy of fixing length: ± 2mm
19. The computer is adopted with PLC, Japan's Panasonic
Guarantee:
In correct operation and maintenance, the machine is one year guarantee since leaving the seller’s factory.
Installation:
If buyer need, the seller will send one or two technician to the buyer’s factory to install & testing the machine, the buyer will assist the seller’s technician to get the visa and pay for the two-way flight tickets and local accommodation, visa cost. by the way , buyer pay 50USD/day for technican extra.
