Specifications
1) solid-liquid separation2) large diameter, quick for mass treatment
3) engineering guide installation

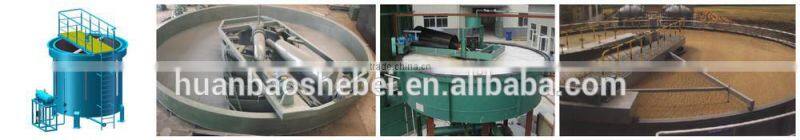

Shallow Water Air flotation machine
for solid and liquid separation
I. Introduction
Shallow air flotation machine are designed with ‘shallow tank theory’ and ‘zero velocity principle”. Retention time only 3-5 minutes.The machine has wide range of application, can be used in paper making(white paper recovery), lake water source water plant algae removal and turbid descending.Industrial wastewter treatment such as petrochemcial , textile, printing and dyeing,electroplating, tanning, food industry,etc
II. Working Principle
Shallow air flotation works by intense micron bubbles into the sewage, Released in the raw water pipeline at normal pressure,make the impurity, floc adhere to each other in the pipeline.The formation of the floating body is far less than the proportion of water, rapid ascent to the surface by buoyancy in the tank,to meet the solid-liquid separation in this method.
III. Main Advantages
- DAF single unit capacity can be 1800m3/hr
- tank depth only 600-900mm
- Short retention time 3-5 minutes,
-- little chemical cost.
- core equipment ”zero velocity” principle
IV. Parameter
Model |
Diameter(mm) |
Height(mm) |
Capacity(m3/h) |
Power(KW) |
Separation zone area (m2) |
Working load(t) |
Air dissolved system power(KW) |
ZCQJ25 |
φ3000 |
1100 |
25 |
1.3 |
6 |
12 |
7 |
ZCQJ45 |
φ3000 |
1100 |
45 |
1.85 |
10 |
16.8 |
7 |
ZCQJ70 |
φ5000 |
1100 |
70 |
2.6 |
16 |
21.1 |
9 |
ZCQJ110 |
φ6000 |
1100 |
110 |
3.3 |
26 |
28 |
17 |
ZCQJ150 |
φ7000 |
1125 |
150 |
3.3 |
35 |
40 |
21 |
ZCQJ200 |
φ8000 |
1150 |
200 |
3.3 |
46.4 |
45 |
23.5 |
ZCQJ250 |
φ9000 |
1200 |
250 |
3.3 |
58 |
46 |
23.5 |
ZCQJ300 |
φ10000 |
1200 |
300 |
5.2 |
70 |
57 |
31.5 |
ZCQJ400 |
φ11000 |
1200 |
400 |
6.2 |
93 |
68 |
45 |
ZCQJ450 |
φ12000 |
1200 |
450 |
6.2 |
105 |
81 |
45 |
ZCQJ500 |
φ13000 |
1200 |
500 |
6.2 |
115 |
93 |
46.5 |
ZCQJ600 |
φ14000 |
1200 |
600 |
6.2 |
140 |
110 |
46.5 |
Shandong Better Enviromental Protection Technology Co.,
it's the biggest enviromental protection machinery company in Shandong Province, with over 10 years experince and hard work of our employees ,
we got the National Patents for our products, and won customers all over the world,
below are our patents:
Solution Advice, Installation &. Operation Guide.
You can provide us the water sources, water quality, flow rate and ground area, material requirements about your project, then more technical solutions will be suggested to you.
