Specifications
1)Air flotation machine2)For liquid-solid or liquid-liquid separation
3)Separate small particles and algae
air flotation machine

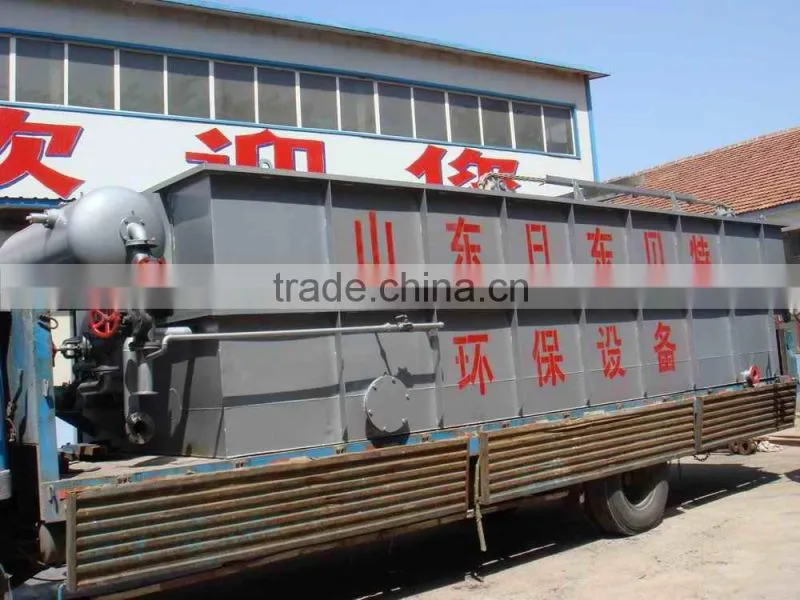

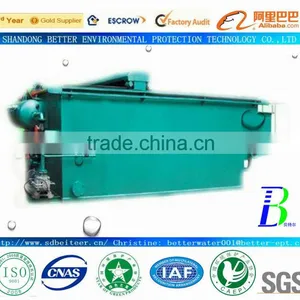

Dissolved Air Flotation Machine
YW series dissolved air flotation machine is mainly used for liquid or solid - liquid - liquid separation.
Through the soluble in water and gas releasing system of fine bubbles, make its adhesion in wastewater treatment and water density of the solid or the liquid particles to the overall, dense as water, and causing the rise to surface, thus achieved solid or liquid-fluid from object.
Technical Parameter
Specification |
Capacity (m3/h) |
Dissolved gas water (m3/h) |
Main dynamo power (kw) |
Foam scraper power (kw) |
Air compressor power (kw) |
Dissolved air tank size (mm) |
Overall dimension (mm) |
YW-5 |
4-5 |
1.5-2 |
3 |
0.37 |
1.5 |
Φ400x1000 |
3300x1800x2200 |
YW-10 |
8-10 |
2-3 |
3 |
0.37 |
1.5 |
Φ500x1512 |
4000x2100x2200 |
YW-20 |
15-20 |
5-7 |
7.5 |
0.37 |
1.5 |
Φ500x1512 |
4600x2400x2200 |
YW-30 |
20-30 |
6-10 |
7.5 |
0.37 |
1.5 |
Φ500x1512 |
5200x2600x2400 |
YW-40 |
30-40 |
8-13 |
7.5 |
0.55 |
1.5 |
Φ600x1880 |
6000x2600x2400 |
YW-50 |
40-50 |
15-20 |
7.5 |
0.55 |
1.5 |
Φ600x1880 |
7000x2600x2400 |
YW-60 |
50-60 |
18-27 |
7.5 |
0.55 |
1.5 |
Φ600x1880 |
7600x2800x2400 |
YW-80 |
70-80 |
24-32 |
7.5 |
0.55 |
1.5 |
Φ650x2034 |
9200x2800x2400 |
YW-100 |
90-100 |
30-35 |
15 |
0.55 |
3 |
Φ700x1980 |
10000x2800x2600 |
YW-150 |
125-150 |
60-80 |
22 |
1.1 |
3 |
Φ800x1980 |
13500x2800x2600 |
YW-200 |
175-200 |
80-100 |
22 |
1.1 |
3 |
Φ800x2100 |
15800x2800x2600 |
YW-250 |
225-250 |
110-120 |
22 |
1.1 |
3 |
Φ800x2400 |
15200x3400x2600 |
YW-300 |
280-300 |
120-180 |
37 |
1.1 |
5.5 |
Φ1000x2900 |
19200x3400x2800 |
