Help CenterBG60A Vegetable Modified Atmosphere Packaging Machine
Related Products
-
DZ260A Household Food Vacuum Packaging MachineUS$ 285 - 370MOQ: 1 Piece -
DZ400/2D Single Chamber Price For Vacuum Packing MachineUS$ 400 - 570MOQ: 1 Piece
-
DZ500/2SBII Double Chamber Meat And Chicken Vacuum Packing MachineUS$ 1,200 - 1,500MOQ: 1 Piece
-
KHP-1 With Gas Filling Mini Small Food Vacuum Packing MachineUS$ 650 - 800MOQ: 1 Set
-
KHP-4 With Gas Filling Fruit And Vegetable Vacuum Packing MachineUS$ 1,200 - 3,800MOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Model |
BG60A-2H |
BG60A-3H |
BG60A-4H |
BG60A-6H |
Output (cups/h) |
500-1600 |
2000-2400 |
3000-3200 |
4800-5300 |
Filling Range |
20-500ml |
20-500ml |
20-500ml |
20-500ml |
Voltage |
AC 220V / 50Hz |
AC 220V / 50Hz |
AC 220V / 50Hz |
AC 220V / 50Hz |
Power |
3.5kw |
5kw |
6kw |
7.5kw |
Template |
2 cups 1 time |
3 cups 1 time |
4 cups 1 time |
6 cups 1 time |
Vacuum Pump |
25m3/h |
40m3/h |
40m3/h |
40m3/h |
Control System |
PLC / MCU |
|||
Capping Film |
Roll Film / Sheet Film (Premade Film) |
|||
Metering Methods |
Dosing Filling (liquid, paste, granule, powder) |
|||
Air Consumption |
0.6 m3/min |
0.7 m3/min |
0.8 m3/min |
0.9 m3/min |
Dimensions |
3300*710*1700mm |
3800*800*1700mm |
3900*900*1700mm |
4000*1000*1700mm |
Weight |
700kg |
800kg |
1000kg |
1200kg |
Note: Due to the escalating changes vegetable modified atmosphere packaging machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview
>The vegetable modified atmosphere packaging machine is fully enclosed vacuum replacement inflate the way of food preservation, and packaging, that is fully enclosed in the vacuum chamber of the state, the use of high oxygen vacuum pump, the vacuum chamber constitutes a high vacuum, then charge into a gas suitable for food preservation postponed.
>This packaging method allows the vessel residual oxygen content is low, is conducive to accurate control of the proportion of gases, gas exchange rate> = 98%, effective solution to the traditional flush MAP compensating residual oxygen content as a result of fresh ineffective, inconsistent filling gas ratio, unable to grasp and control the shelf life of fresh food problem.
- Scope
>The modified atmosphere packaging machine, according to different types of food needed fresh gas and mixing ratio, high-precision adjusted so that food preservation to achieve the best condition. Product is suitable for cold meat, cooked meat, fast food, pastries, rice, cheese, fruits, vegetables, soy products, aquatic products, poultry, etc. quickly and efficiently modified atmosphere packaging.

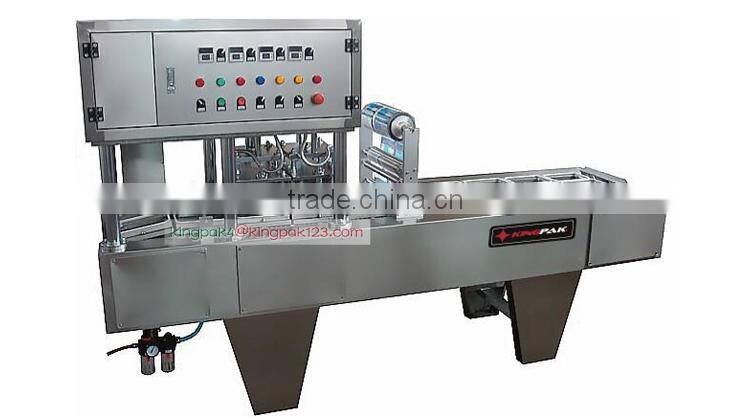

3. Whole&Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
4. Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
