Help CenterDZ500/2SBII Double Chamber Meat And Chicken Vacuum Packing Machine
Related Products
-
KHP-1 With Gas Filling Mini Small Food Vacuum Packing MachineUS$ 650 - 800MOQ: 1 Set -
KHP-4 With Gas Filling Fruit And Vegetable Vacuum Packing MachineUS$ 1,200 - 3,800MOQ: 1 Set
-
DZ400/2SB Double Chamber Coffee And Cheese Vacuum Packing MachineUS$ 950 - 1,500MOQ: 1 Set
-
DZ500/2SB Food Commercial Oil Vacuum Packing MachineUS$ 1,000 - 1,600MOQ: 1 Set
-
DZ600/2SB Flat Chamber Sausage And Dry Fish Vacuum Packing MachineUS$ 1,200 - 1,850MOQ: 1 Set
Technical Parameters
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Machine Name |
Double Chamber Meat And Chicken Vacuum Packing Machine |
Model |
DZ500-2SBII |
Electrical Control |
Microcomputer program |

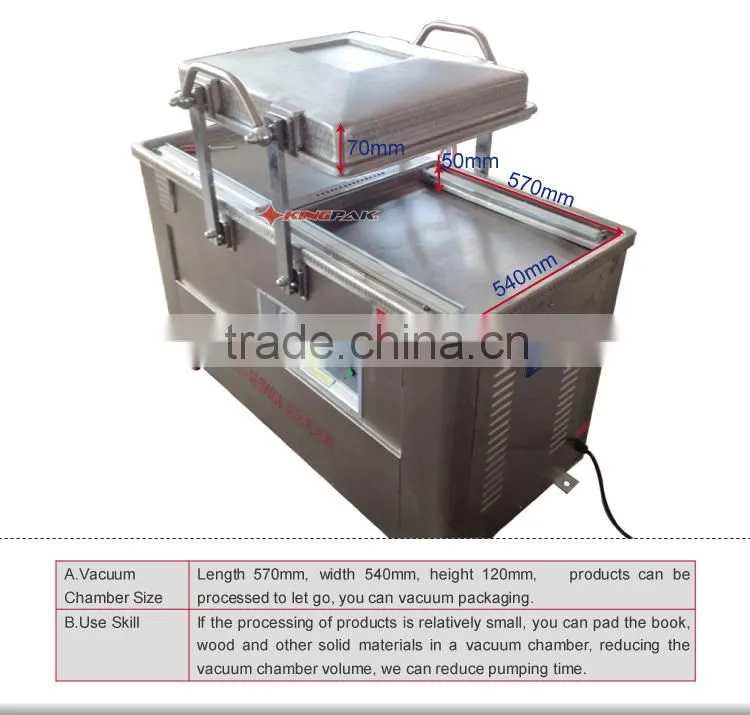

Vacuum Chamber Size |
570*470*120mm*2 |
Power Source |
380V/3PH/50Hz |
Motor Power |
1500w |
Sealing Power |
900w*2 |
Packing Speed |
4-8 pcs/min |
Heat-Sealing |
500*12mm |
Heat Sealing Way |
Instant heating |
Heat Seal Device |
2-set |
Sealing Tape |
Nickel-chromium alloy |
Vacuum Pump |
20 m3/h*2 |
Vacuum Degree |
-0.1≤ Mpa |
Dimensions |
1250*720*940mm |
Net weight |
235kg |
Note: Due to the escalating changes double chamber meat and chicken vacuum packing machine, the above technical parameters for reference only, to prevail in kind, please understand!
Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Vacuum Packing Principle
> The main role is oxygen vacuum packing to prevent food spoilage, the principle is relatively simple, mainly due to deterioration of food mold rot caused by microbial activity, while the majority of microorganisms (such as molds and yeasts) need oxygen to survive, and vacuum packaging is the use of this principle, the packing bag and food cells deprived of oxygen, loss of living microbial environment.
- Vacuum Packing Applications
> Composite film or aluminum foil for packaging materials, for solid, granular, powder, liquid, paste food, meat, sauce products, spices, fish, fruit, grain, soy products, chemicals, medicine, hardware equipment and other materials for vacuum packing.
> After vacuum packaged products to prevent oxidation, mildew, insects, moisture, can be kept fresh, so as to achieve the purpose of extending product shelf life.

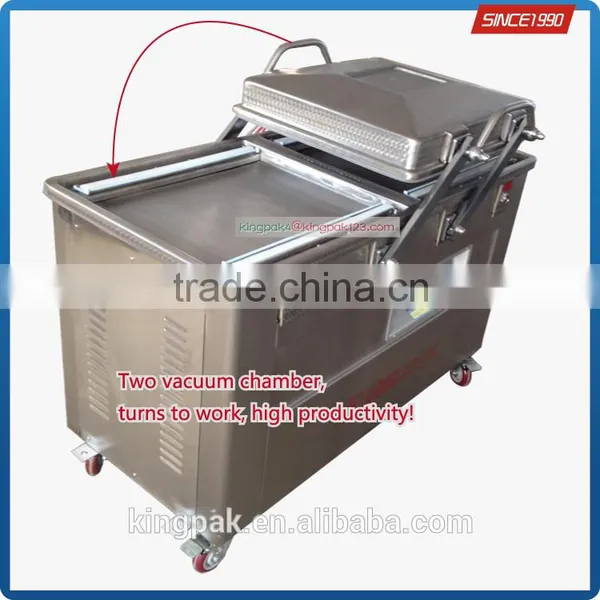

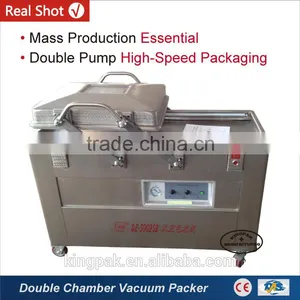

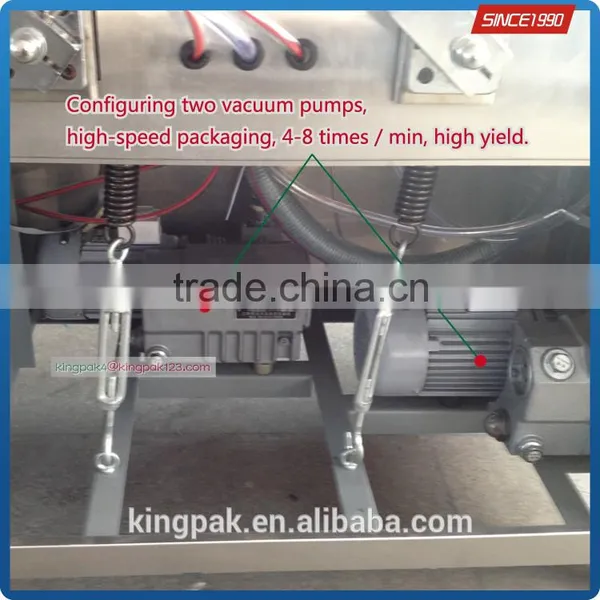

> The upper vacuum chamber turning around, turns working head and tail of convergence, there is no waste of time, improve work efficiency. Double pump configuration, shorten extraction time, high-speed packaging, is mass production of the necessary equipment.
Performance Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

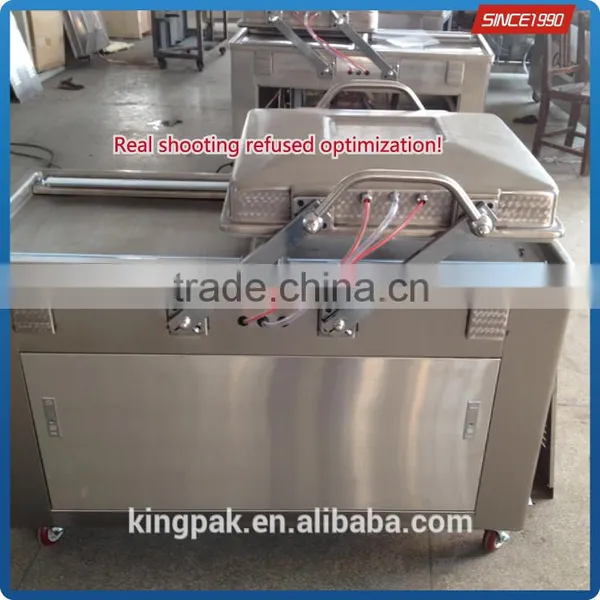

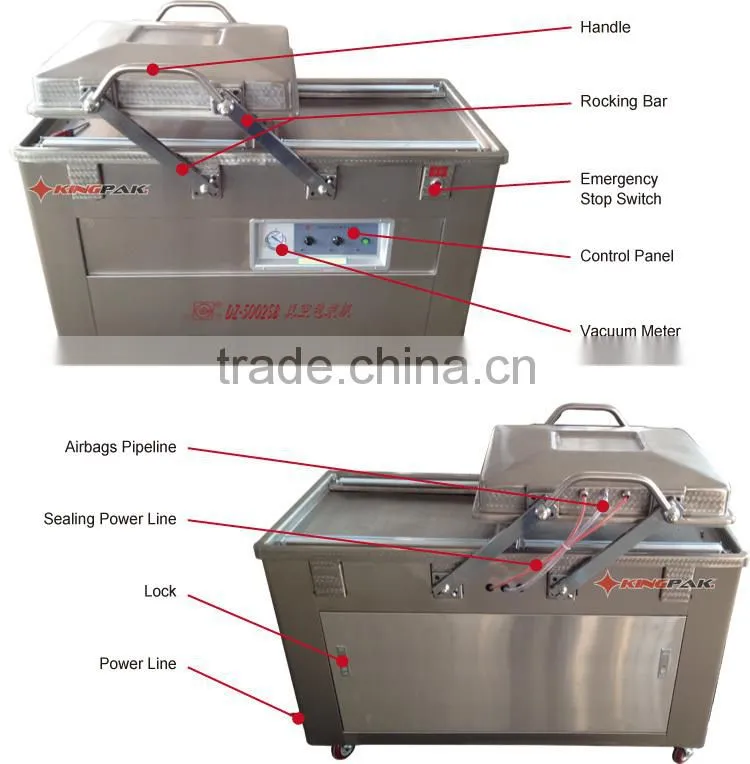

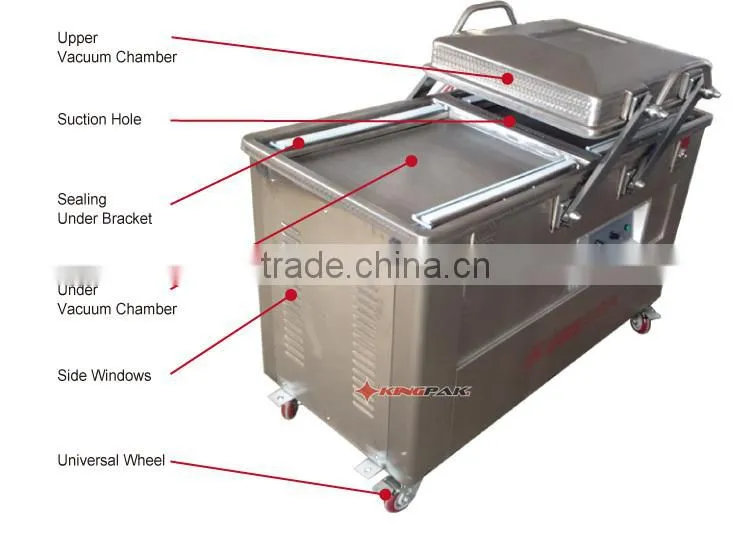

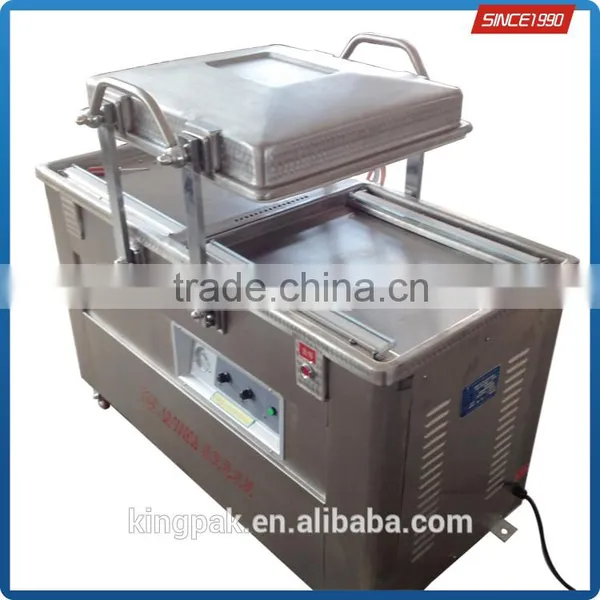

Whole Show - Round Display Overall Product
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

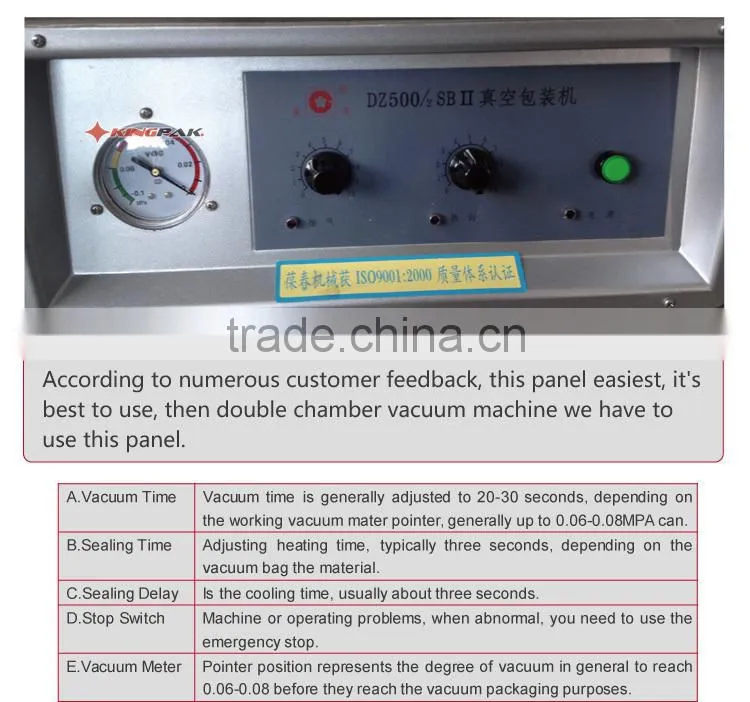

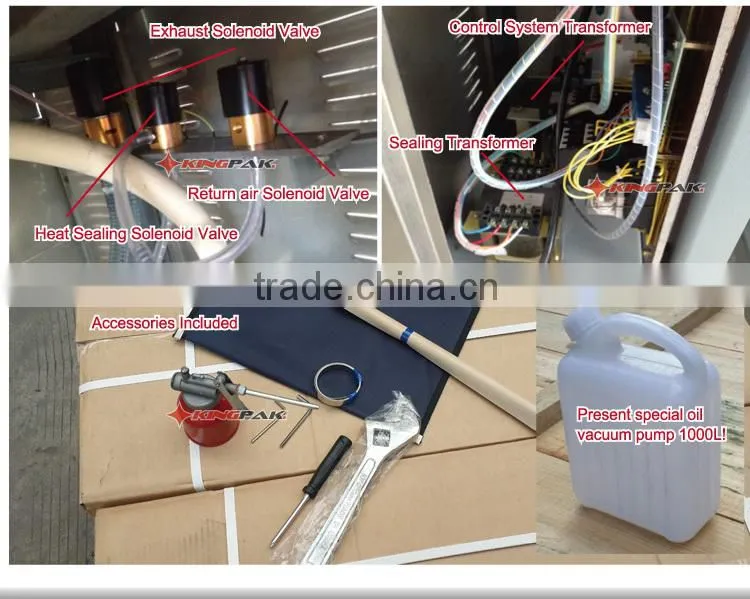

Details Show - Humanized Design Refinement Process
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
