Help CenterKHP-4 With Gas Filling Fruit And Vegetable Vacuum Packing Machine
Related Products
-
DZ400/2SB Double Chamber Coffee And Cheese Vacuum Packing MachineUS$ 950 - 1,500MOQ: 1 Set -
DZ500/2SB Food Commercial Oil Vacuum Packing MachineUS$ 1,000 - 1,600MOQ: 1 Set
-
DZ600/2SB Flat Chamber Sausage And Dry Fish Vacuum Packing MachineUS$ 1,200 - 1,850MOQ: 1 Set
-
DZ900 Fruit And Chicken Used Vacuum Packaging MachineUS$ 1,050 - 2,250MOQ: 1 Set
-
DZ1000 Automatic Food Vacuum Packing MachineUS$ 4,000 - 5,800MOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Machine Name |
With Gas Filling Fruit And Vegetable Vacuum Packing Machine |
|
Model |
KHP-4 |
KHP-8 |
Control System |
PLC |
PLC |
Parameter Adjustment |
Touch Screen |
Touch Screen |
Packing Speed |
6-10pcs/min*4 |
6-10pcs/min*8 |

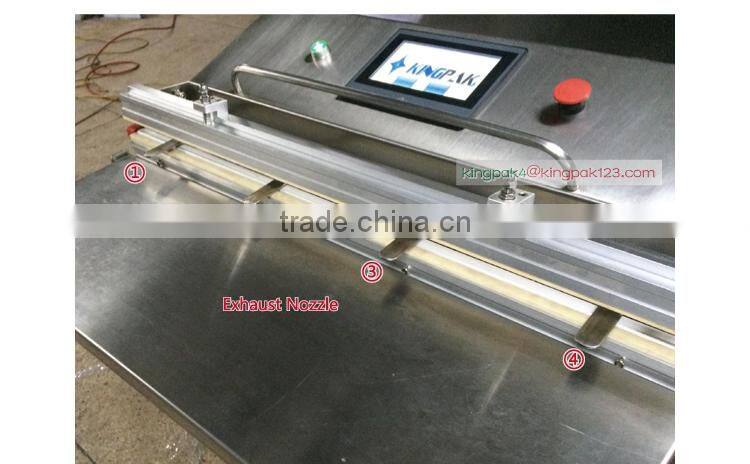

Exhaust Nozzle Number |
4pcs |
8pcs |
Sealing Length |
900×10mm |
1200×10mm |
Heat Sealing Way |
Impulse / Direct Heat Optional |
|
Sealing Tape |
Nickel-chromium alloy / Aluminum Square Rod |
|
Vacuum Pump |
25 m3/h |
25 m3/h |
Vacuum Degree |
-0.1≤ Mpa |
-0.1≤ Mpa |
Pumping Rate |
7L/sec |
7L/sec |
Heating Power |
1100w |
1500w |
Pump Power |
1100w |
1100w |
Power Source |
220V/380V 50Hz-60Hz |
220V/380V 50Hz-60Hz |
Dimensions |
900*1100*1050mm |
1400*1100*1050mm |
Net weight |
133kg |
160kg |
Note: Due to the escalating changes fruit and vegetable vacuum packing machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview

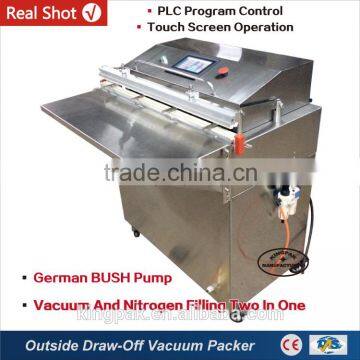

>The fruit and vegetable vacuum packing machine is put through the exhaust nozzle of the packing material packaging bag, evacuated of air, exhaust nozzle exit, and then complete the seal. Outside pumping vacuum packing machine generally has 1 to 4 exhaust nozzles. Sealing of the power source is usually a cylinder or motor.

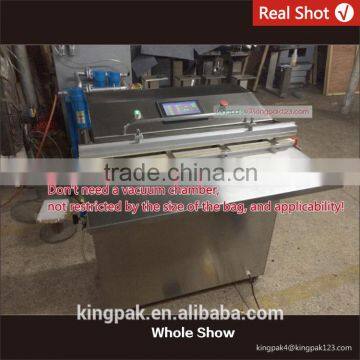

>This machine because there is no fixed vacuum chamber, so the size of the packing material is not limited, to ensure the appearance of the packaged goods, while packing a little faster.
>The with gas filling fruit and vegetable vacuum packing machine to vacuum can be filled with an inert gas, to make the packaging preservation, to prevent oxidation to prolong the shelf life of purpose.

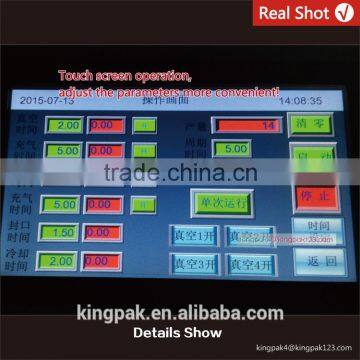

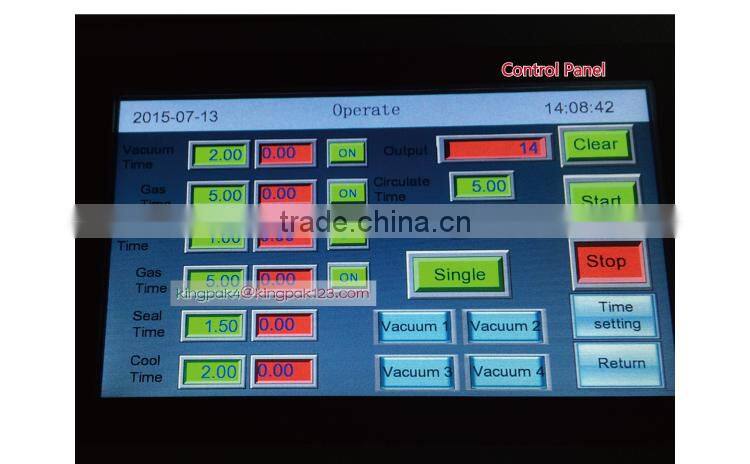

>This machine adopts PLC control system, the packing parameter setting precise, stable, with a single preset, you can long-term use, the future does not need to re-set.
>User presets good ventilation, aeration and sealing procedures, use only touch the start button to complete the pre-packaging process, the operation is extremely simple.
- Scope
>For fabrics, cotton wool products vacuum packaging, packaging volume can be compressed to save logistics costs.
>For all types of electronic products (semiconductors, circuit boards, electronic products, etc.) and pieces of metal processing machines, vacuum packing, moisture, oxidation discoloration. Filled with inert gas and other gases can prevent collision.
>For food (seafood, fruit, tea, salted items, soy, etc.) vacuum packed to prevent oxidative deterioration and prolong shelf life. Filled with inert gas and other gases can prevent collision.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
♦ There are a variety of control systems for customers to choose, package parameter settings easy and convenient, stable operation.
♦ Without packaging shape, size restrictions, especially for large or oddly shaped items vacuum packed.
♦ Stainless steel table, according to the packaging size can be adjusted.

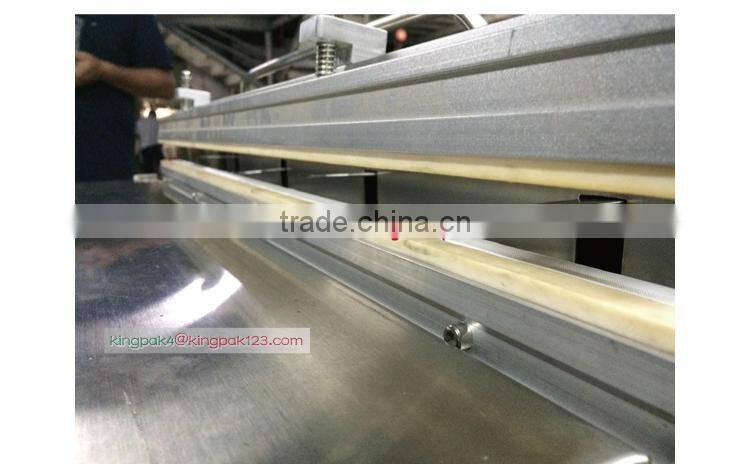

♦ Dual stroke cylinder, sealing solid formation. Vacuum speed, only 3-6 seconds to complete.
♦ High quality pneumatic components, driving gas nozzle and sealing action, with accurate.
♦ Configuration efficient vacuum pumps, low noise, large displacement, stable and reliable. A shock device, the vacuum pump at work remain low noise.
♦ Small footprint, only one person can operate. The following offers a simple storage box for easy storage of small items. Bottom with casters, can move freely.
4. Whole&Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
5. Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
6. Vacuum Bags
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• Excellent use of barrier packaging materials and strict sealing technology, can effectively prevent the exchange of material inside the bag, you can avoid food weight loss, loss of taste, but also to prevent secondary pollution.
• Different materials, different packaging forms to choose a different vacuum bags for the convenience of customers, our company provide all kinds of original vacuum bags to solve the customer's worries.
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
