Help CenterDZ1000 Automatic Food Vacuum Packing Machine
Related Products
-
DZ320A Molding Tea And Rice Vacuum Packaging MachineUS$ 280 - 450MOQ: 1 Set -
DZ300 Portable Vacuum Packing MachineVacuum PackerUS$ 20 - 50MOQ: 1 Set
-
DZQ600L External Gas Filling Pillow And Clothes Vacuum Packing MachineUS$ 2,200 - 2,750MOQ: 1 Set
-
DZQ-250H Fresh Fruit Modified Atmosphere Packing MachineUS$ 15,700 - 18,500MOQ: 1 Set
-
BG60A Vegetable Modified Atmosphere Packaging MachineUS$ 8,500 - 12,000MOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Machine Name |
Automatic Food Vacuum Packing Machine |
Model |
DZ1000 |
Control System |
MCU |
Chamber Size |
1000*350*90/140mm |
Power Source |
380V/3PH/50HZ |
Power |
4Kw |
Packing Speed |
3-6 pcs/min |
Heat-Sealing |
900 × 8/10mm |
Heat Sealing Way |
Instant heating |
Heat Seal Device |
1-set (Each vacuum chamber) |
Sealing Tape |
Nickel-chromium alloy |
Vacuum Pump |
100 m3/h |
Vacuum Degree |
-0.1≤ Mpa |
Dimensions |
1740*1360*1300mm |
Net weight |
500kg |
Gross weight |
525kg |
Note: Due to the escalating changes automatic food vacuum packing machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview
>Continuous automatic food vacuum packing machine run by the electromagnetic brake motor control conveyor belt, accurate positioning, to achieve the purpose of continuous work.
>The machine according to need in the working plane within the range 0-15 degrees stepless adjustment may be suitable for liquid, granular, powder and other highly liquid products packaging.
>Using programmable control system and touch screen (customer choice), to make the packaging more accurate parameter settings, easy operation.
>Control box and the upper and lower racks are made of stainless steel, the transmission part adopts antimicrobial conveyor belt, one-touch release structure, conveyor belt can be cleaned inside (table, etc.) and the conveyor belt on the back, can protect the health and safety during all operations.
>Sealing length up to 900mm, can be performed on multiple bag vacuum packaging, high efficiency, can meet the requirements of mass production. According to the different packaging specifications set in a vacuum chamber one or two sealing means to improve the efficiency of packaging.
- Scope
>Applicable industries: meat, sauce, pickled products, fish, seafood, vegetables, agricultural products, preserved fruit, grain, soy, herbs, appliances and other items of continuous rapid vacuum packaging.

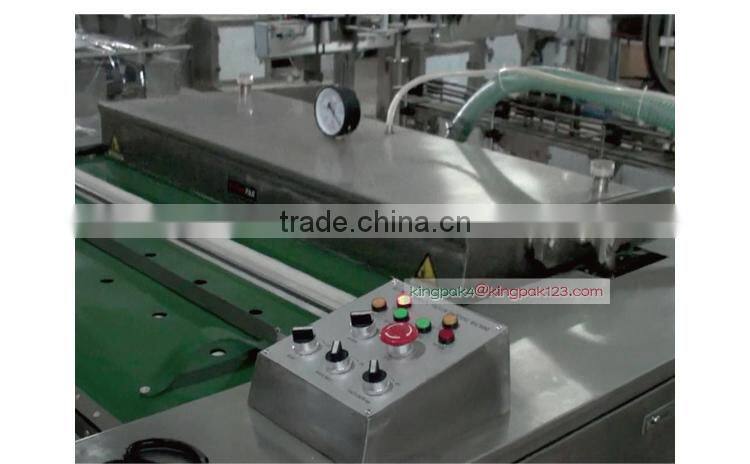

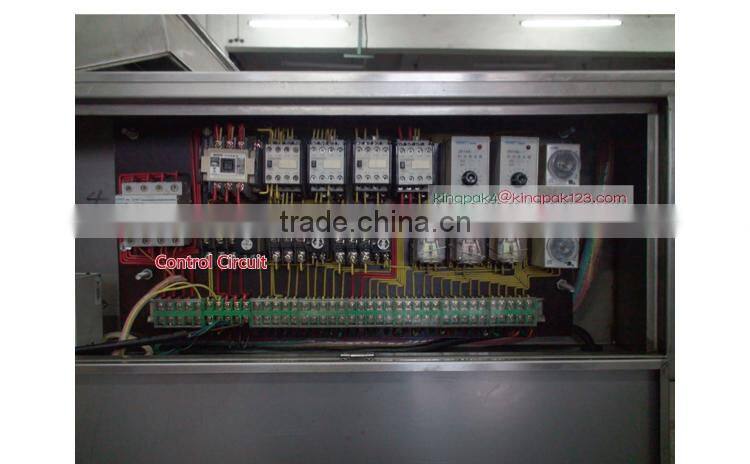

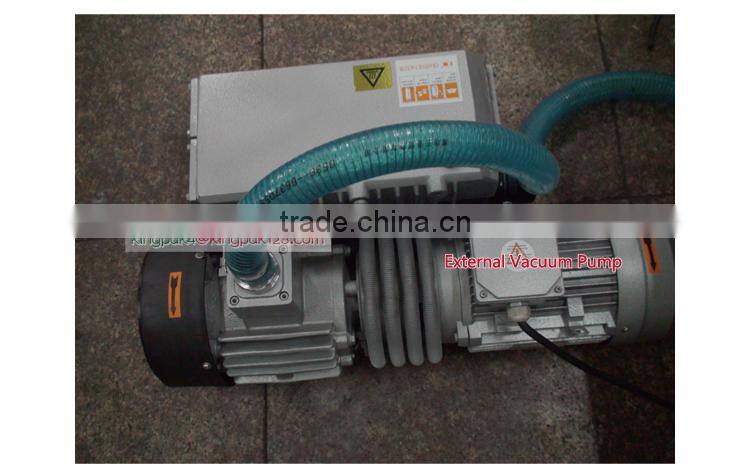

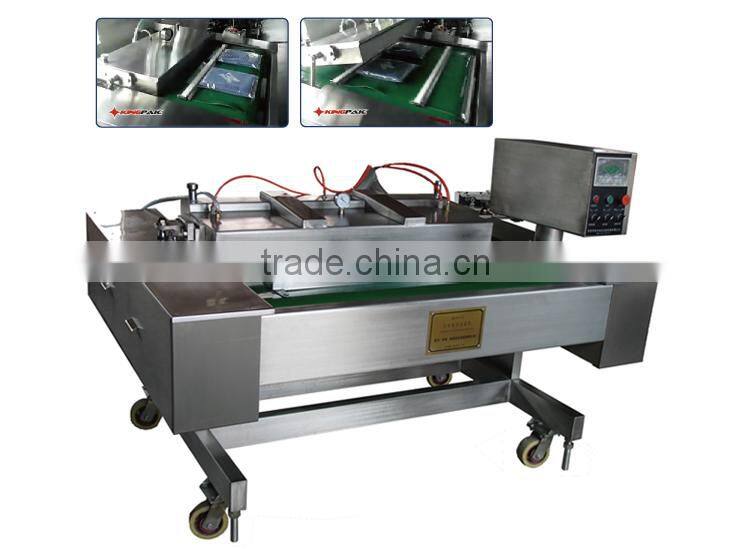

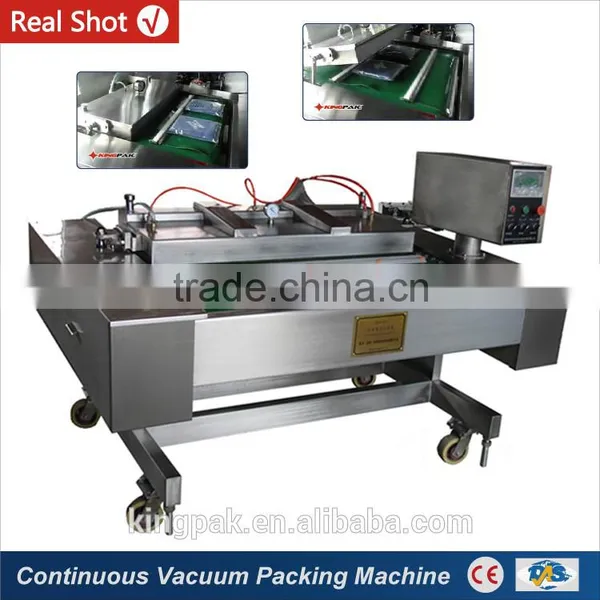

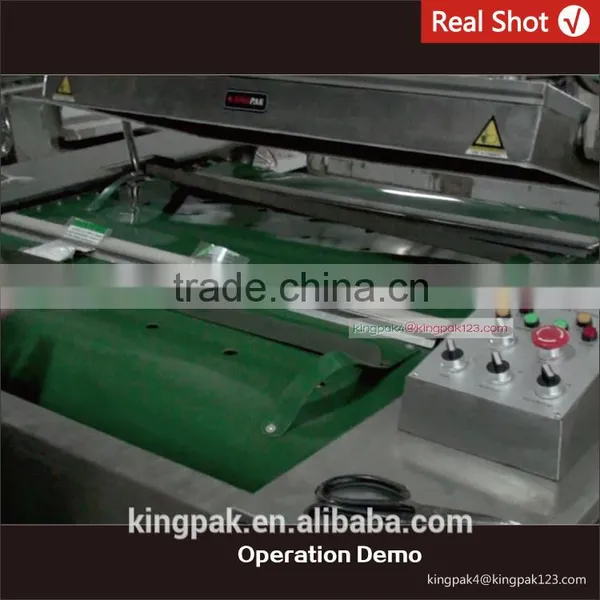

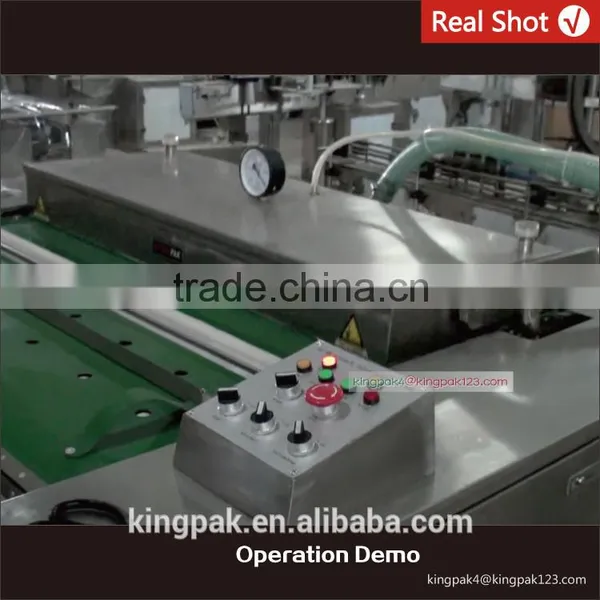

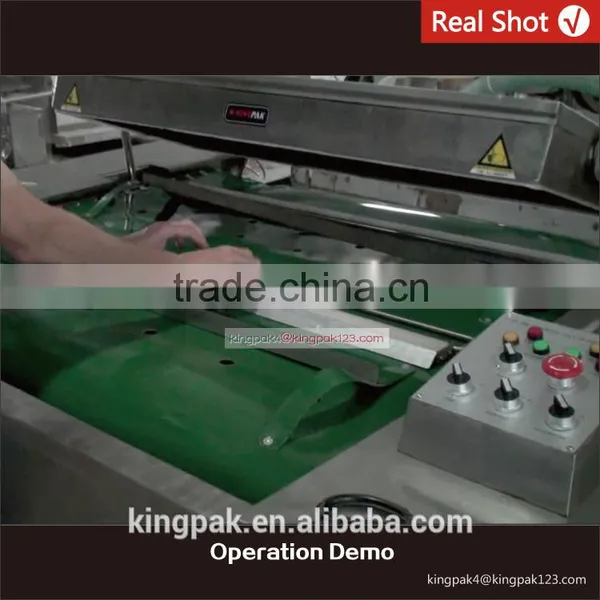

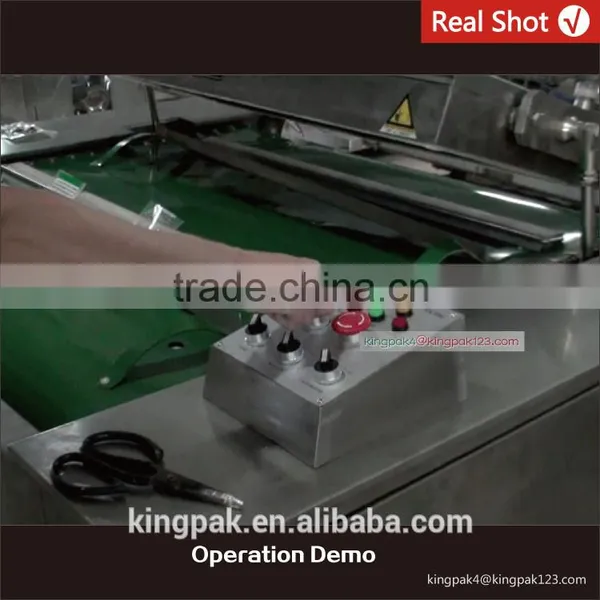

3. Whole&Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

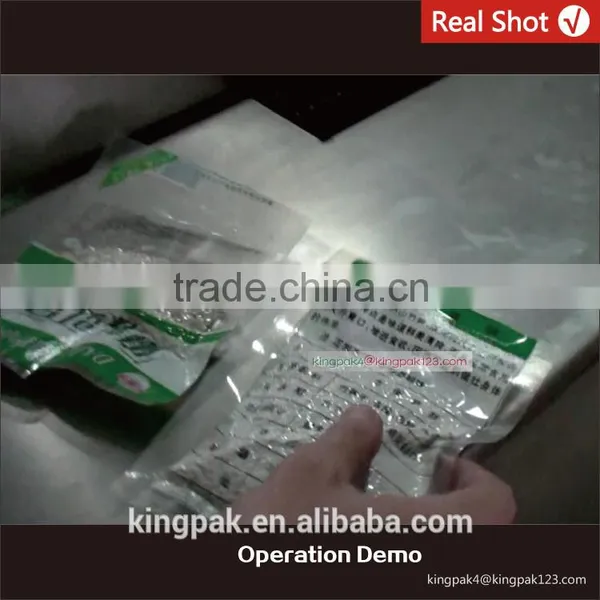

4. Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
5. Vacuum Bags
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• Excellent use of barrier packaging materials and strict sealing technology, can effectively prevent the exchange of material inside the bag, you can avoid food weight loss, loss of taste, but also to prevent secondary pollution.
• Different materials, different packaging forms to choose a different vacuum bags for the convenience of customers, our company provide all kinds of original vacuum bags to solve the customer's worries.
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
