1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Machine Name |
Flat Chamber Sausage And Dry Fish Vacuum Packing Machine |
Model |
DZ400/500/600/7002SB |
Electrical Control |
Microcomputer program (customer choice) |
Vacuum Chamber Type |
Double chamber Flip cover |
Vacuum Chamber Size |
500*510*95mm 600*580*95mm 710*680*95mm 810*750*95mm |
Power Source |
380V/3PH/50HZ |
Power |
1.55/2.7Kw/3.2Kw/3.5kw |
Packing Speed |
2-6 pcs/min |
Heat-Sealing |
400/500/600/700× 8mm |
Heat Sealing Way |
Instant heating |
Heat Seal Device |
2-set or 4-set (Each vacuum chamber) |
Sealing Tape |
Nickel-chromium alloy |
Vacuum Pump |
20-40 m3/h (Built-in or external) |
Vacuum Degree |
-0.1≤ Mpa |
Dimensions |
990*630*930mm 1200*700*960mm 1420*765*960mm 1620*850*960mm |
Net weight |
190/225/365/400kg |
Gross weight |
210/245/385/420kg |
Note: Due to the escalating changes sausage and dry fish vacuum packing machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview

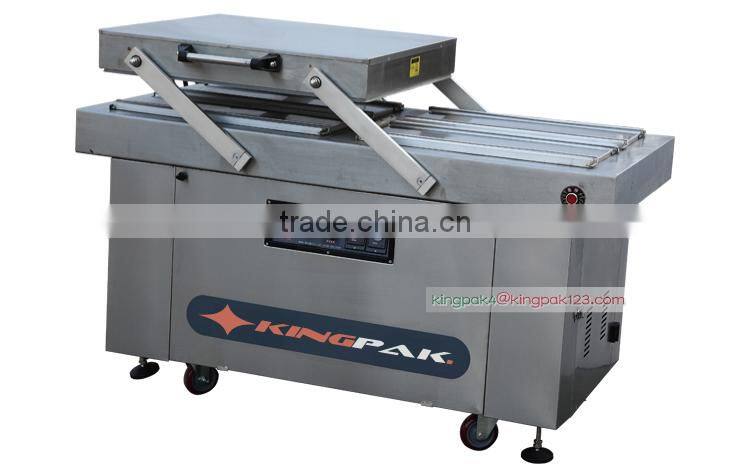

>Flatbed double chamber Sausage And Dry Fish Vacuum Packing Machine is the use of a vacuum on the vacuum chamber cover with two alternating work efficiency so as to achieve the purpose of providing, when a vacuum in the vacuum chamber, the chamber may be placed in another vacuum packaging. This machine specially designed vacuum swing lid lift mechanism, greatly reduce the labor intensity of the operator.
- Scope
>Applicable industries: meat, fish, food, agricultural products, pickles, fast food products, prepared foods, flour, spices, electronics, hardware parts, medicines and so on.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
♦ Microcomputer control system (customer choice), the packaging parameter setting is more accurate, convenient and simple. The operator may need to set the time and vacuum sealing time to adapt to different specifications, material packaging.
♦ Vacuum chamber made of stainless steel, safety and hygiene, smooth, easy to clean, with food hygiene requirements. On the edge of the plane formed by the unique treatment, compared with the previous high vacuum lid fit, sealing better.
♦ The vacuum chamber made ??of high-density material V-shaped seal, ensuring the upper and lower vacuum chamber tightness in their daily work, high-density material with pressure, wear characteristics, extending seal life.
♦ Using a specially designed floating structures on the vacuum chamber, allows the operator to more easily, reduce labor intensity, work more efficiently.
♦ HConfiguration efficient vacuum pumps, low noise, large displacement, stable and reliable. A shock device, the vacuum pump at work remain low noise.
4. Whole&Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
5. Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
6. Vacuum Bags
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• Excellent use of barrier packaging materials and strict sealing technology, can effectively prevent the exchange of material inside the bag, you can avoid food weight loss, loss of taste, but also to prevent secondary pollution.
• Different materials, different packaging forms to choose a different vacuum bags for the convenience of customers, our company provide all kinds of original vacuum bags to solve the customer's worries.
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
