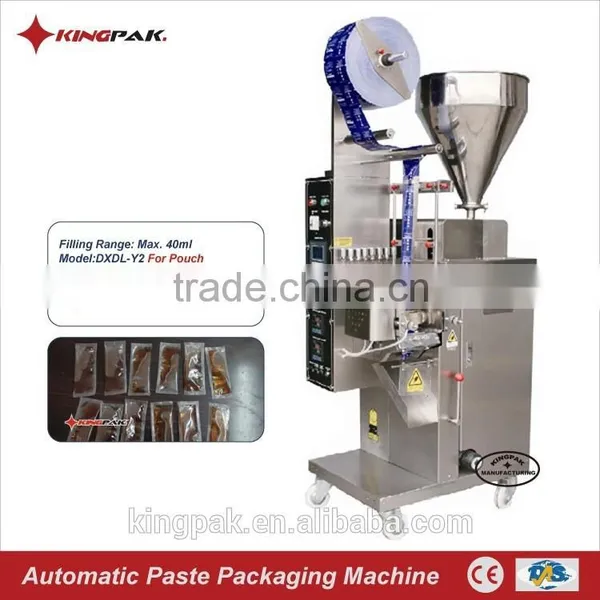

Help CenterDXDL-Y2 Automatic Ketchup Small Sachet Packing Machine
Related Products
-
DXDL-40 Automatic Tomato Paste And Honey Sachet Packing MachineNegotiableMOQ: 1 Set -
DXDJ-300 Automatic Cooking Oil Pouch Packing MachineNegotiableMOQ: 1 Set
-
DXDJ-40II Automatic Sauce Ketchup And Honey Packaging MachineNegotiableMOQ: 1 Set
-
HP100L-II Automatic Jam Ketchup And Juice Packing MachineNegotiableMOQ: 1 Set
-
HP100L Automatic Ketchup Sachet And Honey Packing MachineUS$ 2,500 - 4,000MOQ: 1 Piece
Name: Ketchup Small Sachet Packing Machine, Ketchup Packing Machine, Ketchup Sachet Packing Machine
Overview
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• The automatic sticky liquid packaging machine can automatically complete bag making, measuring, filling, coding, cutting, counting the whole packaging process.
• The liquid metering pump specially designed to avoid the phenomenon of the sauce in the packaging material sandwiched sealing process, and improves the rate of bags, but also the sealing of the cleaner more aesthetically pleasing.
• This machine uses flail cutter cut friction, so cut flat burr. Unique oil leak lubrication systems, lubrication can be carried out 24 hours, extending the life of the machine.
• Has a fault display system that can quickly identify the cause of the fault and fault location equipment where help timely troubleshooting.
Scope
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• Automatic sticky liquid packaging machine for shampoo, disinfectant, honey, syrup, jam, peanut butter, sesame paste, tomato sauce, chili sauce, chili oil, caviar, shrimp paste, salad dressing, beef sauce, seasoning sauce, cream, shower gel, cosmetics, washing Jie Jing, lubricants and other sticky liquid packaging.
Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Automatic Sticky Liquid Packaging Machine |
Model |
DXDL-Y2 |
Packing Speed |
30-100bags/min |
Filling Range |
Max.40ml |
Filling Accuracy |
±1% |
Bag Size |
L55-110mm W30-80mm |
Power |
1.5kw 220V AC |
Dimensions |
600*790*1780mm |
Weight |
320kg |
Features
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Role Of Common Parts
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
♦ Film Feeding Motor: Mainly used to pull send packaging film.
♦ Main motor: active force source the components of the drive.
♦ Optical Head: cursor identifying packaging film, to ensure complete type bag pattern.
♦ Sensor Switch: Control Triggering and transmission time for the film of the film feeding motor.
♦ Thermocouple: feedback of the actual temperature of heating tubes, and a set temperature and compares the transistor by the feedback circuit to regulate the output voltage, to regulate temperature.
♦ Heater: for sealing the mold is heated.

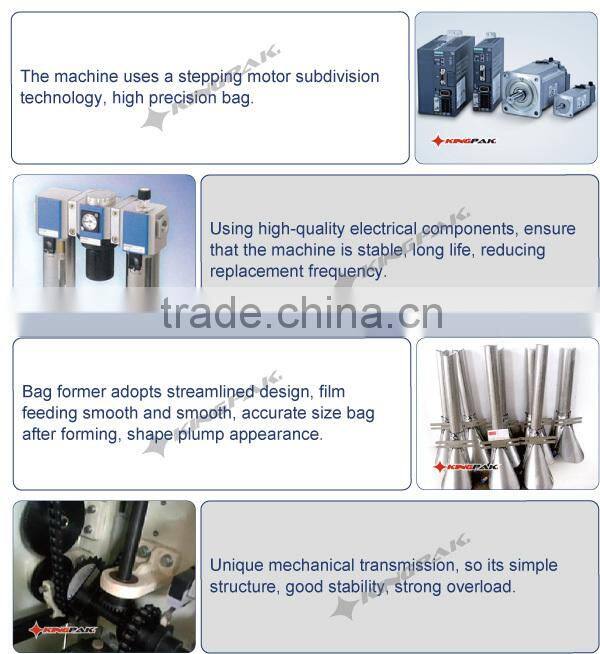

♦ Bag Former: the packaging film directed molded to the desired shape of the bag.
♦ Sealing Molds: for sealing and cutting packaging film, complete the bag.
♦ Temperature Controller: sealing temperature regulation, are generally used for horizontal and vertical sealing.
♦ PLC: Control sequence mutual cooperation between the various components, complete packaging operations.
