KINGPAK Fluid Plate Heat Exchanger Price

KINGPAK Fluid Plate Heat Exchanger Price thumbnail-1
KINGPAK Fluid Plate Heat Exchanger Price thumbnail-2
KINGPAK Fluid Plate Heat Exchanger Price thumbnail-3
KINGPAK Fluid Plate Heat Exchanger Price thumbnail-4
KINGPAK Fluid Plate Heat Exchanger Price thumbnail-5
KINGPAK Fluid Plate Heat Exchanger Price thumbnail-6
KINGPAK Fluid Plate Heat Exchanger Price photo-1
KINGPAK Fluid Plate Heat Exchanger Price photo-2
KINGPAK Fluid Plate Heat Exchanger Price photo-3
KINGPAK Fluid Plate Heat Exchanger Price photo-4
KINGPAK Fluid Plate Heat Exchanger Price photo-5
KINGPAK Fluid Plate Heat Exchanger Price photo-6
US$ 500 - 4,900 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
kingpak
Contact Supplier Request Quote Chat Now
Wenzhou Kingpak Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name kingpak
Model Number Plate Heat Exchanger
Processing Types Juice
Voltage 220v
Power(W) 3-15KW
Weight 120kg
Dimension(L*W*H) 1500*800*1300mm
Certification ce
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas
Product Overview



1. Specifications

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Plate Sheet Type

BR0.05

BR0.1

BR0.2

BR0.3

BR0.5

Plate Sheet Material

                 SS304 or SS316

Single Heat Exchange Area(m2)

0.05

0.1

0.2

0.3

0.5

Plate Sheet Size(mm)

500*168

660*250

970*330

365*1183

450*1451

Plate Sheet Thickness(mm)

0.7

0.7

0.7

0.7

0.7

Angle Hole Diameter(mm)

38

60

75

85

110

Connect Pipe Diameter(mm)

28

38

46

90

116

Corrugation Form

                      "Y" type

Corrugation Space Between(mm)

10

12

12

14

16

Average Plate Space Between(mm)

3.8

3.8

3.8

4.5

4.5

Combined Heat Exchange Area(M2)

0.5-3

3-10

8-38

30-50

40-80

Max. Pressure (Mpa)

                        0.4-2

Max. temperature (oC)

           Common:120-160  Especial:250

Heat Transfer Coefficient(w/m2 oC)

                     2000-6000

Note: Due to the escalating changes plate heat exchanger, the above technical parameters for reference only, to prevail in kind, please understand!



2. Basic Introduction

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

- Overview

 >Plate heat exchanger is a high effective heat exchanging equipment, can be used in such fields as chemicals, metallurgy, petroleum, power station, agriculture chemicals, paper making, pharmacy, air-conditioner, beer, beverage, and biological project. It is of advantages of compact structure, large heat exchanging area, small area taking, and easy disassembly, cleaning and maintain.

- Scope

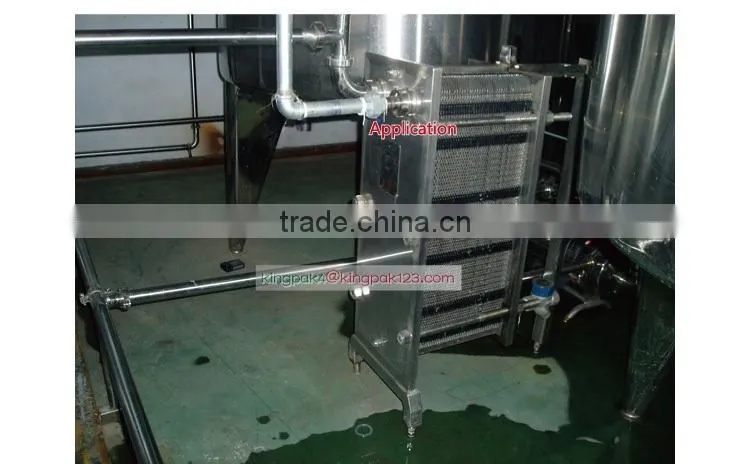

 >Refrigeration: used for condenser and evaporator.

 >Hvac: use in the middle of the boiler heat exchanger, high-rise building intermediate heat exchanger, etc.

 >Chemical industry: soda ash industry, synthetic ammonia, alcohol fermentation, resin composite cooling, etc

 >Metallurgical industry: aluminate liquor heating or cooling, steelmaking process cooling, etc.

 >Machinery industry: all kinds of quenching liquid cooling, reducer lubricating oil cooling, etc.

 >Electric power industry: high voltage transformer oil cooling, oil cooling generator bearing, etc.

 >Paper industry: bleaching process heat recovery, heating wash slurry, etc.

 >Textile industry: viscose rayon aqueous alkali cooling, boiling nitrocellulose cooling, etc.

 >Food industry: juice sterilization cooling, animal and plant oil heating or cooling.

 >Grease technology: soap base ambient pressure, heating or cooling of various process with liquid.

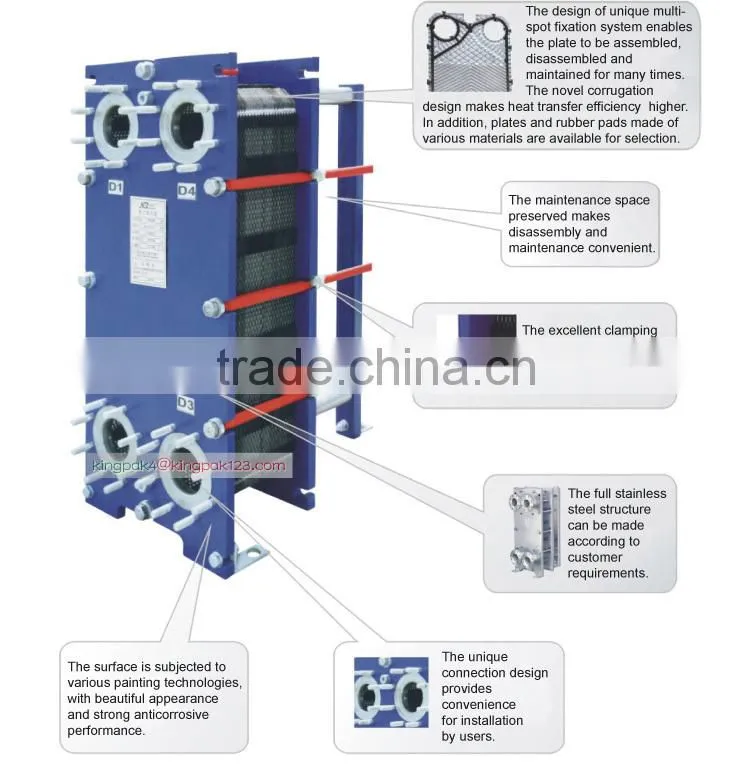

3. Feature

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

1) high heat transfer coefficient.

2) cover an area of an area small.

3) easy to change the heat transfer area or process combination.

4) the heat loss is small.

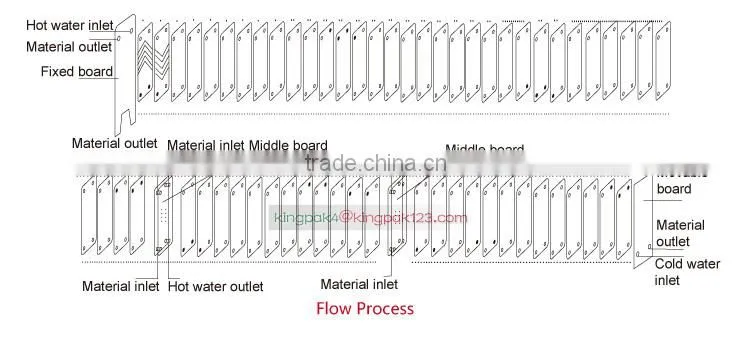

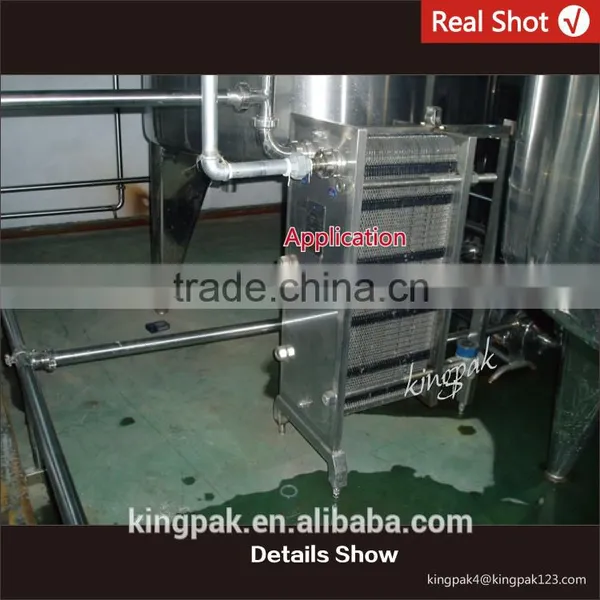

Details Structure

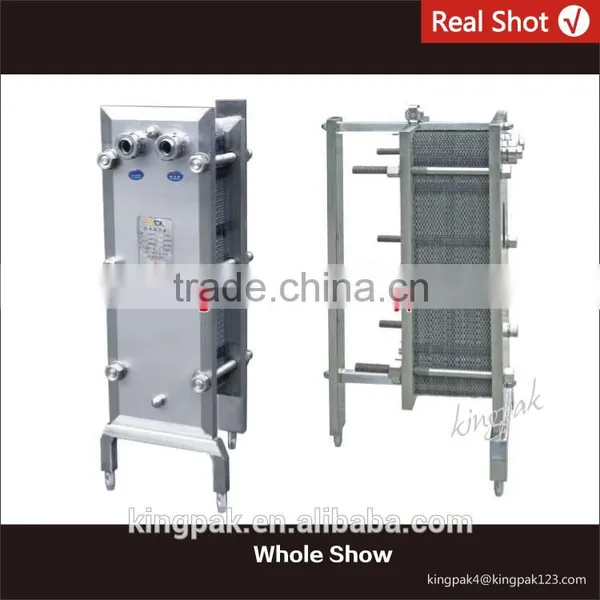

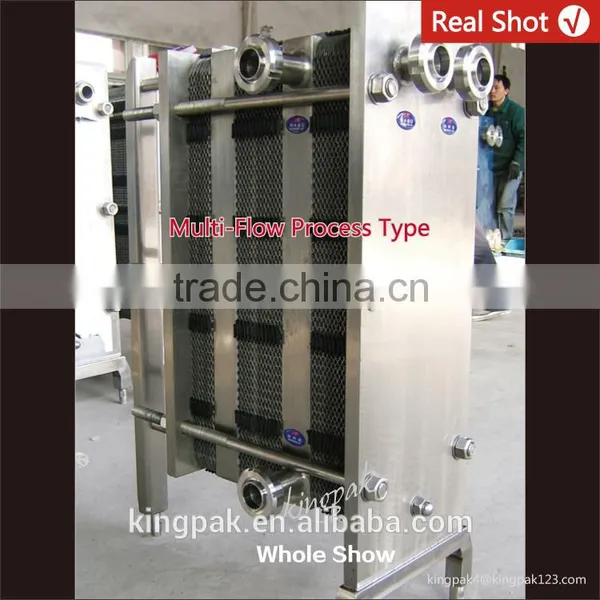

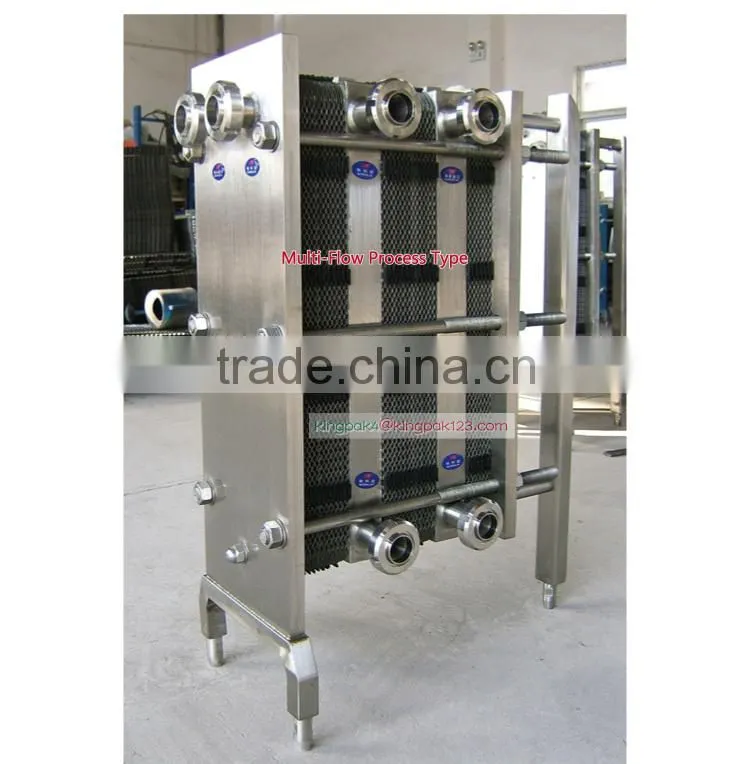

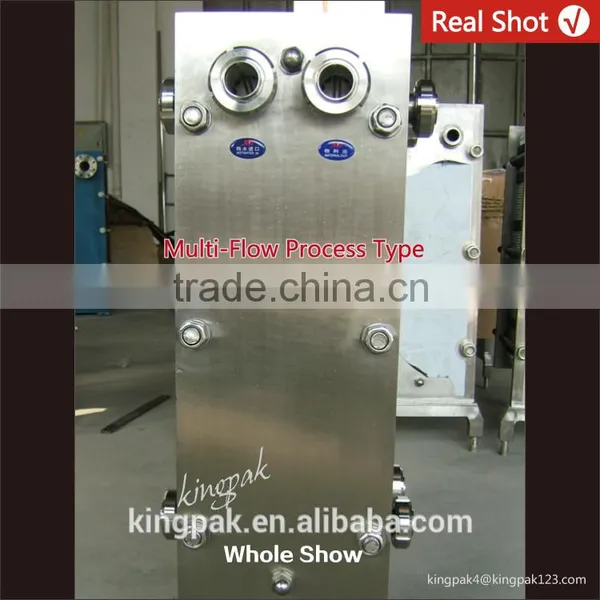

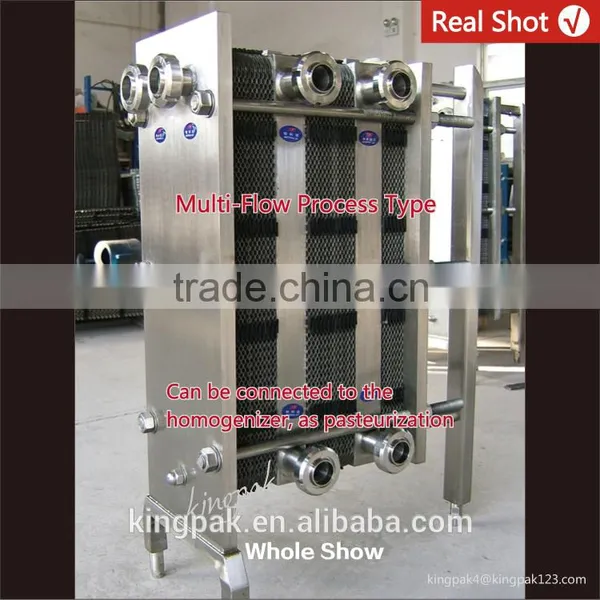

4. Whole Show

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

KINGPAK Fluid Plate Heat Exchanger PriceKINGPAK Fluid Plate Heat Exchanger PriceKINGPAK Fluid Plate Heat Exchanger PriceKINGPAK Fluid Plate Heat Exchanger PriceKINGPAK Fluid Plate Heat Exchanger Price





Enterprise Show

KINGPAK Fluid Plate Heat Exchanger PriceKINGPAK Fluid Plate Heat Exchanger PriceKINGPAK Fluid Plate Heat Exchanger Price

Packaging & Shipping

All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.



All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.



Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.

Shipping methods:

1. Shipping by sea(recommend big product or a lot of goods of the order)

2. By air

3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
