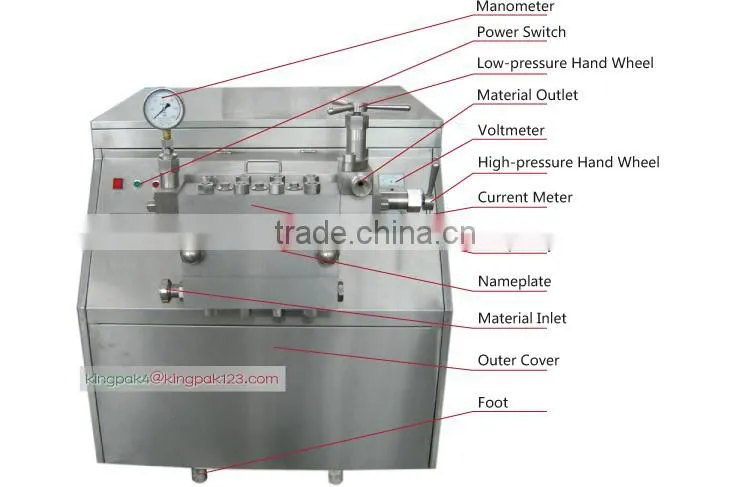

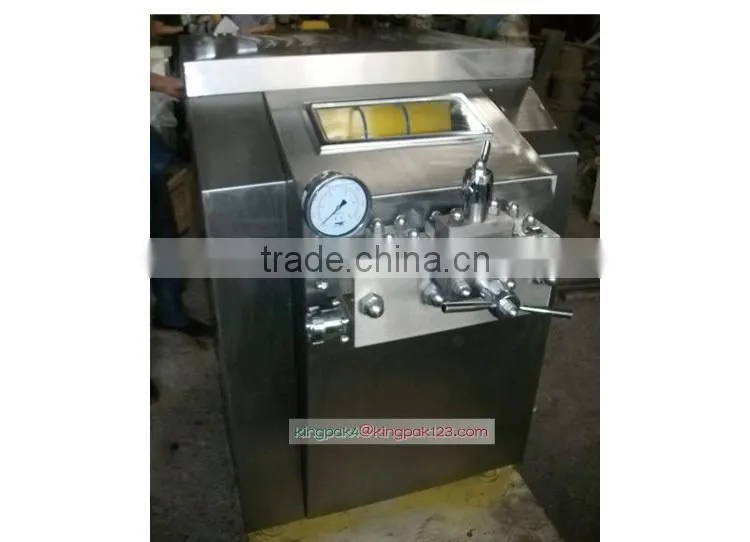

Help CenterGJJ Series Fluid Milk High Pressure Homogenizer
Related Products
-
Stainless Steel Tank Manhole CoverUS$ 50 - 900MOQ: 1 Piece -
KINGPAK Food Grade Stainless Steel Milk Mixing TankUS$ 540 - 20,000MOQ: 1 Unit
-
KINGPAK 1-10tons Water Treatment Reverse Osmosis SystemUS$ 2,450 - 45,900MOQ: 1 Unit
-
JM Series Peanut Butter Colloid Mill/Peanut Butter Making MachineUS$ 250 - 3,200MOQ: 1 Set
-
KINGPAK Fluid Plate Heat Exchanger PriceUS$ 500 - 4,900MOQ: 1 Unit
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Machine name |
Milk High Pressure Homogenizer |
Max. pressure |
25-100Mpa |
Output |
0.2-12t/h |
Medium temperature |
<80 oC |
Particle Size |
0.1-0.2Micron |
Average<1Micron | |
Homogenizing valve material |
Stellite |
Medium viscosity |
≤0.2Pa.s |
Ring temperature |
<150 oC |
Motor power |
1.1-110kw |
Flow medium parts |
304, 316L |
Noise |
≤80db |
Medium |
Liquid state (milk, juice, oil, etc.) |
Note: Due to the escalating changes milk high pressure homogenizer, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview
>The milk high pressure homogenizer is a refined mixture homogeneous liquid material (liquid - liquid, liquid - solid, liquid - powder) and high pressure delivery of special equipment. It is widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological development.
- Scope

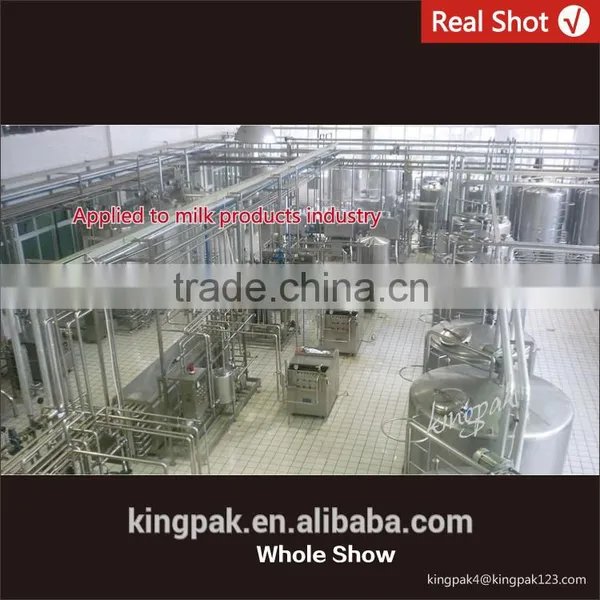

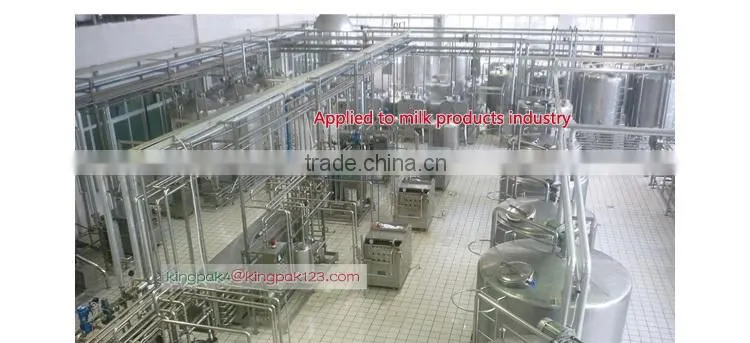

>Milk and other products: make dairy fat globules remarkably refined edible after it is easy to digest and absorb, improve food value.
>Ice cream and other products: to improve the cleanliness and porosity fine liquid material, so that the internal texture has improved significantly.

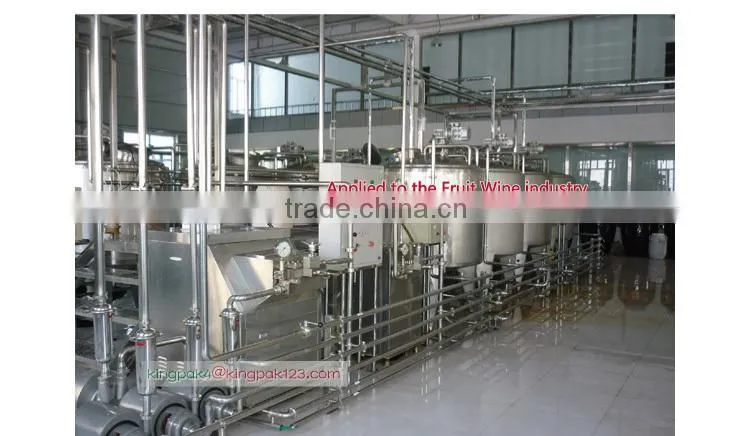

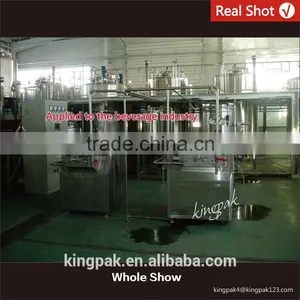

>Juice drinks and other products: can play to prevent or reduce the layered material liquid, liquid material improvement appearance, making it more vivid color.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

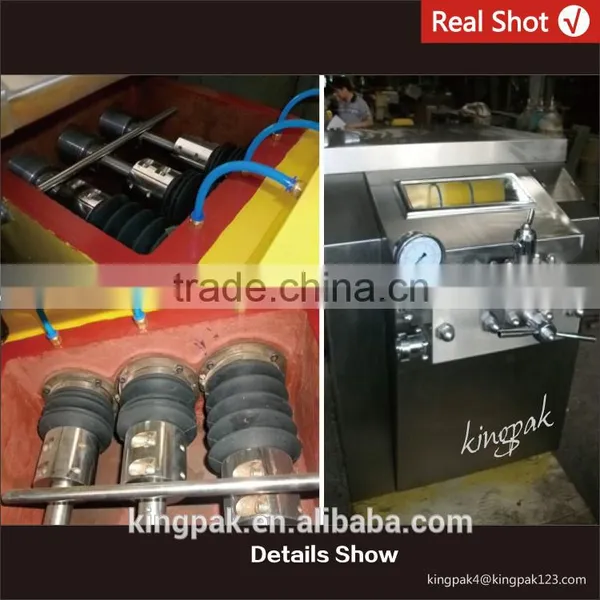

1) Pressure control with bipolar mechanical pressure regulator, adjust convenient, safe and reliable;
2) the plunger with wear-resistant alloys and sprayed alloys, ceramics new technology, resistant to corrosion, wear and other characteristics;
3) high-pressure plunger seal up using self-sealing ring and the V-shaped form, long life;

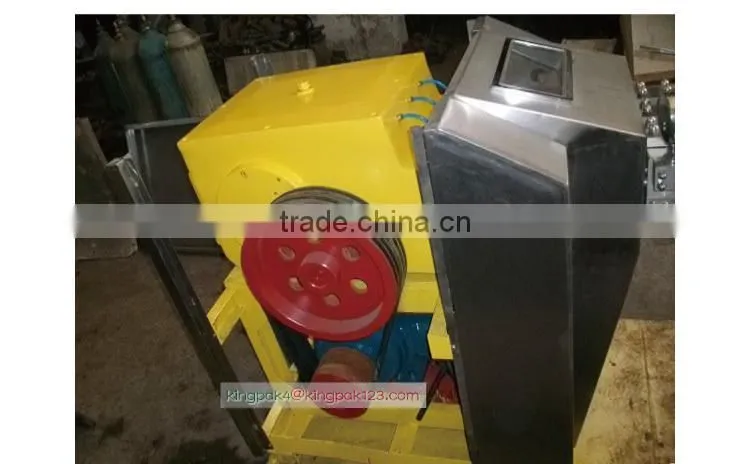

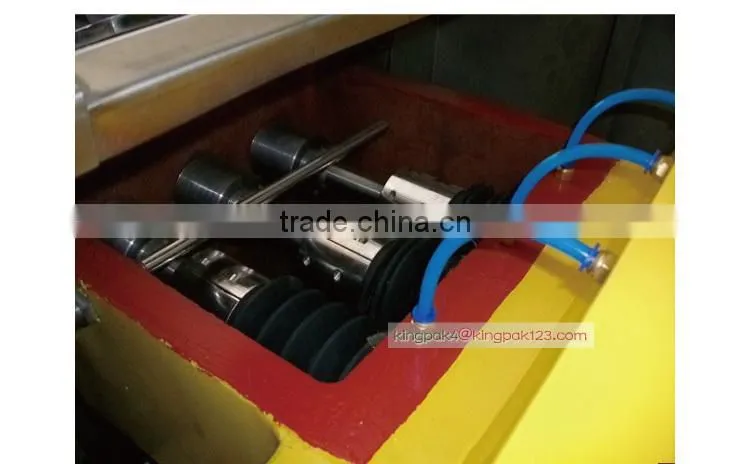

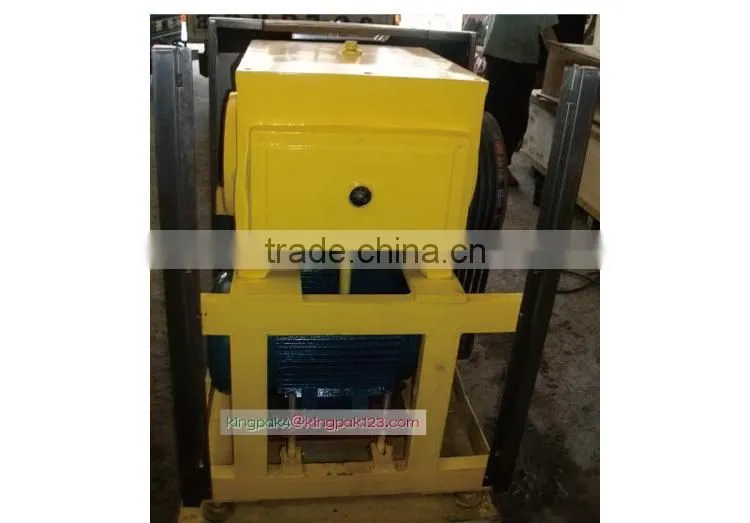

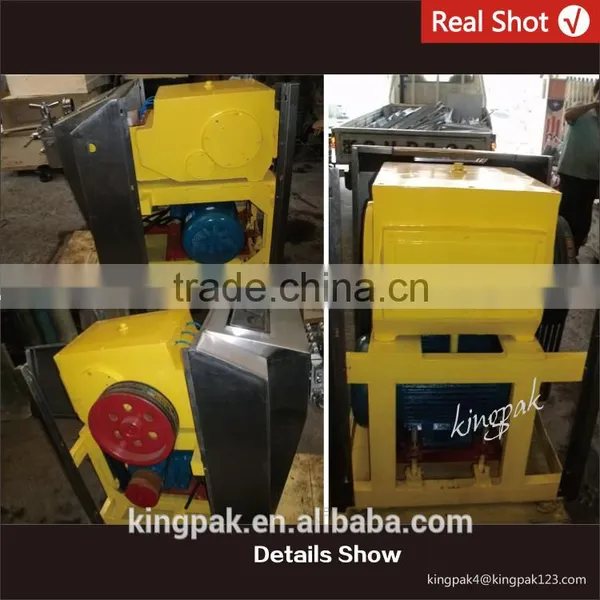

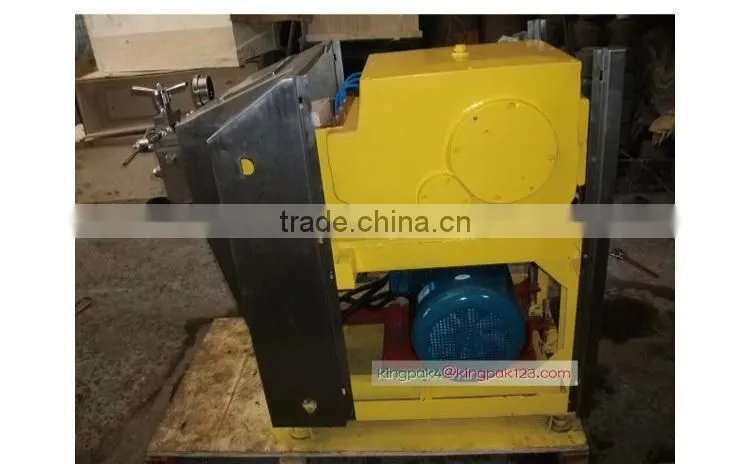

4) using crank drive level transmission, smooth operation, low power loss, low noise;
5) The main components made of stainless steel and corrosion-resistant alloy, in line with food hygiene requirements.

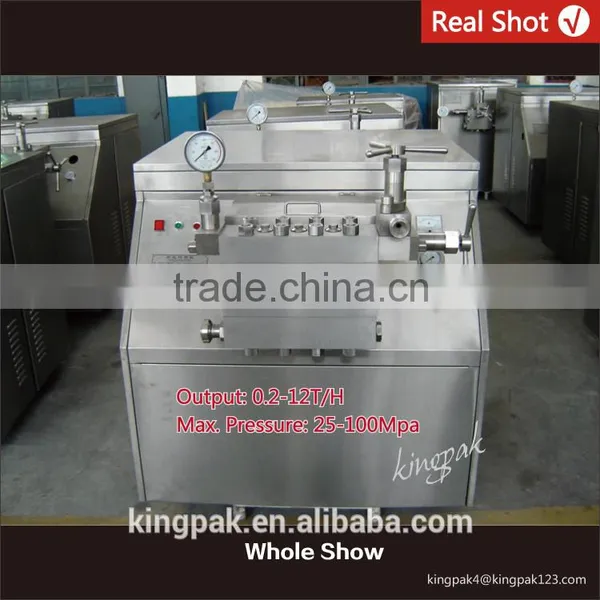

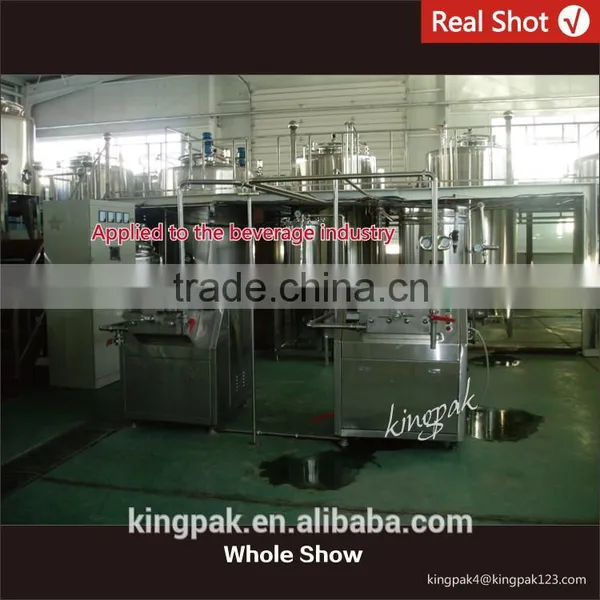

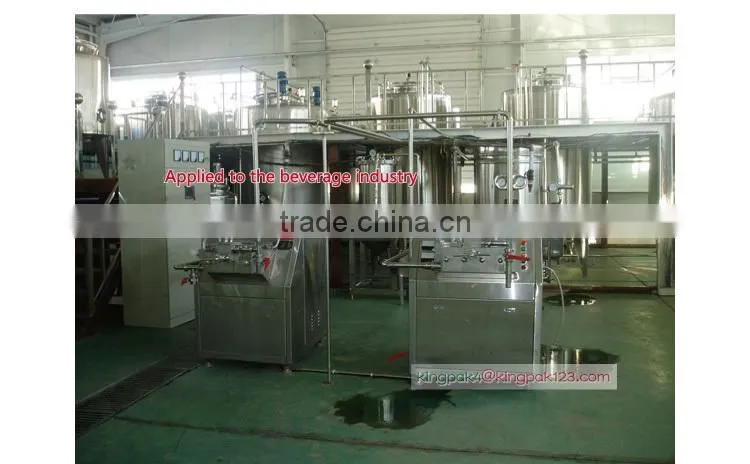

4. Whole Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
