Help CenterKFG50 Semi-Automatic Grain And Granule Filling Machine/Racking Machine
Related Products
-
HP-CD Double Heads Piston Manual Paste Filling MachineUS$ 1,000 - 1,700MOQ: 1 Set -
HP-C Vertical Filling Machine Liquid/Peanut Butter And Jam Filling MachineUS$ 500 - 1,700MOQ: 1 Set
-
HP-C Single Head Semi Automatic Liquid Filling Machine PriceUS$ 500 - 1,700MOQ: 1 Set
-
HP-CD Double Heads Piston Manual Paste Filling MachineUS$ 1,000 - 1,700MOQ: 1 Set
-
HP-BA Horizontal Automatic Tomato And Hot Sauce Filling MachineUS$ 300 - 650MOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Machine name |
Grain And Granule Filling Machine/Racking Machine |
||
Metering methods |
Measuring cup metering |
||
Operation mode |
Manual |
||
Model |
KFG50 |
KFG100 |
KFG200 |
Filling weight |
10-500g |
500-1000g |
1000-2000g |
Permissible error |
≤±2g |
≤±2g |
≤±2g |
Filling speed |
20-40pcs/min |
10-35pcs/min |
10-35pcs/min |
Power supply |
AC 220V/50Hz 110V/60Hz |
AC 220V/50Hz 110V/60Hz |
AC 220V/50Hz 110V/60Hz |
Power |
180w |
180w |
180w |
Dimensions |
650*450*1600mm |
650*500*1800mm |
650*500*1800mm |
Weight |
150kg |
170kg |
170kg |
Note: Due to the escalating changes grain and granule filling machine/racking machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview
>KFG series grain and granule filling machine/racking machine with adjustable cups and measuring devices, different filling volume replacement measuring cup depending on the material, widely used in food, daily chemical, pharmaceutical, agricultural and other industries grain filling.
>For example, melon seeds, peanuts, salt, sugar, seed, rice, mung bean, desiccant, small nut, hardware and other accessories can be used for loose grain filling.
>From the perspective of the economic cost, especially suitable for small production or seasonal strong product measured dispensing.
>Materials shape for the long cord-like, irregular shape, you need to use a spiral disk model.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
◊ Economical and practical, easy to operate.
◊ All stainless steel construction, corrosion-resistant, easy to clean.
◊ Easy to be used in conjunction with other packaging equipment compatibility.
◊ Precise filling volume in place, the rejection rate.
◊ Compact and simple structure, low maintenance costs and long service life.

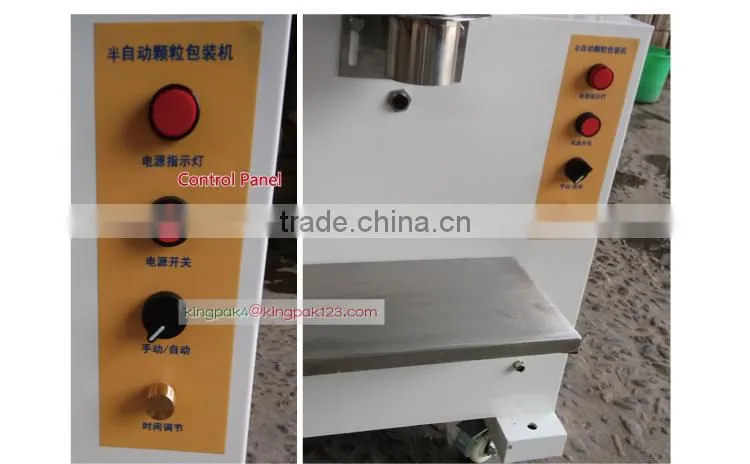

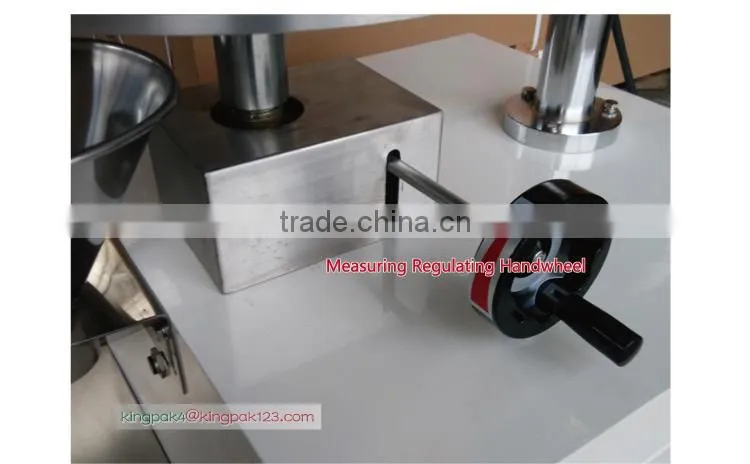

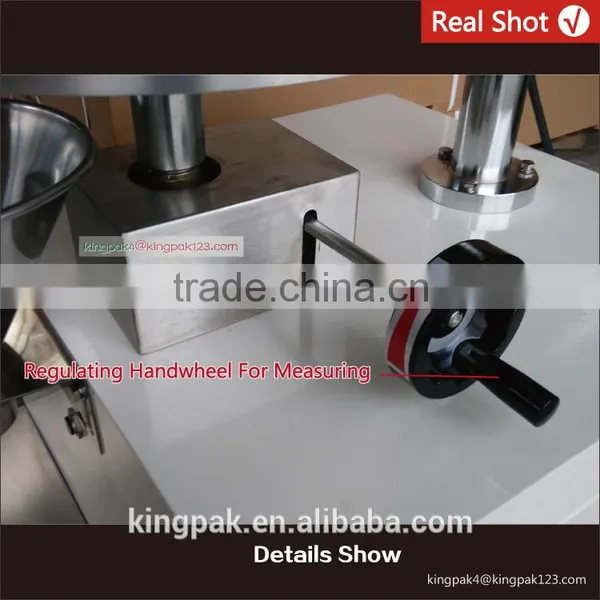

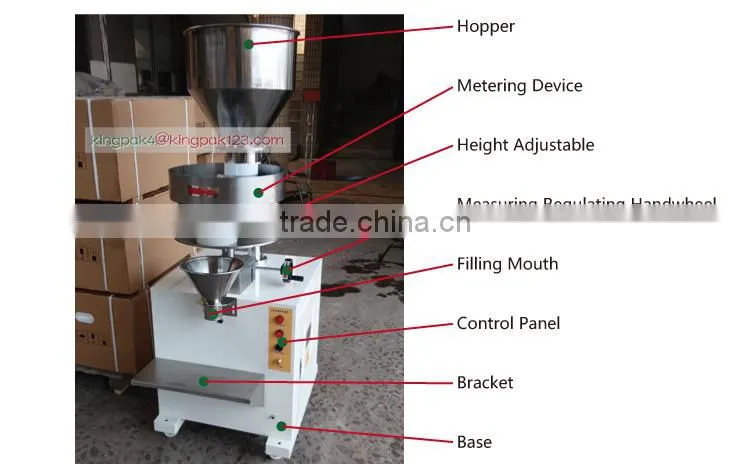

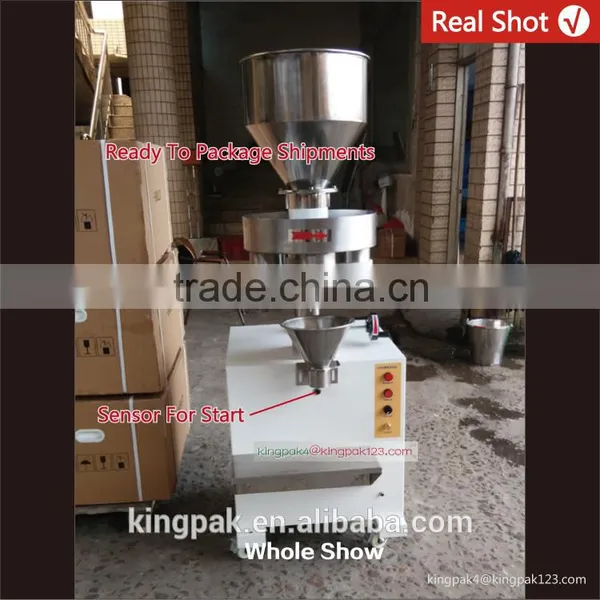

4. Whole&Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
