1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Machine name |
Double Heads Piston Manual Paste Filling Machine |
Model |
HP-CD |
Metering methods |
Pistons quantitative |
Mode of operation |
Foot or automatic |
Filling container |
Arbitrary shape |
Filling range |
25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml |
Filling speed |
80 bottles/min ( according to the material characteristics and filling volume set ) |
Filling precision |
≤2% |
Hopper capacity |
50L |
Air pressure |
0.4-0.6Mpa |
Voltage |
220v/50hz |
Power |
20w |
Dimension |
1050*600*1390mm |
Weight |
55Kg (50-500ml) |
Note: Due to the escalating changes piston manual paste filling machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview
>Double heads piston manual paste filling machine for pharmaceutical, cosmetic, food, pesticides and special industries, is the ideal liquid filling equipment.
>The machine is semi-automatic piston type, reasonable design, compact, easy to operate.

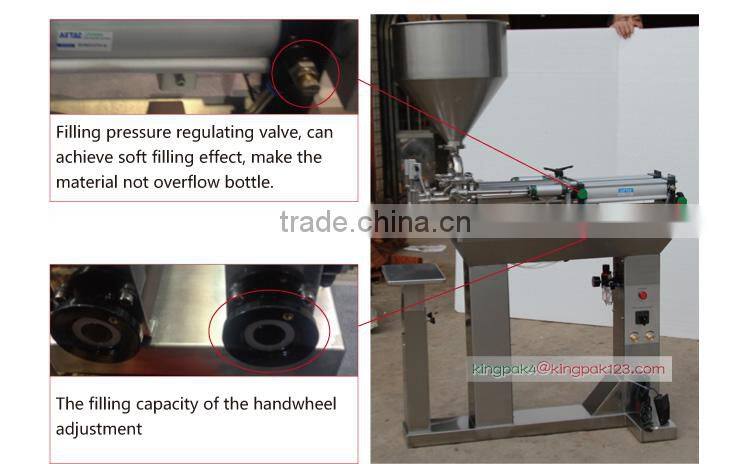

>Filling volume and filling speed can be adjusted, filling accuracy. Filling head adopts anti-leakage, anti-pull and lifting filling device.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

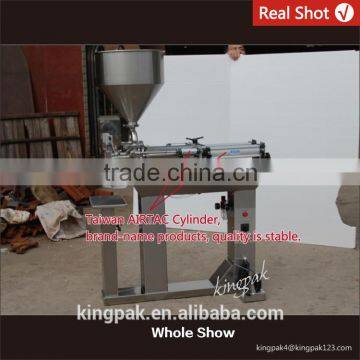

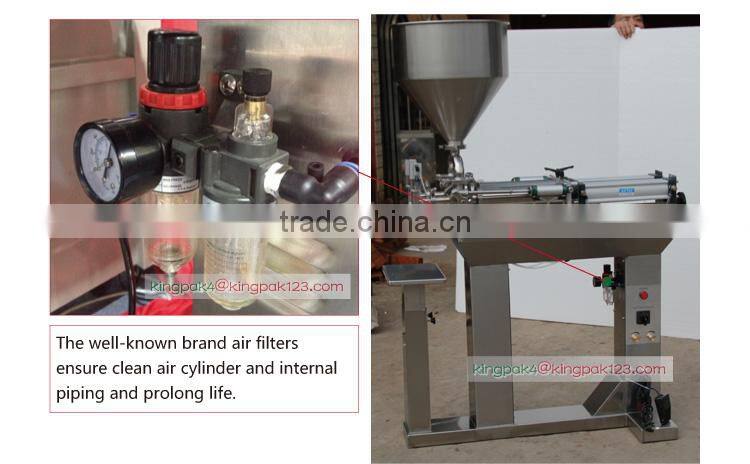

♦ The well-known brand pneumatic components, low failure rate, stable performance.
♦ Using compressed air as power, highly secure, particularly suitable for use in explosion-proof requirements of environment.
♦ And material contact parts are made of high quality stainless steel, meet the health requirements.
♦ Filling volume and filling speed can be adjusted, high precision filling.
♦ Configuring anti-drip filling head, to prevent dripping and stringing.

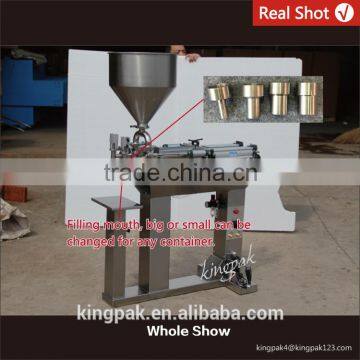

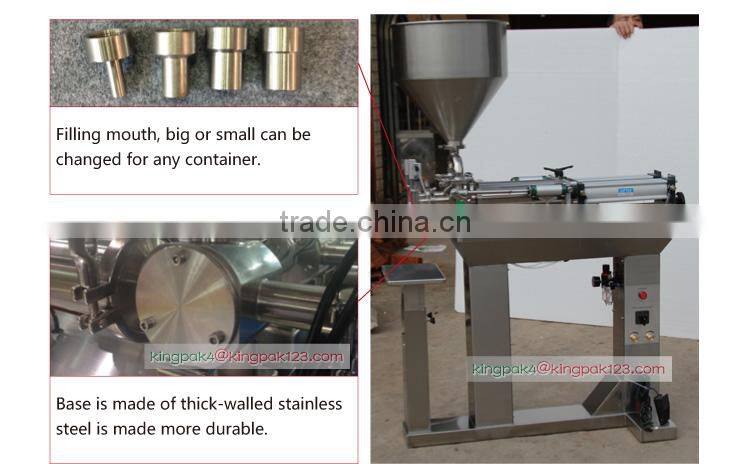

♦ No replacement parts, you can quickly adjust the replacement of different shapes and sizes of bottles, applicability.

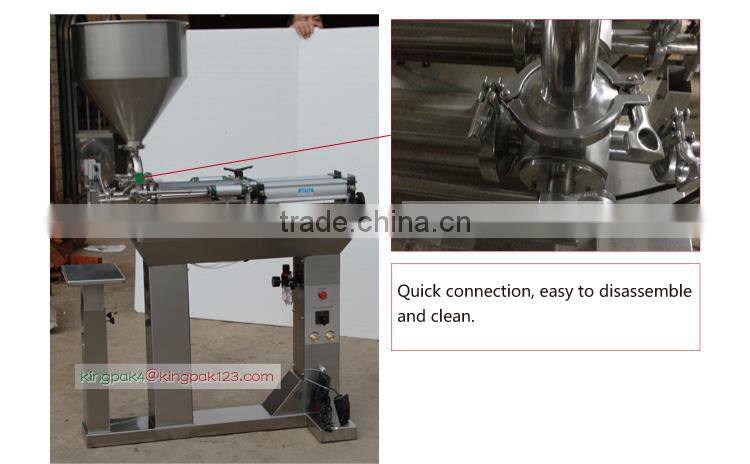

♦ The main components are active connections, easy to disassemble and clean.
♦ A pedal, jog and automatic transfer switch, according to the filling state switch freely.

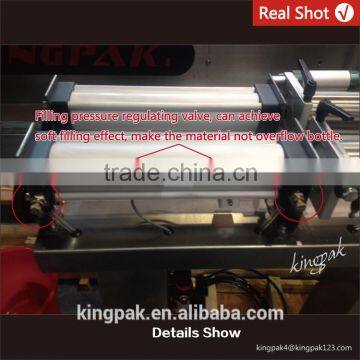

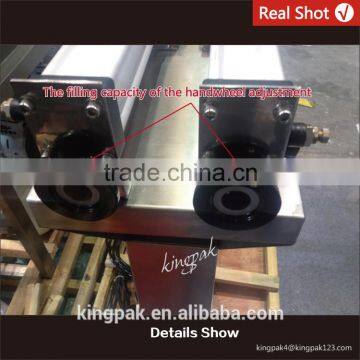

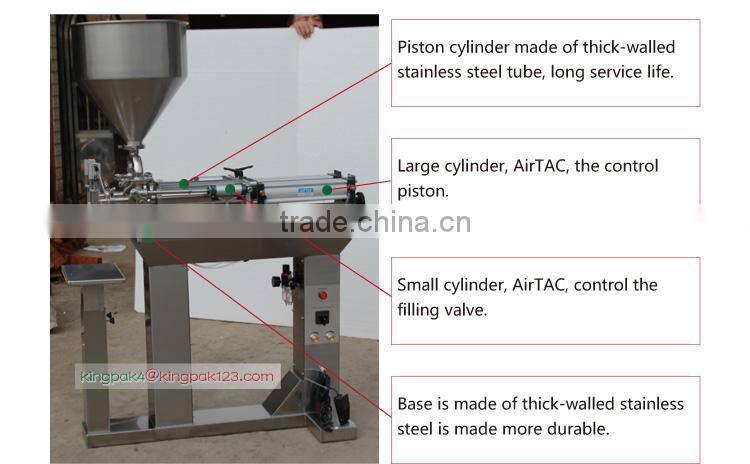

4. Whole&Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
