HP-C Single Head Semi Automatic Liquid Filling Machine Price

HP-C Single Head Semi Automatic Liquid Filling Machine Price photo-1
HP-C Single Head Semi Automatic Liquid Filling Machine Price photo-2

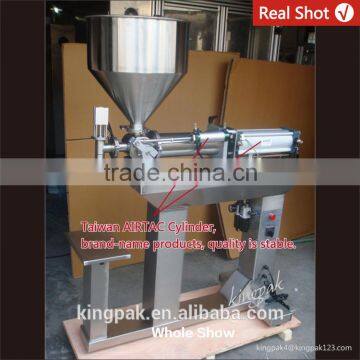

HP-C Single Head Semi Automatic Liquid Filling Machine Price photo-3
HP-C Single Head Semi Automatic Liquid Filling Machine Price photo-4

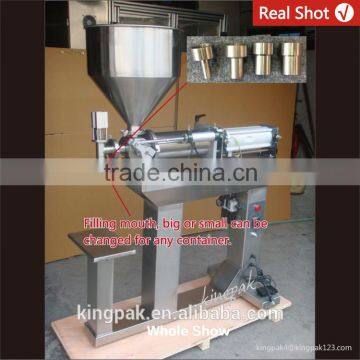

HP-C Single Head Semi Automatic Liquid Filling Machine Price photo-5
HP-C Single Head Semi Automatic Liquid Filling Machine Price photo-6
US$ 500 - 1,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Food, Medical
Packaging Type:
Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Food, Medical
Packaging Type Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch
Packaging Material Glass, Metal, Paper, Plastic, Wood
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220v/50hz 110v/60hz
Power 20w
Place of Origin Zhejiang, China
Brand Name kingpak
Model Number Liquid Filling Machine
Dimension(L*W*H) 1050*500*1390mm
Weight 50Kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Product Overview



1. Specifications

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Machine name

Single Head Semi Automatic Liquid Filling Machine

Model

HP-C

Metering methods

Pistons quantitative

Mode of operation

Foot or automatic

Filling container

Arbitrary shape

Filling range

25-250ml, 50-500ml, 100-1000ml,

250-2500ml, 500-5000ml

Filling speed

40 bottles/min

( according to the material characteristics and filling volume set )

Filling precision

2%

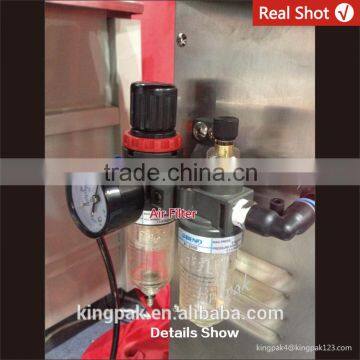

Air pressure

0.4-0.6Mpa

Voltage

220v/50hz

Power

20w

Dimension

1050*500*1390mm

Weight

50Kg (50-500ml)

Note: Due to the escalating changes semi automatic liquid filling machine, the above technical parameters for reference only, to prevail in kind, please understand!



2. Basic Introduction

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

- Overview

 >Pneumatic semi automatic liquid filling machine uses compressed air as power, by a precision pneumatic components constitute an automatic filling system, simple structure, reliable sensitive action, convenient adjustment.

 >For a variety of liquids, viscous fluids, cream, milk, butter materials such as liquid filling operations.

- Scope

 >The semi automatic liquid filling machine is a pharmaceutical, chemical, food, cosmetics and other industries ideal filling equipment. Humanized design more in line with the requirements of the modern enterprise.



HP-C Single Head Semi Automatic Liquid Filling Machine Price



3. Feature

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

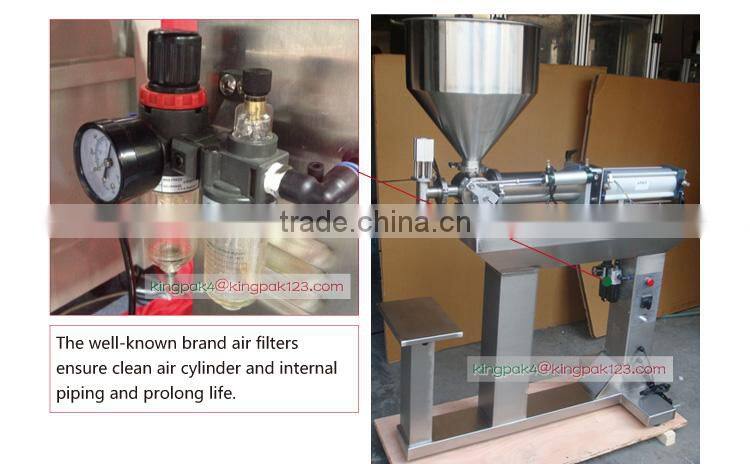

  The well-known brand pneumatic components, low failure rate, stable performance.

  Using compressed air as power, highly secure, particularly suitable for use in explosion-proof requirements of environment.

  And material contact parts are made of high quality stainless steel, meet the health requirements.

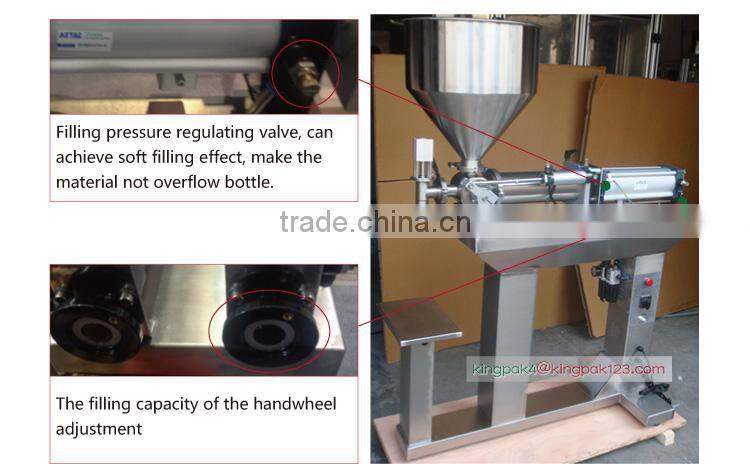

  Filling volume and filling speed can be adjusted, high precision filling.

  Configuring anti-drip filling head, to prevent dripping and stringing.

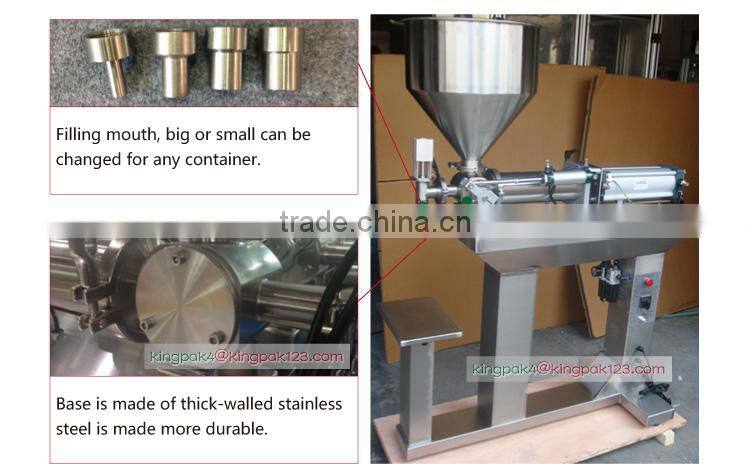

  No replacement parts, you can quickly adjust the replacement of different shapes and sizes of bottles, applicability.

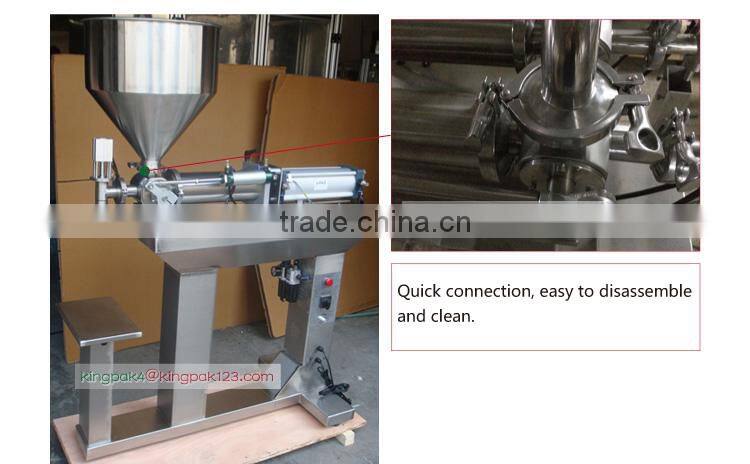

  The main components are active connections, easy to disassemble and clean.

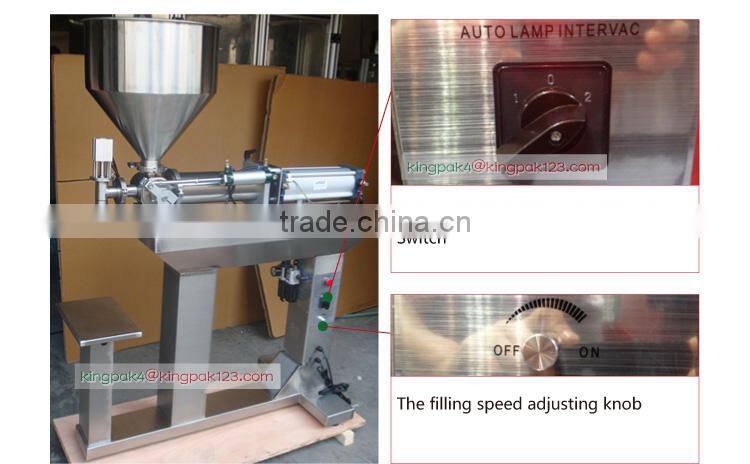

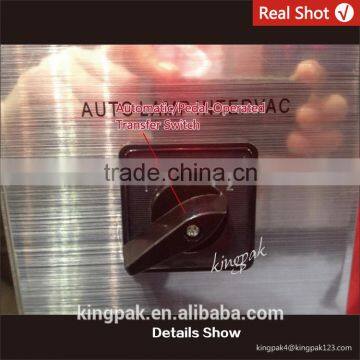

  A pedal, jog and automatic transfer switch, according to the filling state switch freely.



Details Structure

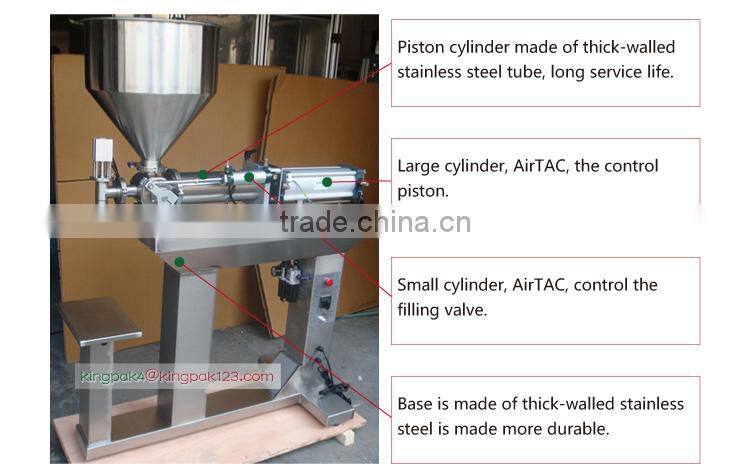

4. Whole&Details Show

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

HP-C Single Head Semi Automatic Liquid Filling Machine PriceHP-C Single Head Semi Automatic Liquid Filling Machine PriceHP-C Single Head Semi Automatic Liquid Filling Machine PriceHP-C Single Head Semi Automatic Liquid Filling Machine PriceHP-C Single Head Semi Automatic Liquid Filling Machine PriceHP-C Single Head Semi Automatic Liquid Filling Machine PriceHP-C Single Head Semi Automatic Liquid Filling Machine PriceHP-C Single Head Semi Automatic Liquid Filling Machine PriceHP-C Single Head Semi Automatic Liquid Filling Machine Price







Enterprise Show

HP-C Single Head Semi Automatic Liquid Filling Machine PriceHP-C Single Head Semi Automatic Liquid Filling Machine PriceHP-C Single Head Semi Automatic Liquid Filling Machine Price

Packaging & Shipping

All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.



All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.



Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.

Shipping methods:

1. Shipping by sea(recommend big product or a lot of goods of the order)

2. By air

3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
