3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine

3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine thumbnail-1
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine thumbnail-2
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine thumbnail-3
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine thumbnail-4
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine thumbnail-5
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine thumbnail-6
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine photo-1
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine photo-2
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine photo-3
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine photo-4
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine photo-5
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine photo-6
US$ 14,600 - 75,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Bottles, Cans
Contact Supplier Request Quote Chat Now
Wenzhou Kingpak Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bottles, Cans
Packaging Material Glass, Metal, Paper, Plastic, Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 3KW
Place of Origin Zhejiang, China
Brand Name kingpak
Model Number Mineral Water Filling Machine
Dimension(L*W*H) 2000*1600*2500mm
Weight 500kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Product Overview



1. Specifications

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Model

Capacity

Bottle Size

Power

Dimensions

KPF16/12-5

4000BPH

Bottle diameter:

50-110mm

Bottle height:

150-320mm

3kw

2000*1600*2500mm

KPF16/16-5

6000BPH

3kw

2200*1600*2500mm

KPF18/18-8

8000BPH

3.2kw

2400*1700*2500mm

KPF20/20-8

10000BPH

3.2kw

2400*1700*2500mm

KPF24/24-10

12000BPH

4kw

3000*2000*2500mm

KPF32/32-12

16000BPH

5kw

3500*2500*2500mm

KPF40/40-12

18000BPH

5kw

3600*3300*2500mm

Note: Due to the escalating changes mineral water filling machine, the above technical parameters for reference only, to prevail in kind, please understand!



2. Basic Introduction

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

- Overview

 >This series of mineral water filling machine-washing, filling, capping into one, for a variety of pure water, mineral water, fruit juice, tea drinks, carbonated drinks and other production.

 >The use of advanced micro-negative pressure filling principle, filling fast, steady, accurate, with a sound material return system, can also be realized when the reflux independent return air, without contact with the material, reduce the second time pollution and oxidation.



3. Feature

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

 ♦ This machine can meet 95 degrees Celsius hot filling technology requirements, filling valves and beverage conducting pipes sanitary corner.

 ♦ With self-cleaning CIP interface Before capping the bottle RO water washing device, in order to ensure that the bottle no moldy imagination.

 ♦ Magnetic torque screw lid, to achieve grasping cap, screw cap function. Capping moment stepless adjustable, with constant torque rotation feature sealed plastic cover.

 ♦ The human machine interface touch screen control, PLC computer program control, inverter control and other advanced technologies.

 ♦ With a cover system for automatic control, automatic detection of filling temperature, material temperature alarm, low temperature shutdown and automatic return, no bottle no capping, no bottle waiting, lack of cover shut-down.





Details Structure

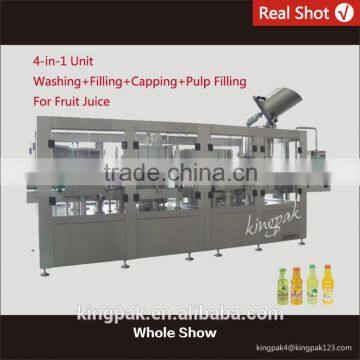

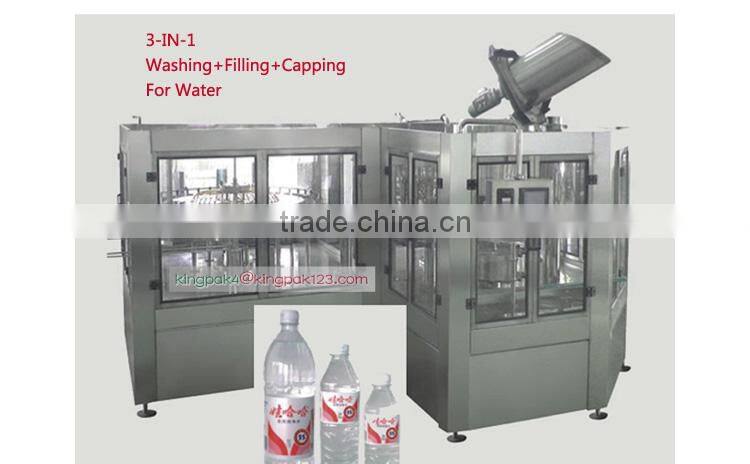

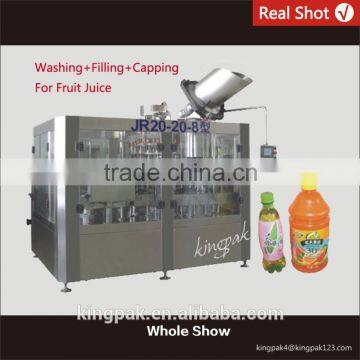

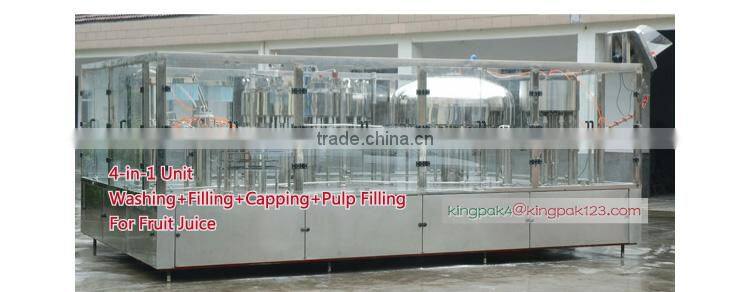

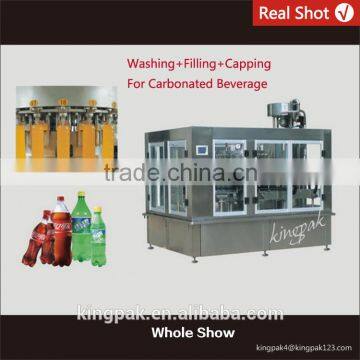

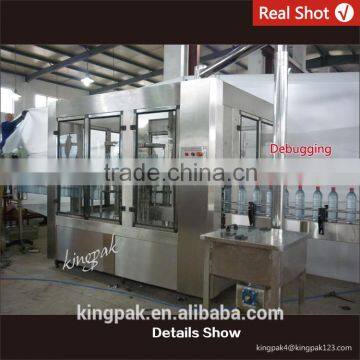

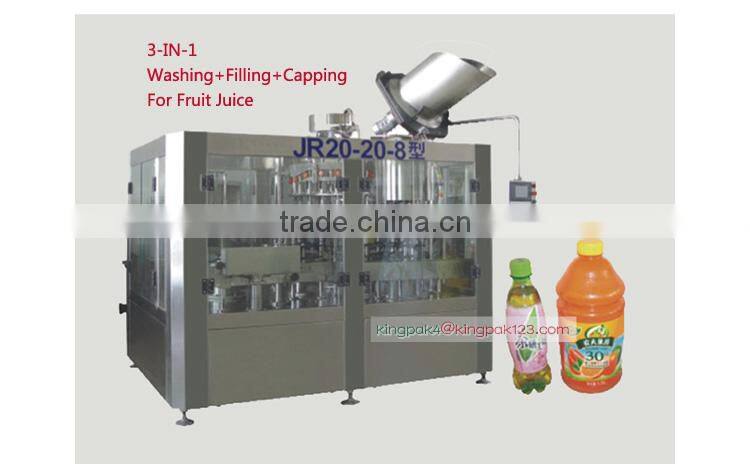

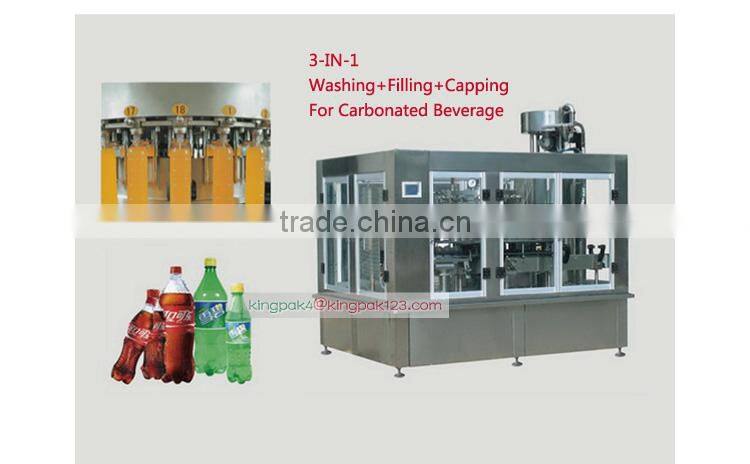

4. Whole&Details Show

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine

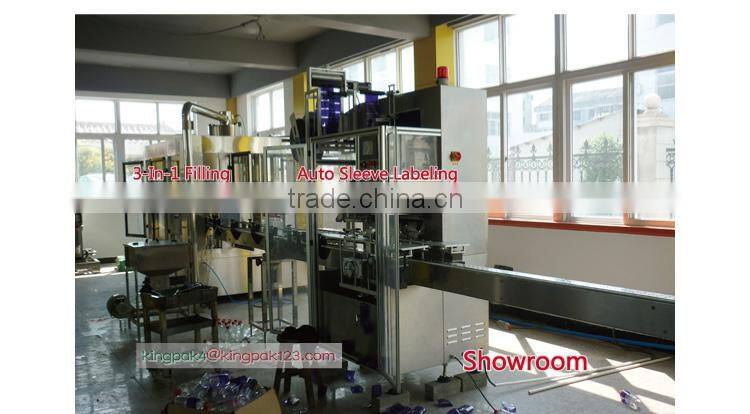

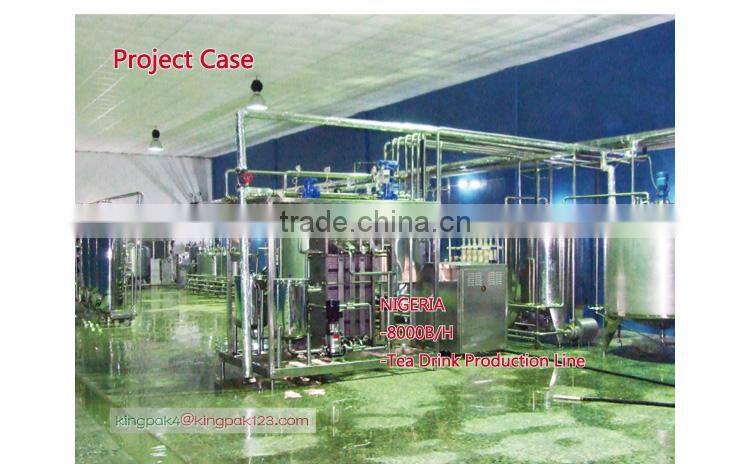

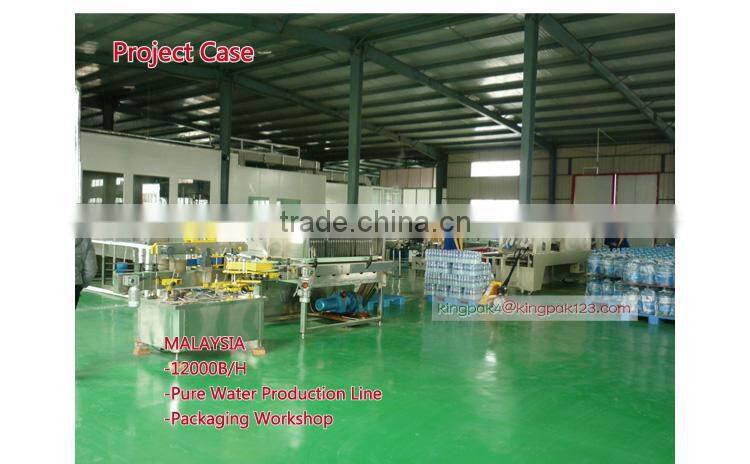

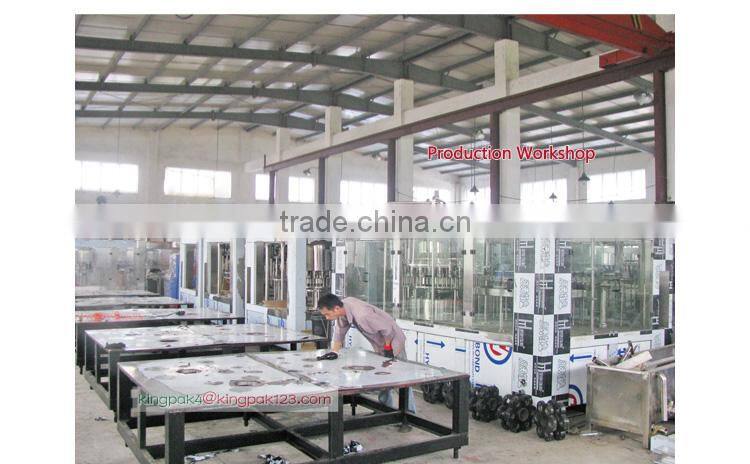

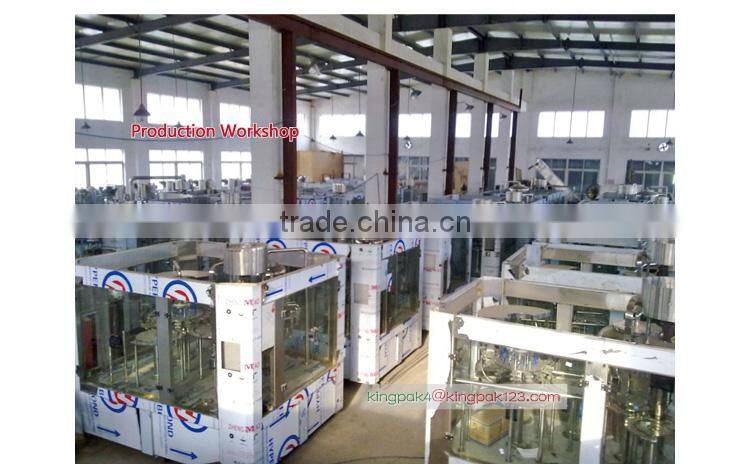

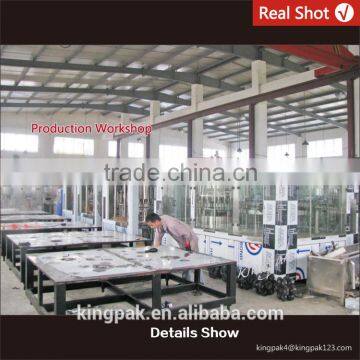

Enterprise Show

3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling Machine

Packaging & Shipping

All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.



All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.



Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.

Shipping methods:

1. Shipping by sea(recommend big product or a lot of goods of the order)

2. By air

3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
