Help CenterRP200 Microcomputer Control Syrup And Honey Stick Filling Machine
Related Products
-
RP200 With Mobile Workbench Manual High Viscosity Liquid Filling MachineUS$ 830 - 1,570MOQ: 1 Set -
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling MachineUS$ 14,600 - 75,000MOQ: 1 Set
-
KF2000P Screw Metering Manual Small Powder Filling MachineUS$ 4,000 - 6,500MOQ: 1 Set
-
KFG50 Semi-Automatic Grain And Granule Filling Machine/Racking MachineUS$ 900 - 1,650MOQ: 1 Set
-
HP-CD Double Heads Piston Manual Paste Filling MachineUS$ 1,000 - 1,700MOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Machine name |
Syrup And Honey Stick Filling Machine |
Model |
RP-200 |
Control system |
Microprogrammed Control Unit |
Metering methods |
Gear pump |
Working methods |
Intermittent filling |
Operation mode |
Foot or automatic |
Filling container |
Arbitrary shape |
Filling range |
10 -100,000 ml |
Filling speed |
10-80 times / minute |
Filling accuracy |
≤2% |
Filling Capacity |
Max.6L/min. |
Filling interval |
0-99.99 seconds (adjustable) |
Filling heads |
1 head (Optional) |
Flow medium parts |
SS304 or SS316L |
Power supply |
220V / 50Hz |
Power |
0.3 kw |
Air pressure |
0.4-0.7 Mpa |
Dimensions |
600*200*350mm |
Weight |
21Kg |
Note: Due to the escalating changes syrup and honey stick filling machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview
>The syrup and honey stick filling machine is to use the principle of gear pump, controlled by a microcomputer filling volume and speed liquid filling into containers for liquids wide adaptability, accurate measurement.
>The machine can be widely used in the honey, cream, detergent, pure water, cosmetics, edible oil, lubricating oil, wine, spices, pharmaceuticals, pesticides and other chemical products, liquid filling. No requirement for the filled containers, suitable for any shape.

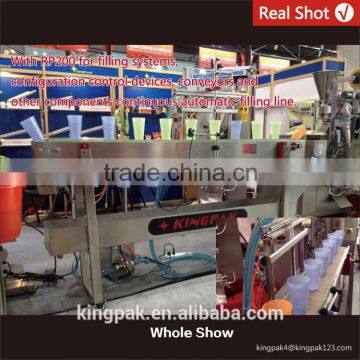

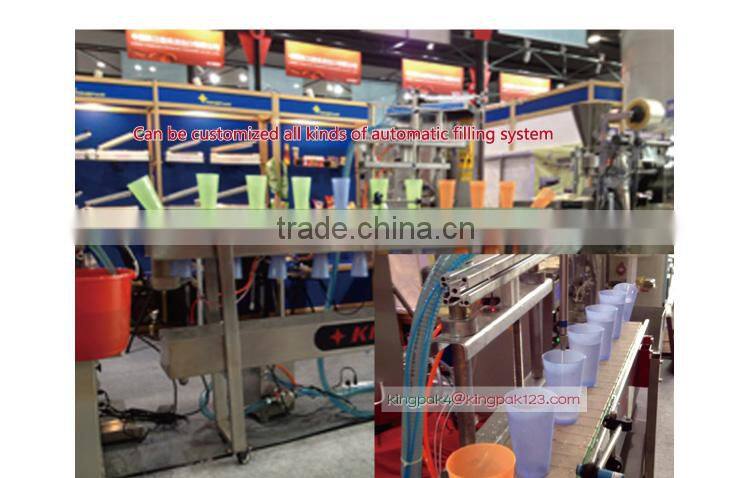

>The syrup and honey stick filling machine can do alone apply online delivery device can also be configured to use a conveyor belt can hold up to 1-6 units.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
♦ The well-known brand pneumatic components, low failure rate, stable performance.
♦ Using compressed air as power, highly secure, particularly suitable for use in explosion-proof requirements of environment.
♦ And material contact parts are made of high quality stainless steel, meet the health requirements.
♦ Filling volume and filling speed can be adjusted, high precision filling.
♦ Configuring anti-drip filling head, to prevent dripping and stringing.
♦ No replacement parts, you can quickly adjust the replacement of different shapes and sizes of bottles, applicability.
♦ The main components are active connections, easy to disassemble and clean.
♦ A pedal, jog and automatic transfer switch, according to the filling state switch freely.

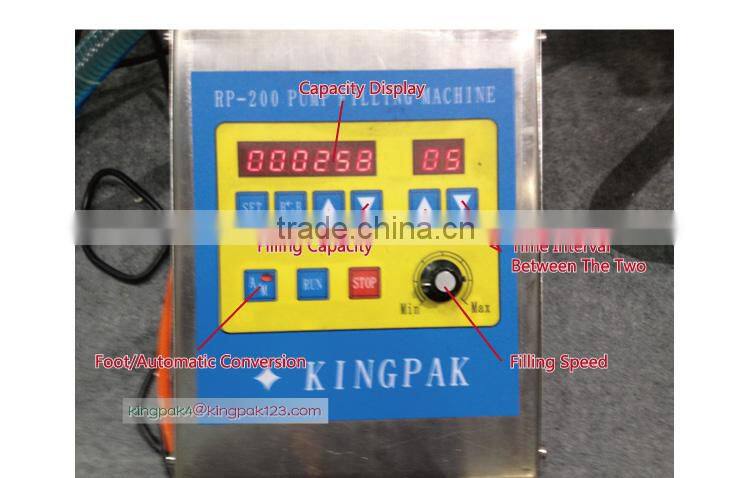

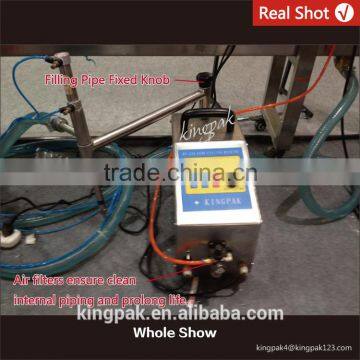

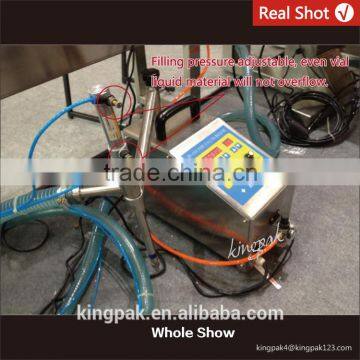

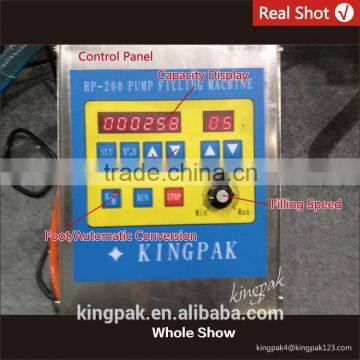

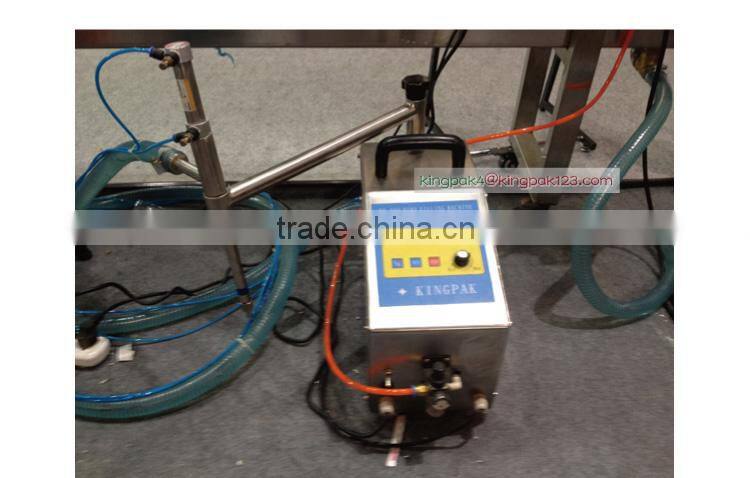

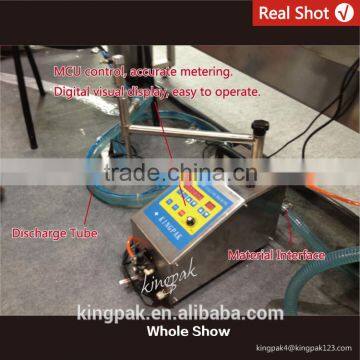

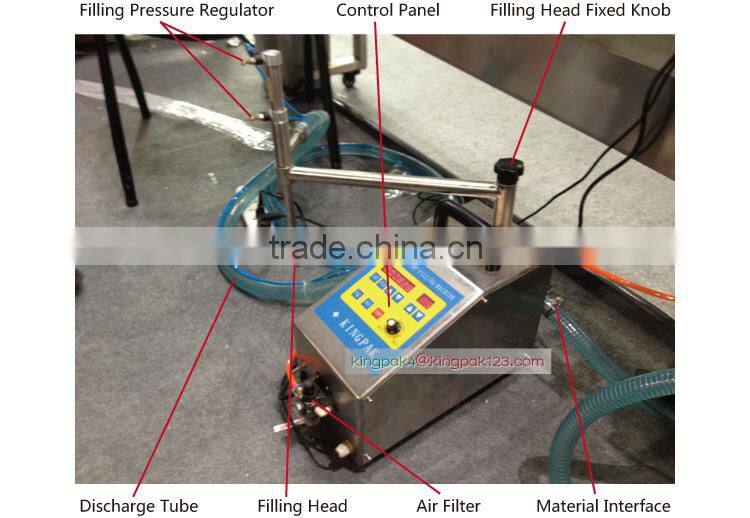

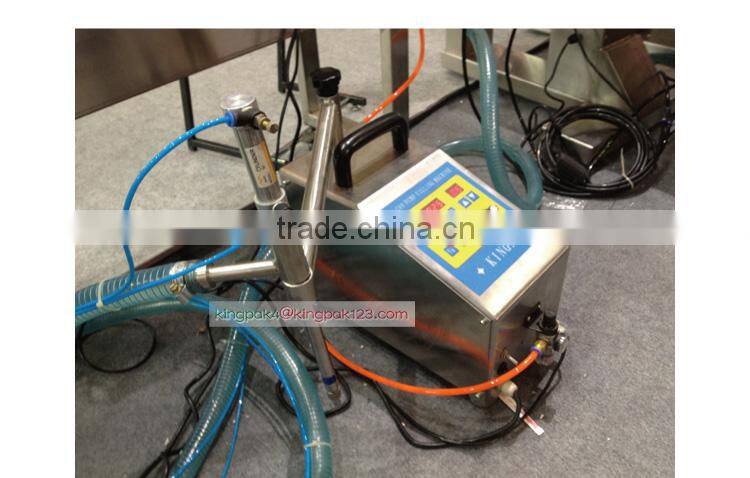

4. Whole&Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
