Help CenterCBP-8C Automatic Liquid Bottle Filling Machine Price
Related Products
-
HP-6C Continuous Edibl And Olive Oil Bottle Filling MachineUS$ 3,200 - 9,600MOQ: 1 Set -
RP200 Microcomputer Control Syrup And Honey Stick Filling MachineUS$ 630 - 1,200MOQ: 1 Set
-
RP200 With Mobile Workbench Manual High Viscosity Liquid Filling MachineUS$ 830 - 1,570MOQ: 1 Set
-
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling MachineUS$ 14,600 - 75,000MOQ: 1 Set
-
KF2000P Screw Metering Manual Small Powder Filling MachineUS$ 4,000 - 6,500MOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Machine name |
Automatic Liquid Bottle Filling Machine |
Model |
CBP-8C |
Metering methods |
Pistons quantitative |
Filling container |
Arbitrary shape |
Filling range |
25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml |
Filling speed |
100-250 per head (400-2000bottles / hour) |
Filling heads |
4-8 head (Optional) |
Filling precision |
≤2% |
Air pressure |
0.4-0.6Mpa |
Voltage |
220v/50hz |
Power |
1000w |
Dimension |
6000*1000*2400mm |
Weight |
420 Kg |
Note: Due to the escalating changes automatic liquid bottle filling machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview
>Automaticliquid bottle filling machine is based on the improved design, and added some additional features. The product in use, accuracy error, installed capacity adjustments, equipment cleaning, maintenance, etc. is more simple and convenient.
>The automatic liquid bottle filling machine is suitable for chemical, food, cosmetic, pharmaceuticals, pesticides, oil and other liquid, paste, sauce, and other substances containing particles of liquid quantitative filling.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

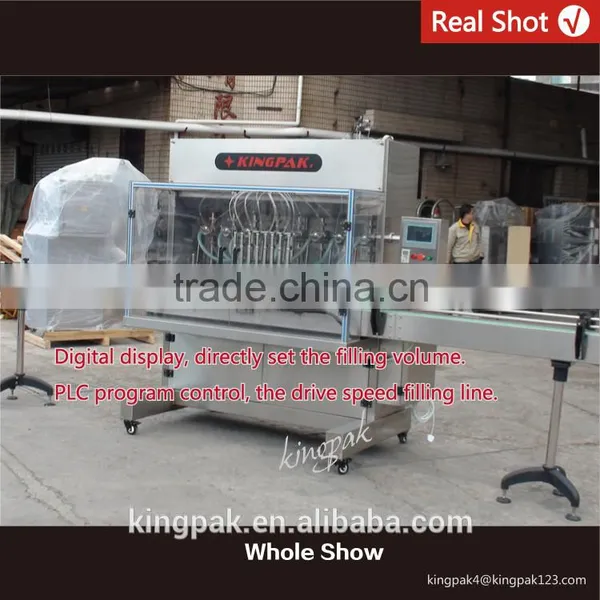

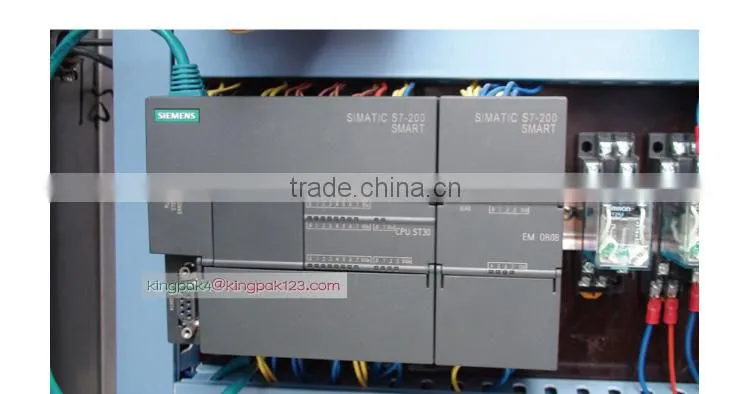

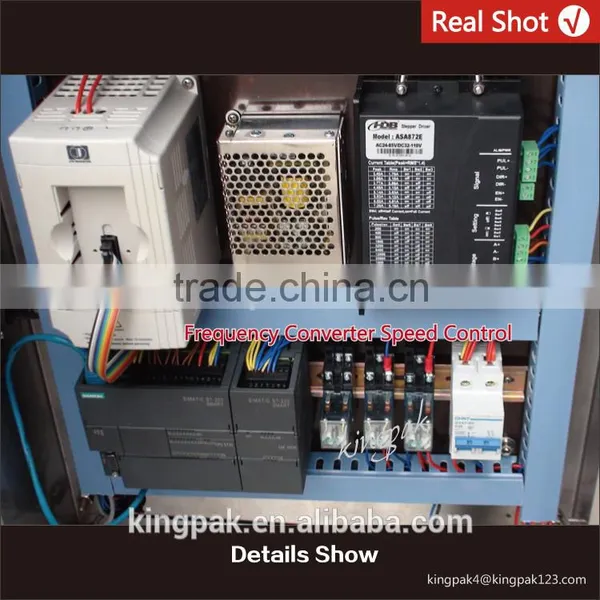

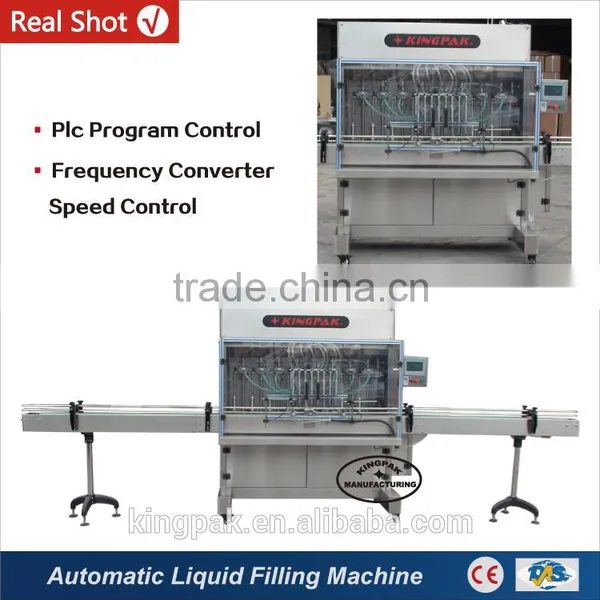

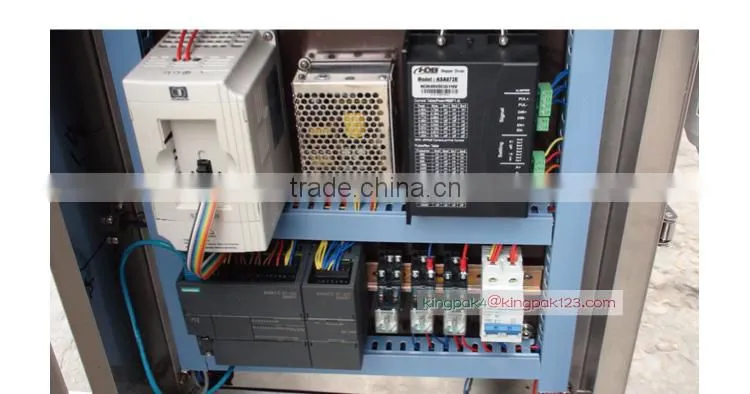

♦ Digital display, directly set the filling volume. PLC program control, the drive speed filling line.

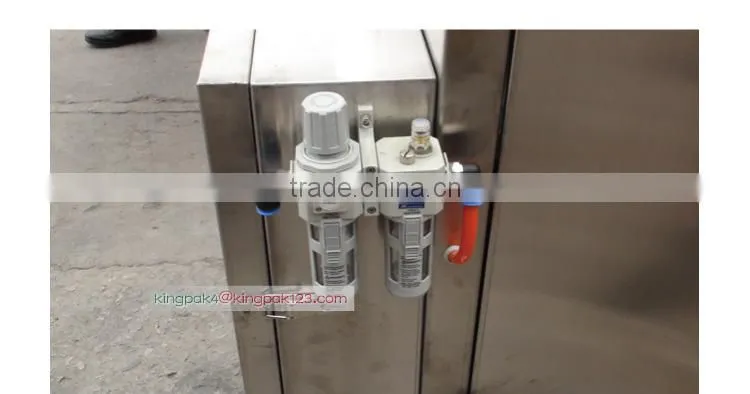

♦ Well-known brand of electrical and pneumatic components, the failure rate is low, stable and reliable performance, long life.
♦ Contact with the materials are made of stainless steel, disassembly is simple, easy to clean, with food hygiene requirements.
♦ Filling volume and filling speed adjustment is simple, with no bottle no filling function.

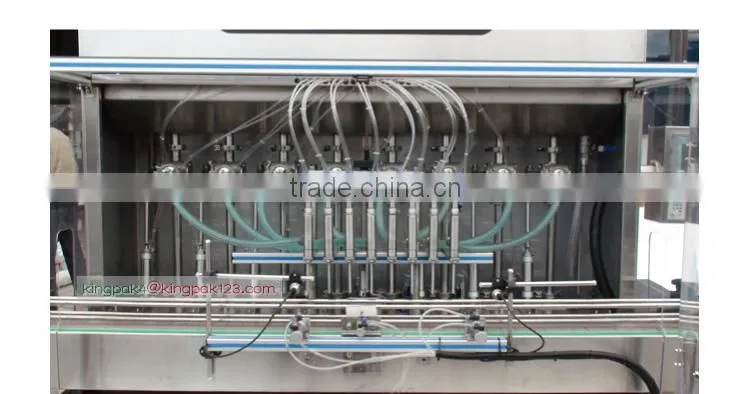

♦ Filling nozzle with anti-drip device to ensure that the filling without drawing, does not drip.
♦ No replacement parts, you can quickly adjust the replacement of different shapes and sizes of bottles, applicability.
♦ According to customer requirements and can be installed Bottle capping unit.

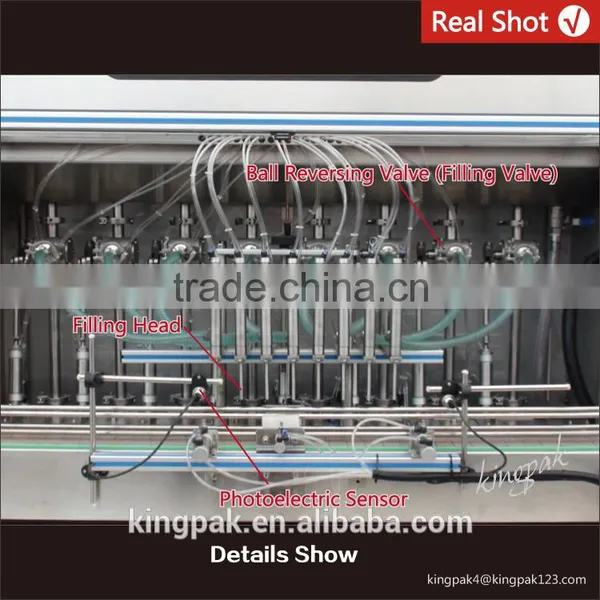

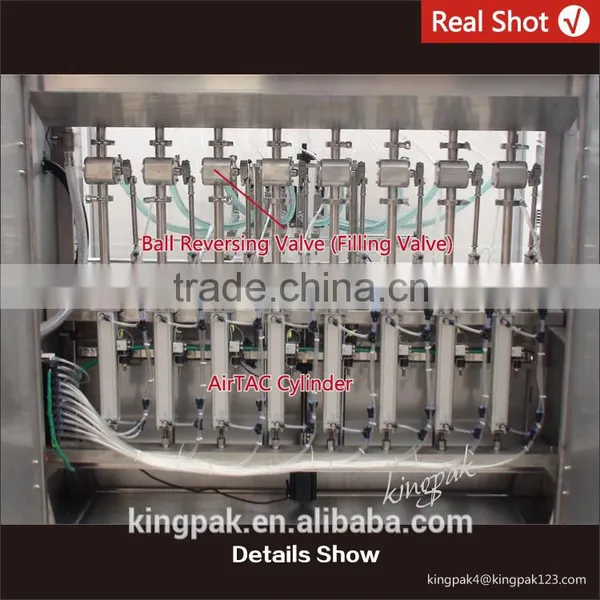

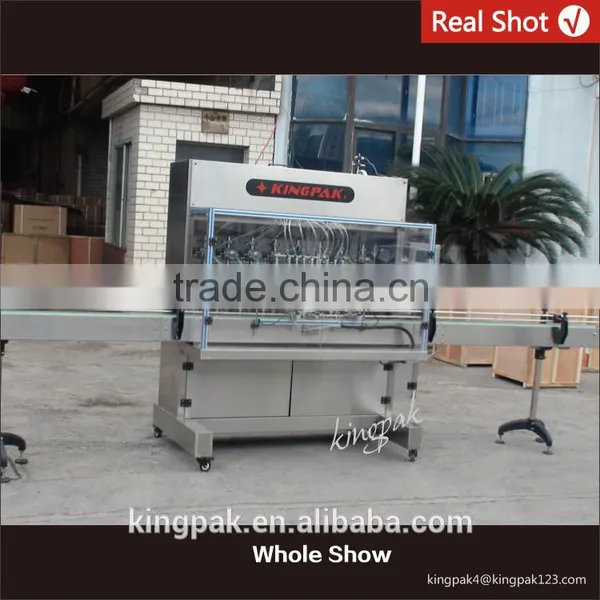

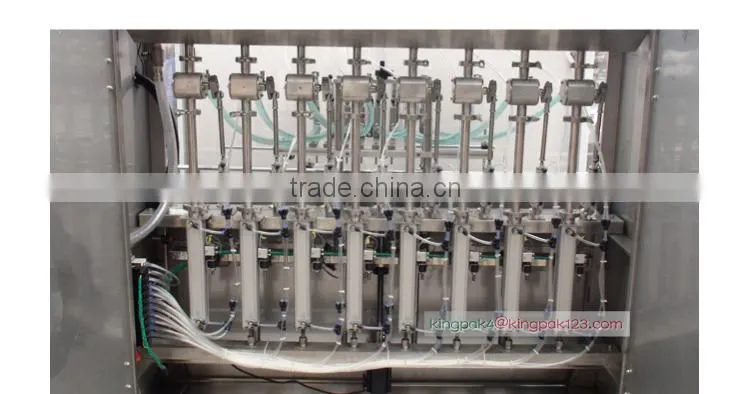

4. Whole&Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
