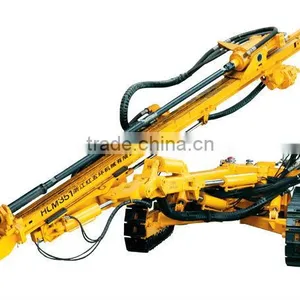

Blast Hole Crawler Drill Rigs HCM351 Crawler Drill Rig
US$ 10,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Other, Compressored air
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HCM451 Crawler Drill Rig Blast Hole Drill RigUS$ 10,000 - 80,000MOQ: 1 Set -
All-Hydraulic Driver Crawler Drilling Rig CMJ2-18 China Drilling RigUS$ 10,000 - 80,000MOQ: 1 Set
-
Air Drilling Rig HC725BUS$ 10,000 - 80,000MOQ: 1 Set
-
Blast Hole Crawler Drill Rigs HC725A for MiningUS$ 10,000 - 80,000MOQ: 1 Set
-
Blast Hole Drill Rig HC725A for MiningUS$ 10,000 - 80,000MOQ: 1 Set
Condition
New
Type
Core Drilling Rig
Power Type
Other, Compressored air
Place of Origin
Zhejiang, China
Brand Name
Desirable
Model Number
HCM351 blast hole crawler drill rigs
Usage
Ore
Voltage
/
Power(W)
33kw
Dimension(L*W*H)
4250*1980*2260mm
Weight
3000kg
Certification
ISO14000
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
blast hole crawler drill rigs HCM351 Crawler Drill Rig1.Pneumatic driven
2.air consumption 17-21m3/min
2.equiped compressor
blast hole crawler drill rigs HCM351 Crawler Drill Rig
Details of Product parameters:
| Model | specification | |
| HCM351 | Working Pressure(Mpa) | 1.0-2.4 |
| Air Consumption(m3/min) | 17-21 | |
| Rotation Speed (r/min) | 0-70 | |
| Impactor Match | Standard DHD 340 | |
| Select Match DHD 350 | ||
| Bore Dia.(mm) | 90-150 | |
| Bore Depth (m) | 20-25 | |
| Traveling Speed (km/h) | 3 | |
| Max. Climb ability(°) | 26 | |
| Max.CleranceToGround(mm) | 254 | |
| G.W.(kg) | 5000 | |
| Dimension(L×W×G)(mm) | 5900×2200×1950 | |
Features:
1.Flexible operating performance, superior off-road capability, higher production
efficiency, open-air drilling and blasting engineering is preferred equipment
2.Matching with medium or high-pressure air compressors, high speed drilling
capacity
3.Compact structure, walking and agile, rational layout, manipulation convenient
4.Mathcing with the high-pressure movable screw compressor, one day can drill
hole diameter of rock 115mm and length is 300m - 200m
blast hole crawler drill rigs HCM351 Crawler Drill Rig
