Specifications
blast hole crawler drill rigs HC725A for mining1.Pneumatic driven
2.high drill speed
3.air consumption 7~12 m3/min
blast hole crawler drill rigs HC725A for mining
Details of Product parameters:
Modle |
specification |
|
|
HC725A |
Rock hardness |
f=6~20 |
Bore Dia.(mm) |
80~115 |
|
Bore Depth (m) |
≤25 |
|
Main motor power |
20kw |
|
Traveling speed(km/h) |
2 |
|
Stand-alone Climb ability(°) |
25 |
|
Max. Hoisting Power (kn) |
12 |
|
Propelling length (mm) |
3000 |
|
Working pressure(Mpa) |
0.5~1.4 |
|
Air consumption(m³/min) |
7~12 |
|
Rotation Speed (r/min) |
0~70 |
|
Dynamic matched |
HG375M-10 |
|
Drill stem size (mm) |
Φ60×2000 |
|
Matched Air Compressor |
HG375M-10 |
|

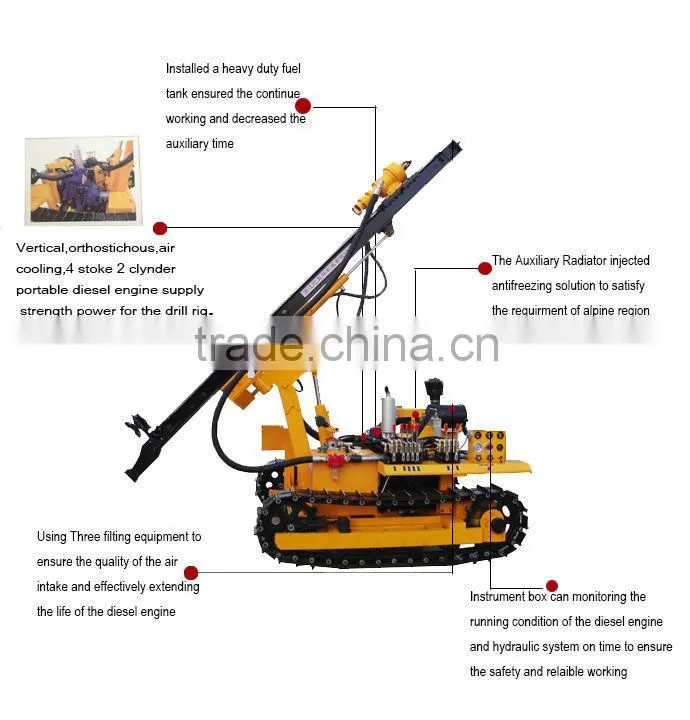

Features:
1.Dust extractor can reduce the dust and keep clean
2.Adopting the same LC collocation with hc726a drill carriage Maximally ensuring
the working life of diesel engine
3.The filled anti-freezing liquid with requirement ratio in the vice-water tank meets
the useful conditions in the Arctic-alpine areas
4.Ensuring the continuous operation of drill carriage and reducing auxiliary time with
large volume of diesel tank
5.Offering the Powerful dynamic for the drill carriage with
upright,straight,water-cooled and DI 2-cylinder diesel engine
6.immediately mornitoring the running conditions of diesel engine and hydraulic
system and ensuring safety and credibility of drill carriage's operation
blast hole crawler drill rigs
