Help CenterAtlas Copco Bolaite 120hp High Pressure Screw Compressor
Related Products
-
Atlas Copco Bolaite Precio de Compresor de Aire 20hpUS$ 500 - 20,000MOQ: 1 Set -
Atlas Copco Bolaite Screw Compressor Made in ChinaUS$ 5,000 - 83,500MOQ: 1 Set
-
Atlas Copco (Bolaite) 8bar Compresor de Aire Para la MineriaUS$ 5,000 - 83,500MOQ: 1 Set
-
Atlas Copco Bolaite Supply Screw Compressor 20hpUS$ 500 - 20,000MOQ: 1 Set
-
Atlas Copco Bolaite 120hp Supply High Quality Screw CompressorUS$ 1,000 - 85,000MOQ: 1 Piece
Specifications
high pressure screw compressor1>CE screw air compressor
2>Original Atlas copco Air End;
3>Double screws air compressor.

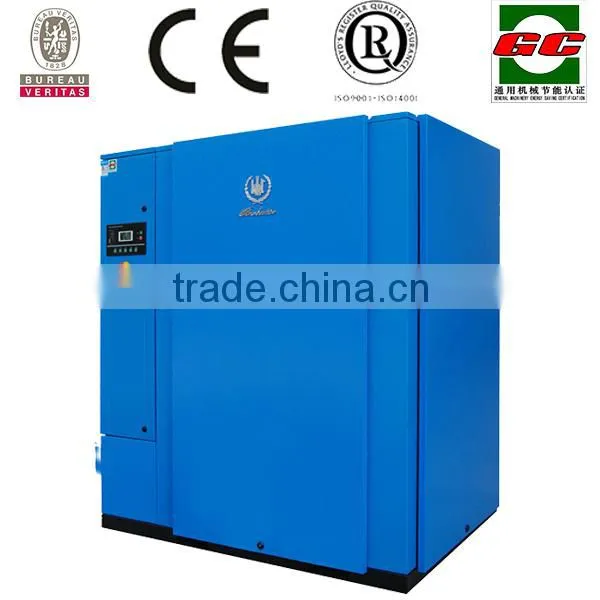

Atlas copco Boalite high pressure screw compressor
Bolaite series compressor
1.Durable
Each BLT Series air compressors are designed, produced and tested according to strict standards
And adopting the injected screw rotor which is supplied by unified Group, ensure that the air
compressor can operates at the lowest operating cost and long-term stable situation.
2.High competitive price
The energy consumption of producing compressed air may exceed 40% of the enterprise's total
energy consumption. BLT series air compressor adopts high-
effective rotors, which can significantly reduce energy consumption, to help customers save cost.
3.Air end
Core components air end supplied by the group company, using the world's most advanced rotor
technology. Patented line, the best line speed, always in the most efficient running, energy
efficiency significantly ahead of the market similar products;

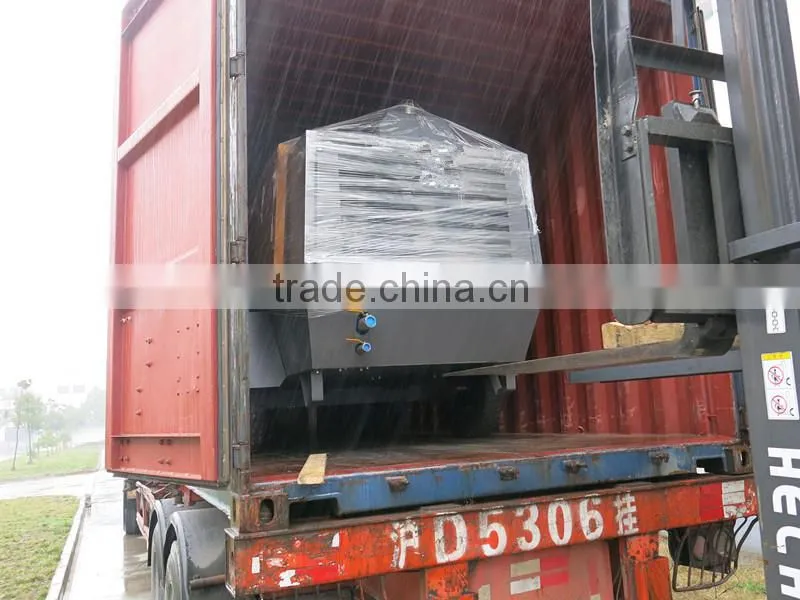

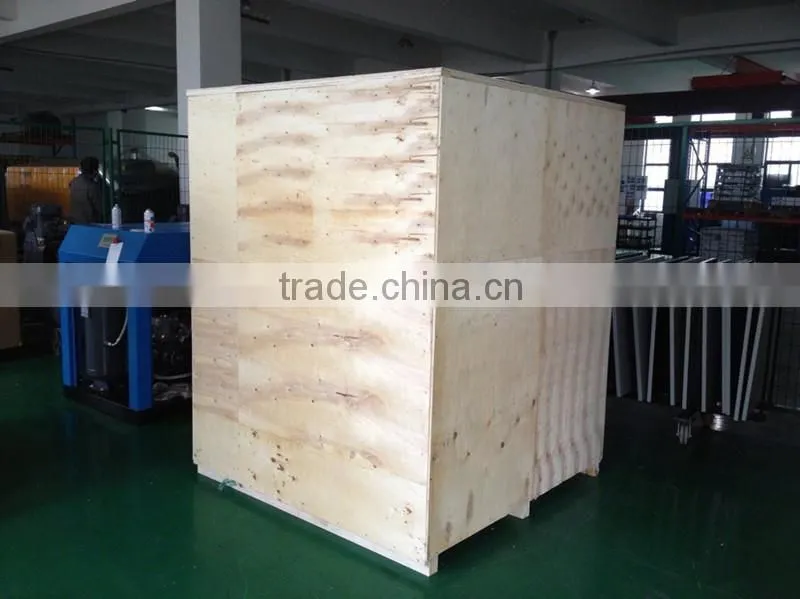

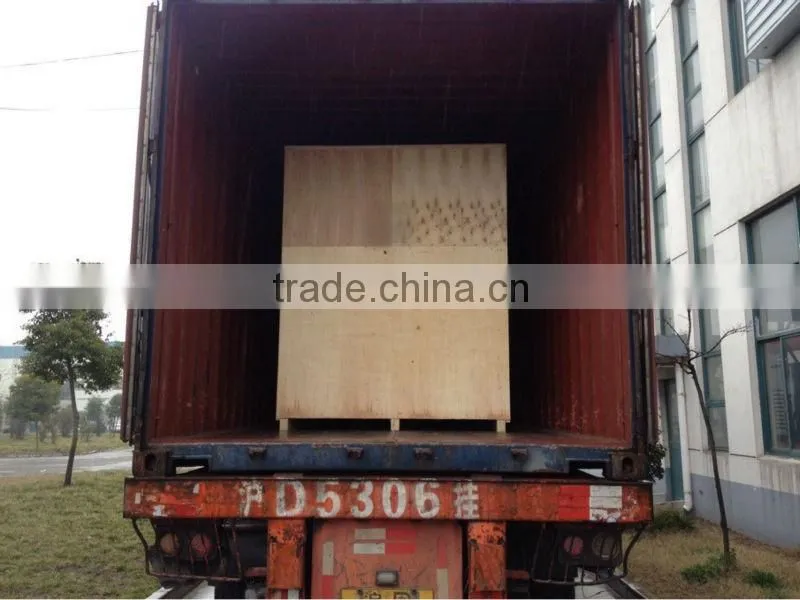

1. High quality wooden case packing for mining air compressor
2. 10 days after receiving the prepayment.
4.Perfect after-sales service for 90kw compressor de shangai
Bolaite has a sound localization service and spare parts supply system all over the country,
supported by a strong dealer network, can provide the most attentive, efficient service and
first-class original spare parts for customers.
Technical parameter of high pressure screw compressor
Model |
|
BLT-120A/W |
||||
Free Air Delivery |
M3/min |
17.1 |
16.9 |
14.6 |
12.6 |
|
Working Pressure |
bar |
7 |
8 |
10 |
13 |
|
Compression stage |
|
Single stage compression |
||||
Cooling model |
|
Air cooling |
||||
Discharge temperature |
°C |
≤The environment temperature +15°C |
||||
Noise Level |
dB(A) |
72±2 |
||||
Transmission mode |
|
Direct transmission |
||||
Voltage |
V/Ph/Hz |
380V/3Ph/50Hz or as your demand |
||||
Motor power |
KW/HP |
90/120 |
||||
Starting model |
|
star-delta starting |
||||
External dimensions |
L |
mm |
1710 |
|||
|
W |
mm |
1170 |
|||
|
H |
mm |
1800 |
|||
Weight |
Kg |
1450 |
||||
Exhaust Pipe diameter |
inch |
G2” |
||||
5.Notes:
Pls kindly help to confirm the followings:
1.Working pressure(bar/Mpa/psi)?
2.Air delivery(CFM/m3/min)?
3.Voltage(V/ph/HZ)?
4.What's the compressor used for? The more specific,the better.
When we get your kind answers above,Our engineer can choose the most suitable model for you.
