Specifications
screw compressor made in China1.Durable Atlas COPO air end
2.ZODA motor
3.Bearing:Sweden SKF
4.Real Factory in Shanghai
Atlas Copco Bolaite screw compressor made in China
BLT-60A
Five Advantages of screw compressor made in China
1.Unique design-Atlas Copco
2.Higher efficiency-energy saving
3.Larger Air delivery-much more 0.3m3/min
4.Longer Working Life-Air end 20000-40000hours(5years)
5.Lower Rotation Speed-2300RPM
Features of screw compressor made in China
Item |
Name |
Source |
1 |
Air ends |
Sweden Atlas Origin |
2 |
Bearing |
100% Sweden SKF (LIFE60000hours ) |
3 |
Oil filter |
Germany MANN Origin |
4 |
Pressure sensor |
UK GEMS Origin |
5 |
Air Intake Valve |
Sweden Atlas Origin |
6 |
Container |
Shanghai ShenJiang |
7 |
Oil/Gas separator |
Germany MANN Origin |
8 |
Lubricating Oil |
BLT Origin |
9 |
PLC |
Schneider Electric France Origin |
10 |
Suction valve |
Sweden Atlas Origin |
11 |
Thermostat valve |
Austria Hoerbiger |
12 |
Pressure valve |
HoerbigerAustria Origin |
13 |
Electro motor |
ABB WOLONG |
Technical Parameter of screw compressor made in China
Model |
|
BLT-60A |
||||
Air flow |
M3/min |
7.8 |
7.3 |
6.5 |
5.7 |
|
Working pressure |
bar |
7 |
8 |
10 |
13 |
|
Compression stage |
|
Single stage compression |
||||
Cooling model |
|
A-Air cooled |
||||
Discharge temperature |
°C |
≤the ambient temperature +15°C |
||||
Noise Level |
dB(A) |
66±2 |
||||
Transmission mode |
|
Belt Driven |
||||
Power supply |
V/Ph/Hz |
As customers’ requirement |
||||
Motor power |
KW/HP |
45KW/60HP |
||||
External dimensions |
L |
mm |
1485 |
|||
|
W |
Mm |
970 |
|||
|
H |
Mm |
1630 |
|||
Weight |
Kg |
850 |
||||
Exhaust Pipe diameter |
inch |
G1 1/2” |
||||

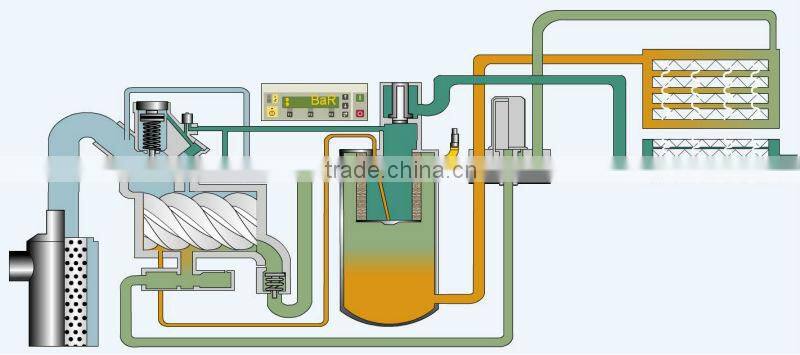

Oil and air line flow drawing

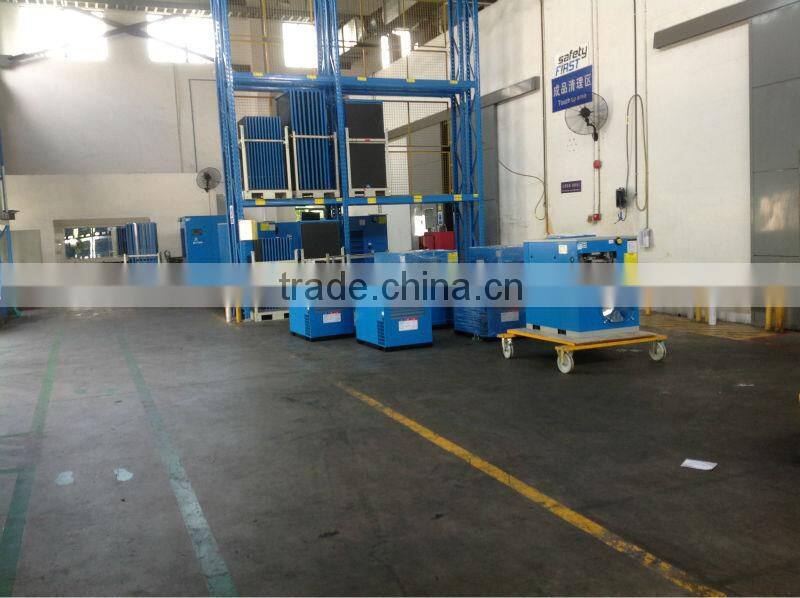

Main pictures Show Our factory of screw compressor made in China
