Atlas copco 132kW 7bar screw air compressor machinery
-----------------------Better life together------------------------
BLT series air compressors are designed and manufactured for domestic conditions and operating environment with superior performance, easy installation, flexible and highly productive handling characteristics; Being able to meet the functional needs of users, and escorting for the production process users; while ensuring high production efficiency and productivity, and reducing costs.
Durable- Atlas copco 132kW 7bar screw air compressor machinery
Each BLT Series air compressors are designed, produced and tested according to strict standards. And adopting the injected screw rotor which is supplied by unified Group, ensure that the air compressor can operates at the lowest operating cost and long-term stable situation.
High competitive price- Atlas copco 132kW 7bar screw air compressor machinery
The energy consumption of producing compressed air may exceed 40% of the enterprise's total energy consumption. BLT series air compressor adopts high-effective rotors, which can significantly reduce energy consumption, to help customers save cost. BLT-VFC air compressor can be adjusted gas production according to actual gas consumption, the air compressor energy consumption proportionally reduced, so the average energy savings of 30% or more.
Perfect after-sales service- Atlas copco 132kW 7bar screw air compressor machinery
Bolaite has a sound localization service and spare parts supply system all over the country, supported by a strong dealer network, can provide the most attentive, efficient service and first-class original spare parts for customers.
Technical Parameter of Atlas copco 132kW 7bar screw air compressor machinery
Model |
|
BLT-175A/W |
||||
Free Air Delivery |
M3/min |
24.1 |
23.6 |
20.5 |
17.8 |
|
Working Pressure |
bar |
7 |
8 |
10 |
12 |
|
Compression stage |
|
Single stage compression |
||||
Cooling model |
|
Air cooling |
||||
Discharge temperature |
℃ |
≤The environment temperature +15℃ |
||||
Noise Level |
dB(A) |
75±2 |
||||
Transmission mode |
|
Direct transmission |
||||
Voltage |
V/Ph/Hz |
380V/3Ph/50Hz |
||||
Motor power |
KW/HP |
132/175 |
||||
Starting model |
|
Star-delta starting |
||||
|
External dimensions
|
L |
mm |
2476 |
|||
W |
mm |
1526 |
||||
H |
mm |
1800 |
||||
Weight |
Kg |
2600 |
||||
Exhaust Pipe diameter |
inch |
DN65 |
||||
BLT low pressure screw air compressor life cycle cost
Remarkable components supply chain- Atlas copco 132kW 7bar screw air compressor machinery
No. |
Parts Name |
Quantity |
Brand |
1 |
Air end |
1pc |
Atlas Copco from Belgium |
2 |
Bearing |
1pc |
Sweden SKF |
3 |
Air inlet valve |
1pc |
Atlas Copco |
4 |
Electric motor |
1pc |
ZODA |
5 |
Thermostat valve |
1pc |
Atlas Copco |
6 |
Pressure sensor |
1pc |
Denmark Danfoss |
7 |
Air filter |
1pc |
Atlas Copco |
8 |
Oil filter |
1pc |
Atlas Copco |
9 |
Oil and gas separator |
1pc |
Atlas Copco |
10 |
Minimum pressure valve |
1pc |
Atlas Copco |
11 |
Electric system |
1pc |
Siemens |
12 |
High pressure hose assembly |
1pc |
Italy MANULI |
Advanced compressor management development system- Atlas copco 132kW 7bar screw air compressor machinery
1.Bolaite comprehensive introduction of the company's research and development and advanced management system.
2.Before each new product produces series , shall be subject to five classes, more than a thousand research and development processes.
Group advanced standard production management modes.
3.Reasonable production process.
4.Quality system and responsible institution.
5.Each process and Quality controlled processes.
6.Harsh factory test procedures.
7.Each compressor must go through rigorous testing before leaving factory.
8.Established a separate department to monitor the quality inspection.
Air end- Atlas copco 132kW 7bar screw air compressor machinery
Core components air end supplied by the group company, using the world's most advanced rotor technology.
Patented line, the best line speed, always in the most efficient running, energy efficiency significantly ahead of the market similar products.
High stiffness design of the rotor, to prevent leakage, ensure long life and reliable operation.
Transmission System
Transmission System well-designed and after a long endurance test, good stability, reliable operation and long service life.
Core components imported brands, high transmission accuracy and efficiency.
High quality Motor- Atlas copco 132kW 7bar screw air compressor machinery
High quality and efficient design, F class insulation.
IP54 dust-proof closed motor , it can be safely running in a relatively poor working conditions.
Flexible pipe- Atlas copco 132kW 7bar screw air compressor machinery
Europe imported brand.
Resistant to 135 ℃ temperature.
Excellent abrasion resistance.
Flame retardant shell.
Resistant High pressure.
Excellent resistance to ozone and weather resistance.
Long life, no leaks.
Oil-gas separator- Atlas copco 132kW 7bar screw air compressor machinery
Three-stage oil-gas separator design.
Reducing the pressure of compressed air, to reduce energy consumption.
Oil content of 17% reduction in compressed air.
Reducing energy consumption and maintenance costs of compressed air after treatment.
High efficient Cooler- Atlas copco 132kW 7bar screw air compressor machinery
Large oil cooling design: even at high temperature, dust environment, also to ensure that the lubricating oil temperature in the normal range, to ensure the safety of the compressor in summer.
Computer control- Atlas copco 132kW 7bar screw air compressor machinery
Powerful sound control and detection, to ensure stable operation of the compressor, while also providing excellent operating experience and accurate compressor operating parameters for you.
Automatic fault alarm, fault stop, maintenance and storage of fault alarm information, provide strong protection for your compressor.
Reliable phase sequence protection function detects an error in the phase, can automatically shut down to protect the air end from damage.
Communications capabilities that enable linkage control and centralized control of multiple air compressor (optional).

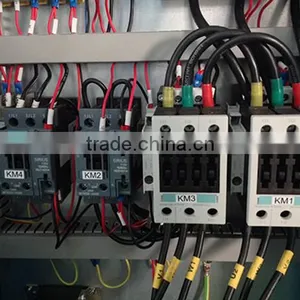

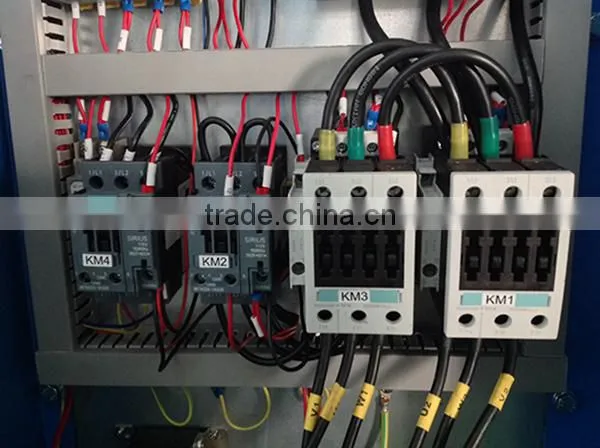

Electrical System- Atlas copco 132kW 7bar screw air compressor machinery
Standard design,Safe and reliable.
Specialized wiring interfaces, cabling reasonable, simple, clear and conducive to the maintenance.
Main contactor adopts Siemens electrical components to ensure the reliable electrical system.
Good protection features to ensure reliable operation of the air compressor.
High efficiency air filters- Atlas copco 132kW 7bar screw air compressor machinery
Efficient original filter, under normal circumstances, the effect of dust 99.9%, to ensure the safe operation of the compressor.
Our Bolaite screw air compressor workshop

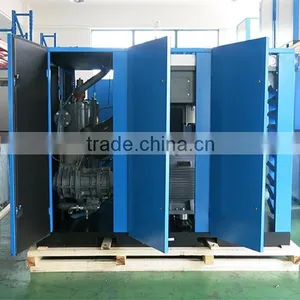

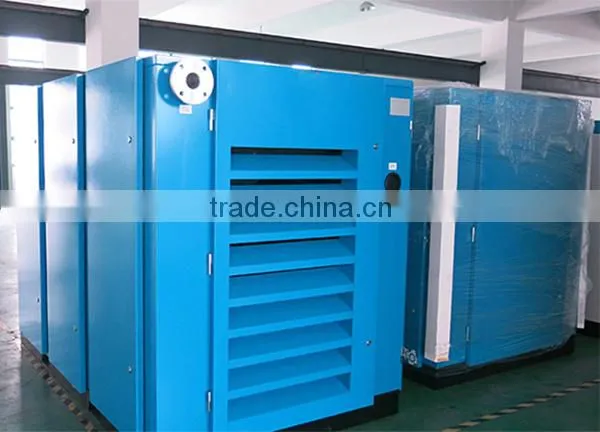

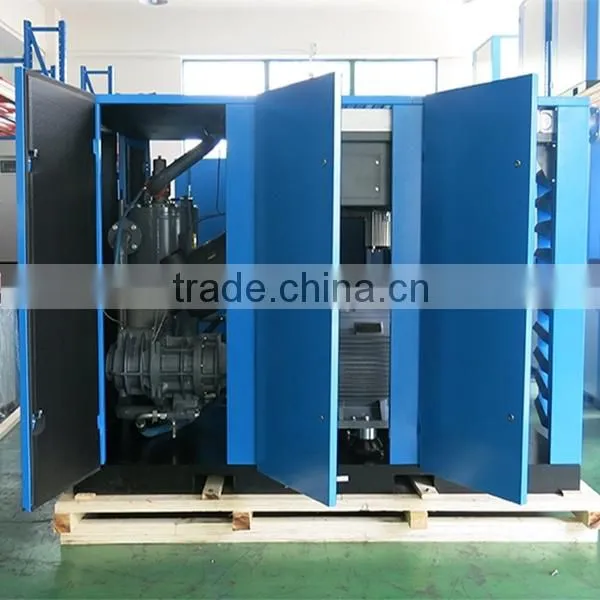

Test finished air compressor

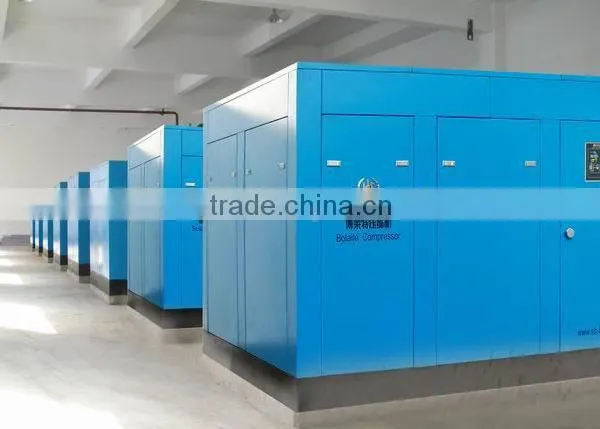

Used Site- Atlas copco 132kW 7bar screw air compressor machinery
Workhop in our factory- Atlas copco 132kW 7bar screw air compressor machinery
Film+Carton+wooden case standard export package. we will install and test the machine for you before shipping, you just need to connect power supply.
1.Payment term
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2.Delivery date
Based on order quantity, generally it takes 3 days for production.
3.Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4.Quality control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5.After-sales
A. Our sales team will response for your question within 24 hours (Holidays Excluded)
B. Technical Support will be available at any time.
