Specifications
silent screw air compressor1.Durable Atlas Copco air end;
2.Mute environmental design;
3.Good value for money.
Atlas Copco (Bolaite) 200Hp 100Psi silent screw air compressor
Atlas copco double screw air compressor is our mature product based on Swesen Atlas Copco.Atlas technology.
Advanced water system make the lubrication, sealing, noise reduction and cooling in a high performance.
SKF bearings and internal hermetic seal technology separate water and bearing absolutely, no
water rustiness of bearing make sure long life up to 50,000 hours.
High efficiency:
The compressor serves as sealant, coolant and lubricant. Sealing function reduces/seals “blow
hole” between rotors and housing to absolute minimum, ensuring efficient compression with
delivered air volume per horse power increased by 15% as compared to general dry-type screw units. Lubricant oil also very effectively absorbs and dissipates heat generated during
compression process.
High reliability:
Atlas copco compressor is designed according to the market based on Sweden technology.
Through more than 10 years market experience, all of its air quality, power saving and high
reliability features have turned out to be state of the art in design and performance.
Air and water are becoming a major trend in compressor market due to their high compatibility,
availability, reliability and environment friendliness.Long interval maintenance periods:
Nearly ideal isothermal compression, direct drive method, smart configuration and precision
component design and machining, long bearing service life; all of the above essentially extends
intervals between regular periodical maintenance.
Dry air:
Lubricant water has low viscosity,which enables water and air to separate easily. Water content can be separated preliminarily within the oil-air tank. Compressed air has a relative humidity of100% and,if equipped with a drier,can be dried
up without installing an oil discharge device in the pipeline.
Low noise design:
-The air sealing effect of oil lubrication can reduce the compressor rotation rate ,and have the structure of compressing chamer realize the design of force balance. The installation of an additional set of new-type sound proof enclosures reduces noise down to 60-80 dBA.
Technical parameter of silent screw air compressor
| Model | BLT-200A |
| Free air delivery / Discharge pressure m3/min (cfm)/ kPa (psi) |
29.0 (1,024) / 7 bar (102 psi) |
| 28.5 ( 1,006) / 8 bar (116 psi) | |
| 26.5( 936) / 10 bar (145 psi) | |
| 22.5 ( 794 ) / 12 bar(174 psi) | |
| Compress stage | Single |
| Ambient temperature | -5 ~ 45°C |
| Electricity supply | 380 V, 3-Ph, 50Hz,or as your demand |
| Motor power | 160 kw ( 200 Hp) |
| Dirve method | Direct driving |
| Cooling type | Air cooling |
| Discharge temperature | Air cooling< environment+15 °C |
| Noise level @ 1m | 75±2 dB(A) |
| Discharge water outlet | DN80 |
| Dimension (L×W×H) | 2,736×1,806×2,100 mm (108×71.1×82.7 inch) |
| Compressor packed size | 12.7 |
| Weight | 3,580kg |
Remarkable components supply chain.
| Item | Parts | Brand |
| 1 | Air End | Atlas Copco |
| 2 | Intake Valve | Hoerbiger (Austria) |
| 3 | Solenoid Valve | CEME (Italy) |
| 4 | Temperature Sensor | Hoerbiger (Austria) |
| 5 | Pressure Sensor | Huba Original (From Switzerland) |
| 6 | Motor | Qingjiang Motor |
| 7 | Coupling | Germany KTR |
| 8 | Thermostat Valve | Italy VMC |
| 9 | PLC | Schneider Electric (France), SIEMENS |
| 10 | Minimal Pressure Valve | Hoerbiger (Austria) |
| 11 | Air Filter Element | Germany MANN |
| 12 | Oil Filter Element | Germany MANN |
| 13 | Oil Separator Element | Germany MANN |
| 14 | Bearing | Sweden SKF |
More details products of silent screw air compressor
Main spare parts of silent screw air compressor

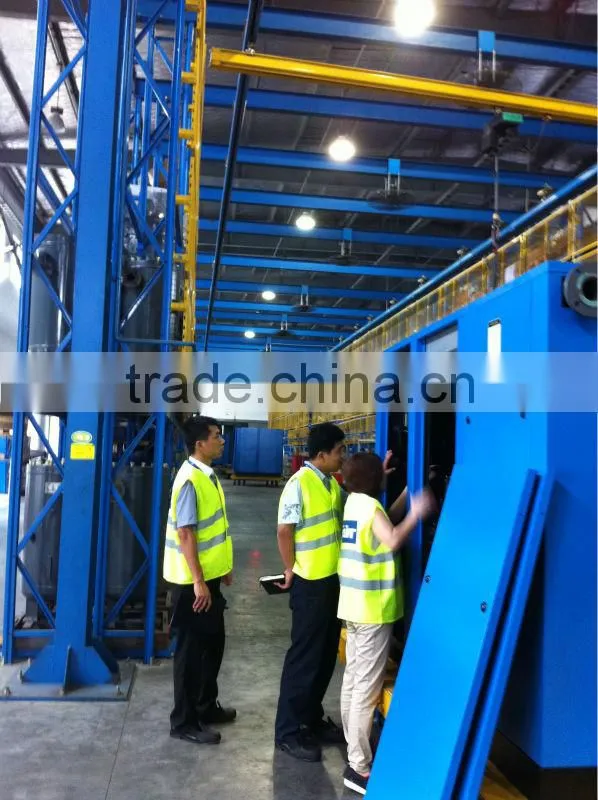

Factory show of silent screw air compressor
