Cnc routing machine /cnc router/high speed cnc wood router BDX-1325
1) wood carver cnc adopts import liner square guide,double four ball slider,so cnc wood router can bear big
gravity,move steady,high accuracy,longevity,import ball with high accuracy,and precision knife,so cnc
router priceis suitable for batch processing kinds of materials.
2) wood carver cnc can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate
and so on.
3) wood carver cnc is wholly break away from remote operation USB connector DSP operating system.
Lever operation so cnc wood router is easily to operate,humanity design and adopts special smart
budget law so cnc wood router can make the motor play full potential.Realize high speed processing.
curve and straight line synchronize,the curve line is more perfect.And do not occupy computer
memory so cnc wood router can realize cutting spindle’s start-stop system.
4) wood carver cnc use high speed drive stepper motor and drive implement.Y axis adopts double
motor drive,so cnc wood router pricecan make the high speed at 25 meters /minute operate
with the cutting spindle so the carving speed is quickly.
Accessoried of cnc routing machine /cnc router/high speed cnc wood router BDX-1325
Technical Parameter:
| Products Name |
cnc routing machine /cnc router/high speed cnc wood router BDX-1325 |
| Model | BDX-1325 |
| Body structure |
steel structure |
| working table | T-slot |
| working accuracy |
±0.05mm |
| CNC or Not | Yes |
| Repositioning accuracy | ±0.05mm |
| Traveling speed | >25m/min |
| spindle | 1.5kw water cooled spindle |
| Spindle rotary speed | 0-24000rpm/min |
| Brand Name | Dipper |
| control system | NC studio |
| Drive and moter | stepper motor |
| Certification | CE, ISO |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Transmission mode | Taiwan HIWIN square guide rail for XYZ axis,gear wheel for XY axis,ball screw for Z axis |
| Working voltage | AC380/50HZ |
|
Max.power consumption (whitout splind) |
1840w |
| Command language | G-code,*u00,*mmg,*plt |
| Software | Type3 or Wentai |
| Cutters | 10 pieces with diameter of 6 and 12.7 |
| Oiling system | manually oiling |
| interface | USB |

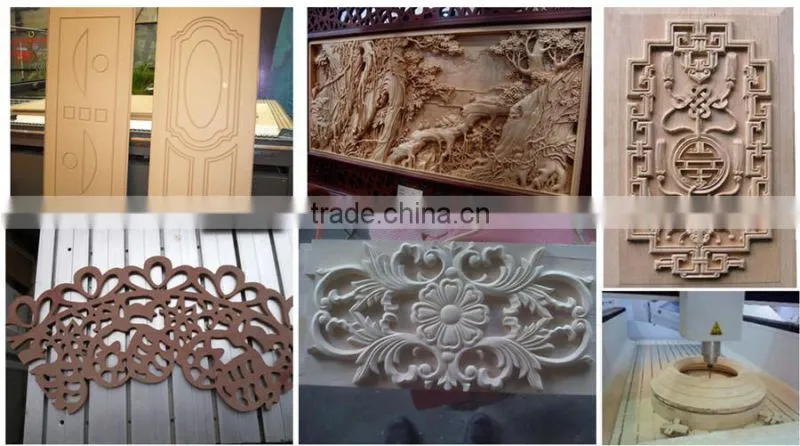

Applicable Industry And Material: 3D Laser Wood Engraving Machine
1.Marble, granite, tombstone, wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber,
ceramic, glass and other non-metal materials, etc.
2.Sticker cutting and engraving, Marble engraving industry, advertisement, gift packing, shoes,
garments, toys, model, decoration, arts and crafts, paper industry, etc.
3D Laser Wood Engraving Machine
| Laser Engraving Machine | Model Number | Working Area | Details |
| BDX-1212 | 1200x1200mm | Click to view | |
| BDX-1218 | 1200x1800mm | Click to view | |
| BDX-1325 | 1300x2500mm | Click to view | |
| BDX-1530 | 1500x3000mm | Click to view | |
Please tell me your size and material, we can also individually customized for you! | |||
Looking For Agents To Distribute Our Products From China For The Small Business Industry Equipment Laser Engraving Machines
Looking For Agents To Distribute Our Products From China For The Small Business Industry Equipment Laser Engraving Machines
Package Process of cnc routing machine /cnc router/high speed cnc wood router BDX-1325 :
Why choose Bigger Dipper ?
1. One year warranty under normal use and we supply maintenance for life for free
2. 24 hours technical support by phone, email, skype, msn or remote
4. Complete and serious Quality Control System & good service after sales.
5. ISO9001 certification and CE certification
1. Do you have MOQ limited ?
MOQ is 1 set.
2.OEM or ODM is available?
Yes,OEM and ODM is available
3. What is the delivery time ?
7-15 working days since received the payment .
4. What is your payment term ?
T/T, L/C, Paypal, Westerunion.
5. Which kinds of transportation method for order ?
By shipping express( DHL, UPS, FEDEX) , AIR, or SEA .
