Specifications
BDX-1325 multi function woodworking machine:1.CE
2:water cooling spindle
3:stepper driver and motor
4.fuling inverter

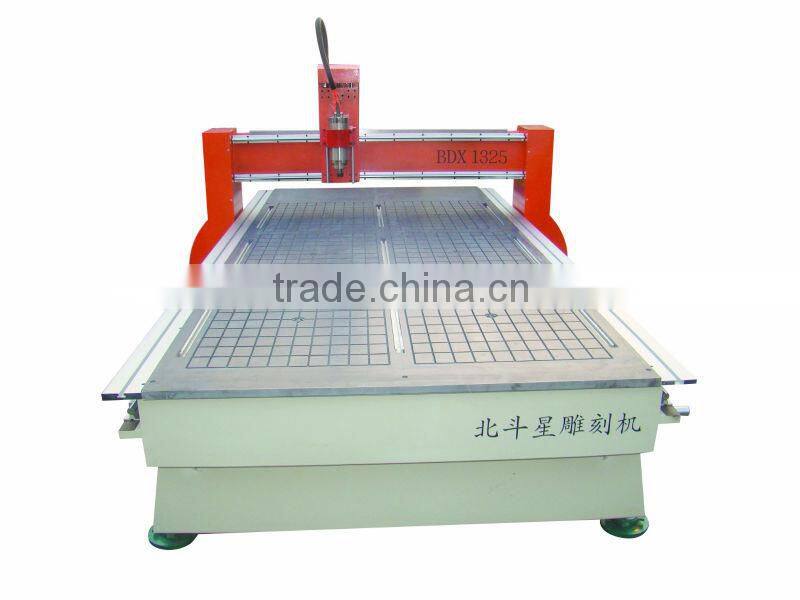

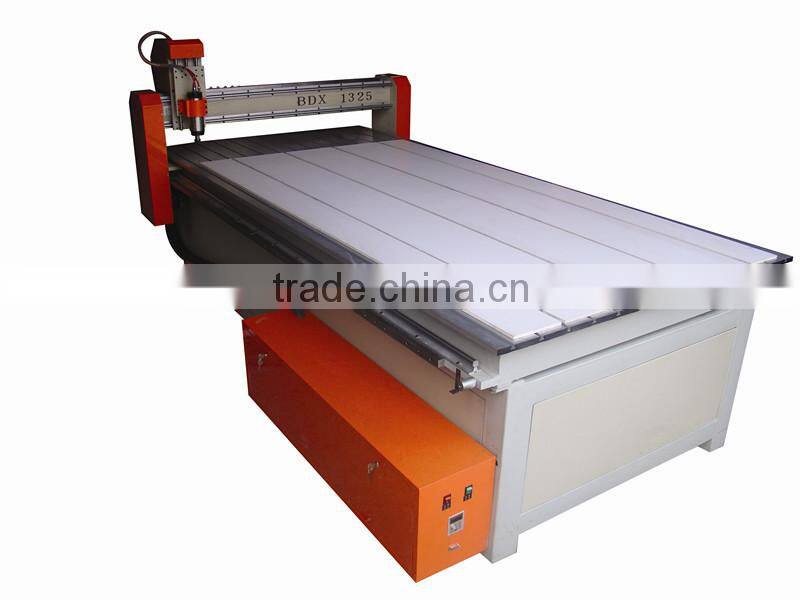

Wood/Acrylic/MDF BDX-1325 multi function woodworking machine

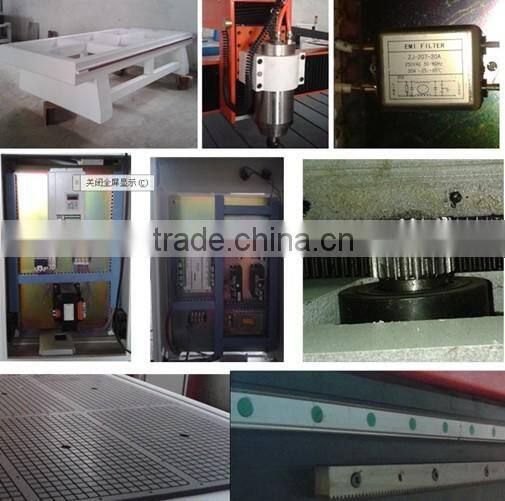

Machine parts of cnc carving machine:
Samples Show of cnc carving machine:
Specifications for cnc carving machine:
1)Adopting imported linear rails guide ways and double rows four line slide blocks; the machine operates smoothly
and accurately bearing heavy load and long working life.
2)The machine adopts steel seamless welding, it really rigid deformation, we installed steel plate at the back of work
table, high strength and rigidity is good, the machine can reach a ton or more load – bearing strength.
Application material for cnc carving machine:
Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewel, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.
Proocessing:
Package and shipping process:
Technical parameter for cnc carving machine:
Model |
BDX-1325 |
X,Y working area |
1250*2450mm |
Z working area |
80mm |
Table size |
1400*2900mm |
Max travel speed |
3m-5m/min |
Max engraving speed |
2m-4m/min |
Resolution ratio |
0.005mm |
Reposition accuracy |
0.05mm |
Max feeding height |
110mm |
Command |
Gcode*.u00*.mmg*.plt |
Surroundings for software |
windows98/2000/xp |
Power(not include the spindle) |
2kw |
Power |
AC220V/50Hz |
Main axle power rate |
2.2kw |
Main axle rotating speed |
0-24000rpm/min |
Work mode |
stepper |
Machine weight |
650kg |
Welcome to visit our factory:
