Specifications
BDX-1224 cnc router for wood kitchen cabinet door:1.CE,ISO standard
2:water cooling spindle
3:stepper driver and motor

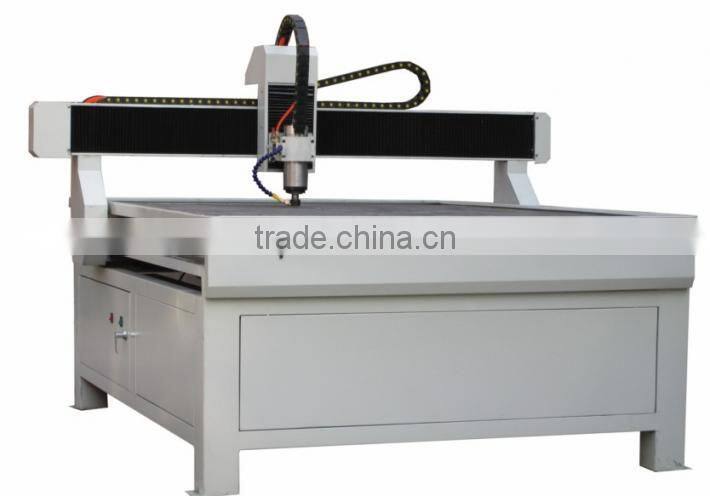

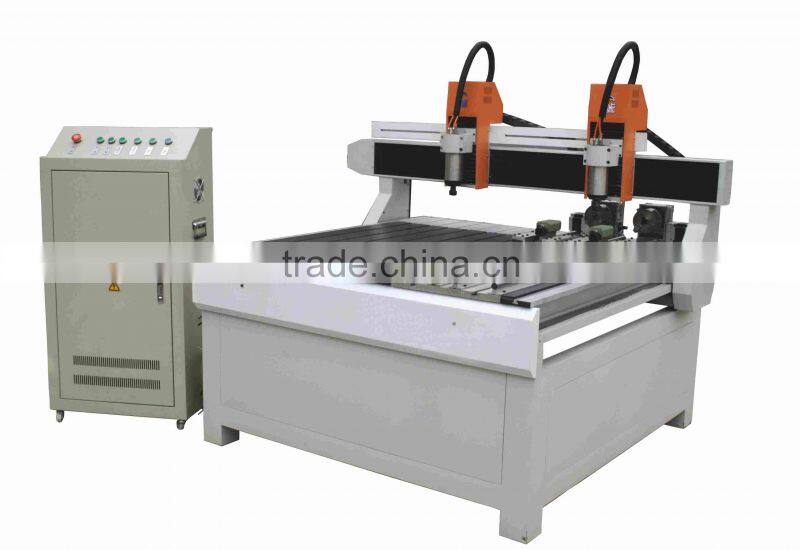

Factory supply BDX-1224 cnc router for wood kitchen cabinet door

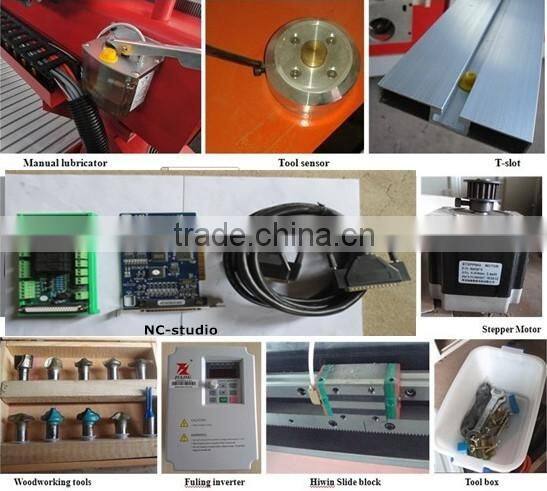

Machine parts of wood engraving machine:
Samples Show of wood engraving machine:
Specifications for wood engraving machine:
1)Adopting imported linear rails guide ways and double rows four line slide blocks; the machine operates smoothly
and accurately bearing heavy load and long working life.
2)The machine adopts steel seamless welding, it really rigid deformation, we installed steel plate at the back of work
table, high strength and rigidity is good, the machine can reach a ton or more load – bearing strength.
Application material for wood engraving machine:
Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewel, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.
Technical parameter for wood engraving machine:
Model |
BDX1224 |
|
Working Area |
1200×2400×300mm |
|
Spindle Motor |
3.0 kw water cooling spindle |
|
Working Mode |
Stepper motor |
|
Control System |
NC-studio control card |
|
Table Surface |
T slot |
|
Frame |
wholly steel structure |
|
Motion Positioning Accuracy |
± 0.03/300mm |
|
Repositioning Accuracy |
± 0.05mm |
|
Max Motion Speed |
50,000mm/min |
|
Max Engraving Speed |
30,000mm/min |
|
Rotating Speed of Spindle |
2,4000rpm |
|
Z-axis setting |
Auto Z origin tool sensor |
|
Dictate Format |
G code, *.u00, *.mmg, *.plt |
|
Operating Voltage |
3phase 380v |
|
Software |
Ucancam Type3 Router8 original with Dongle or Wentai (ArtCUT), ArtCAM software |
|
Packing Size |
3010*1920*1720mm |
|
Lubrication System |
Oil lubrication system |
|
Gross Weight |
700kg |
|
Noise Level |
Racing |
LAeep dB(A)72±1 |
|
Engraving |
LAeep dB(A)80±2 |
|
Engraving Peak |
LAeep dB(C)95 |
Optional Parts |
Dust Collecting System |
|
|
Mist Sprayer and flume |
|
|
Rotary device with Dia80mm/100mm/200mm |
|
|
DSP NK105/Syntec |
|
|
Italy HSD spindle |
|
|
Delta inverter |
|

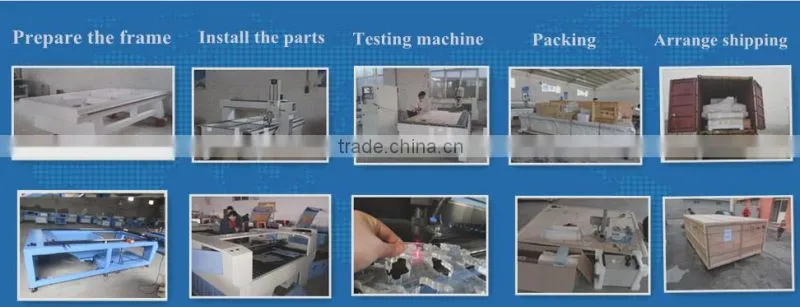

Production Flow Chart of wood engraving machine:
After-sale service about our wood engraving machine:
1) One year free warranty under normal use and we give maintenance for l8 months.
2) First class engineers give 24hours service on Internet and Telephone, free instructions and
problem solving.
3) Free training to make sure you master the operating of cnc router.
Contact Us:
Please feel free to contact us,we will reply within 24h!
We want to know:
1 How much the spindle power you need
2 What materials do you need to process
3 The size and thickness of the material
