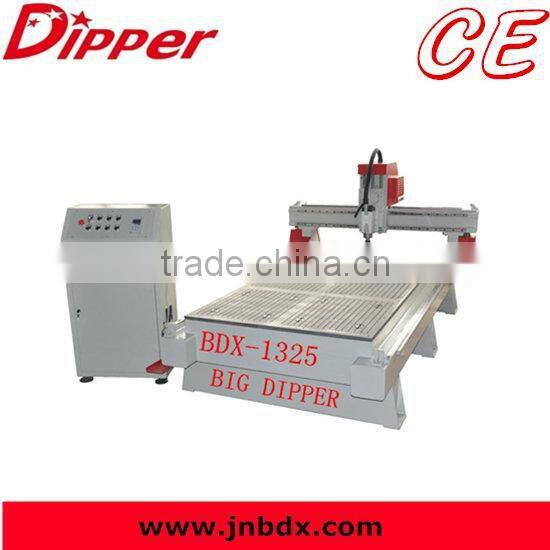

2016 hot sell mdf router table used in wood funiture machine
Machine parts of cnc router:
Application material for cnc router :
Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewel, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.
Specifications for cnc router:
1)Adopting imported linear rails guide ways and double rows four line slide blocks; the machine operates smoothly
and accurately bearing heavy load and long working life.
2)The machine adopts steel seamless welding, it really rigid deformation, we installed steel plate at the back of work
table, high strength and rigidity is good, the machine can reach a ton or more load – bearing strength.
Package and shipping process:
Technical parameter for cnc router:
X,Y,Z Working Area |
1300x2500x200mm |
Table Size |
1640×3040mm |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
Lathe Structure |
Welded Structure |
X, Y Structure |
Gear Wheel Transmission, |
Shaft Linear Bearings | |
Z Structure |
Taiwan TBI Ball Screw, |
Shaft Linear Bearings | |
Max. Consume power |
5.0Kw |
Max. Speed |
0-32000mm/min |
Max. Working Speed |
0-20000mm/min |
Spindle Power Motor |
3.0KW Chinese water-cooling spindle |
Spindle Speed |
0-18000RPM |
Working Mode |
Stepper motor |
Working Voltage |
AC220V/50/60Hz,1PH |
(Option: 380V,3PH) | |
Command |
G Code, *uoo, *mmg, *plt |
Operating System |
Weihong NK105 DSP controller (option NC-Studio) |
Interface |
c |
Flash Memory |
32M |
Collet |
ER25 |
X,Y Working Delicacy |
<0.01mm |
Software |
Ucancam software, Artcam software, Option |
Running circumstance |
Temperature: 0°C~45°C |
Relative humidity: 30%~75% | |
Packing Size |
Separated: 3100X2050X1500mm |
Net Weight |
900KG |
Gross Weight |
1100KG |
FAQ:
