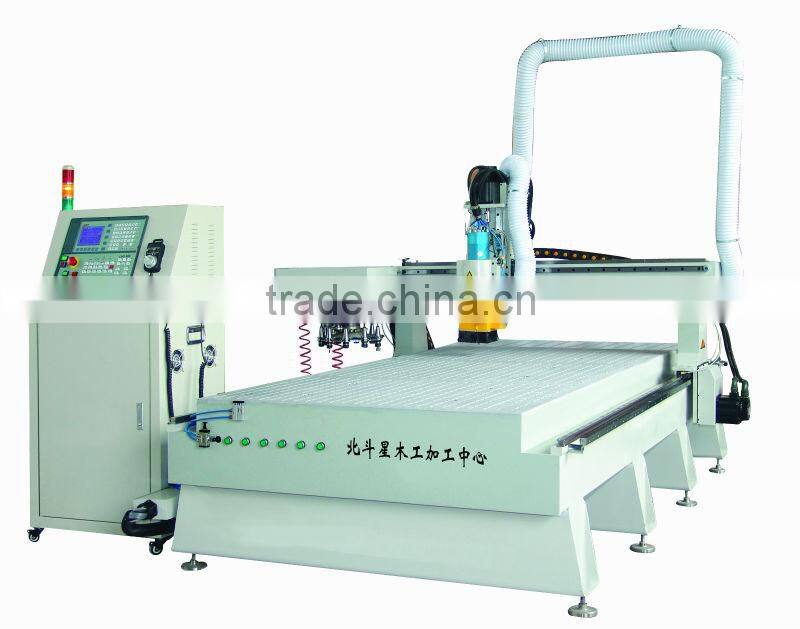

Multifunctional BDX-1325 advertisement cnc router machine

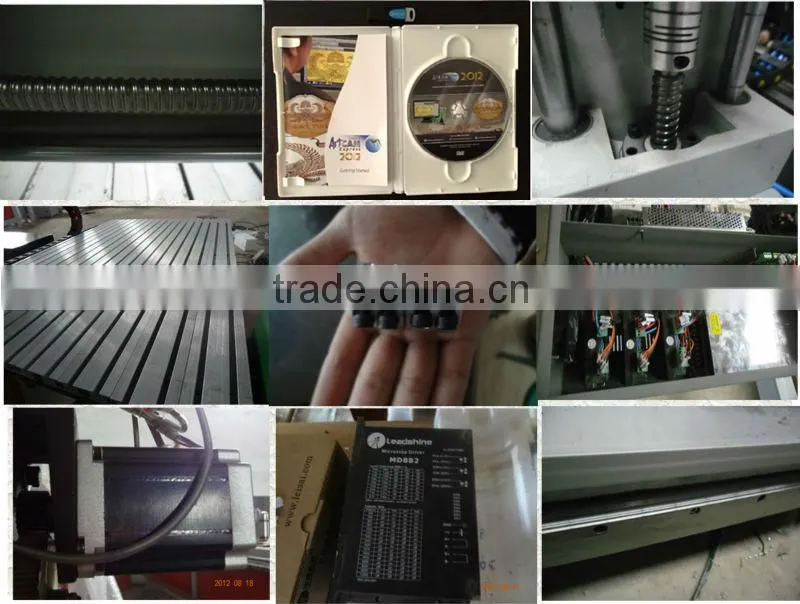

Machine parts of wood carving cnc router
Samples Show of wood carving cnc router:
Specifications for wood carving cnc router:
1)Adopting imported linear rails guide ways and double rows four line slide blocks; the machine operates smoothly
and accurately bearing heavy load and long working life.
2)The machine adopts steel seamless welding, it really rigid deformation, we installed steel plate at the back of work
table, high strength and rigidity is good, the machine can reach a ton or more load – bearing strength.
Application material for wood carving cnc router:
Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewel, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.
Technical parameter for wood carving cnc router:
Model |
BDX-1325 |
X,Y working area |
1250*2450mm |
Z working area |
80mm |
Table size |
1400*2900mm |
Max travel speed |
3m-5m/min |
Max engraving speed |
2m-4m/min |
Resolution ratio |
0.005mm |
Reposition accuracy |
0.05mm |
Max feeding height |
110mm |
Command |
Gcode*.u00*.mmg*.plt |
Surroundings for software |
windows98/2000/xp |
Power(not include the spindle) |
2kw |
Power |
AC220V/50Hz |
Main axle power rate |
2.2kw |
Main axle rotating speed |
0-24000rpm/min |
Work mode |
stepper |
Machine weight |
650kg |
Welcome to visit our factory:
Contact Us:
Please feel free to contact us,we will reply within 24h!
We want to know:
1 How much the spindle power you need
2 What materials do you need to process
3 The size and thickness of the materia
