Specifications
stone engraving machine:1)CE,ISO standard
2)water cooling spindle
3)stepper motor and driver
4)Fuling inverter

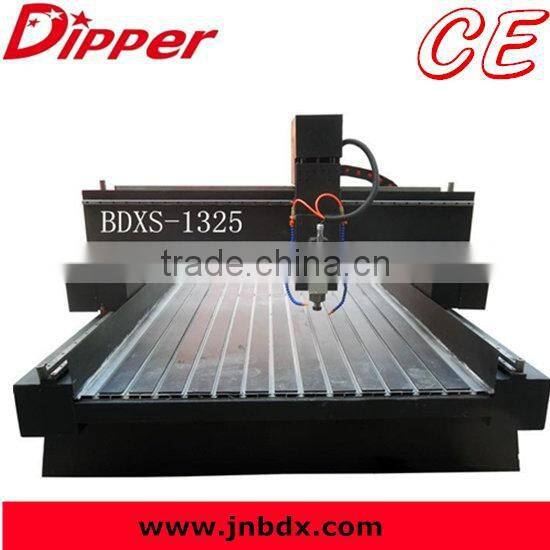

perfect heavy duty 3D granite stone laser engraving machine BDXS-1325
Machine parts of stone engraving machine:

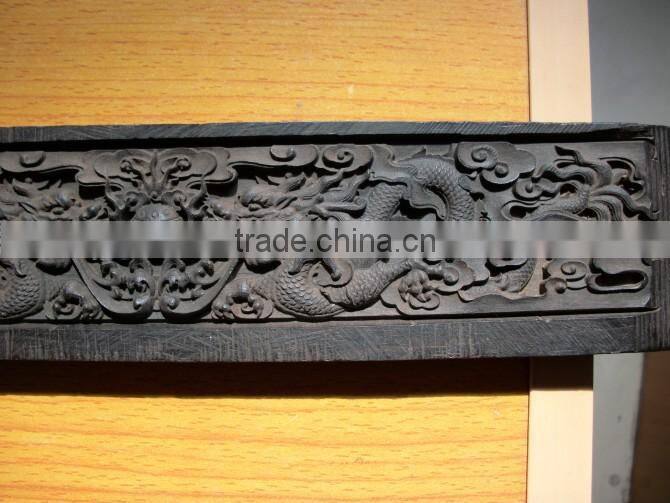

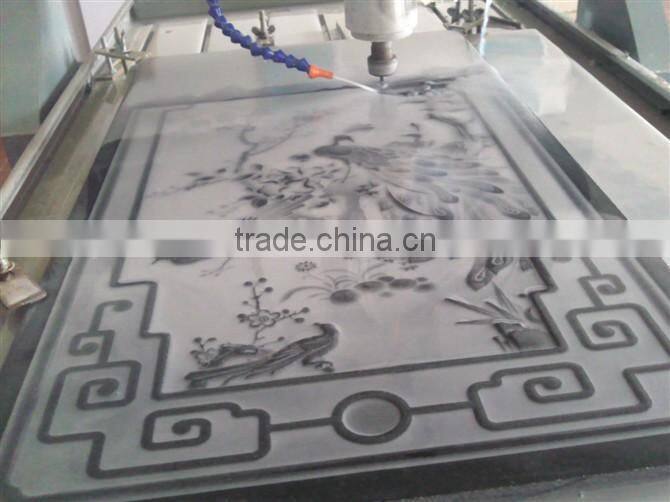

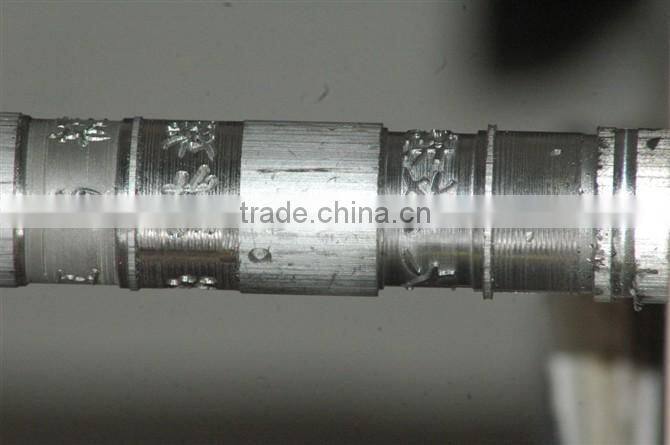

Samples of stone engraving machine:
Performance feature:
1)Industrial production model,heavy all-steel welded,temperating aging treatment,solid and can not change the shape.
2)It adopts Taiwan liner guide which is contact with the bearing surface,so long time use the precision will be high.
3)Germany double-nut automatic anti-backlash ball screw.
4)High speed driver,so it has high speed and power.
5)Dust-protected oiling structure,so it make sure the machine running long time.
6)Break point and cutting continued carving,so it can engrave at any angle.
7)It can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.
8)High power AC water cooling spindle,so it can process hard material efficiently.
Applicable industries:
Stone engraving machine is used for carving marble,granite,glass,muyu-stone and so on hard materials.
Technical parameter:
Model |
BDX-S90 |
BDX-S12 |
BDX-S15 |
BDX-S18 |
X working area |
900 |
1200 |
1500 |
1800 |
Y working area |
1200-1500mm |
1200-1500mm |
1200-3000mm |
1200-3000mm |
Table size |
1080-1800mm |
1380-3000mm |
1680-3500mm |
1980-3500mm |
Max area of Z axis |
300mm |
300mm |
300mm |
300mm |
Highest running speed |
12m/min |
12m/min |
12m/min |
12m/min |
Highest engraving speed |
8m/min |
8m/min |
8m/min |
8m/min |
Precision |
0.005mm |
0.005mm |
0.005mm |
0.005mm |
Max feeding height |
350mm |
350mm |
350mm |
350mm |
Spindle power |
4.5kw/main axis |
4.5kw/main axis |
4.5kw/main axis |
4.5kw/main axis |
Rotated speed of the spindle |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
Working model |
stepper |
stepper |
stepper |
stepper |
Machine weight |
1000kg |
1300kg |
1600kg |
2000kg |
FAQ:

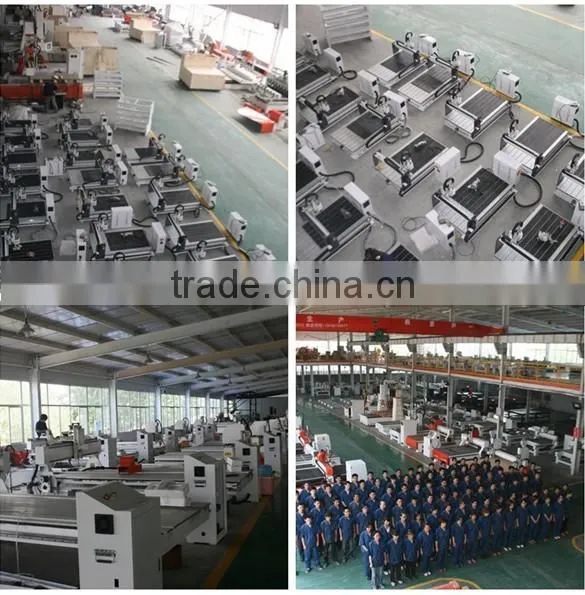

Our Factory:
Further infos,pls do not hesitate to contact me,hope
to build cooperation with you.24hours service,
your inquiry will be replied very soon.
