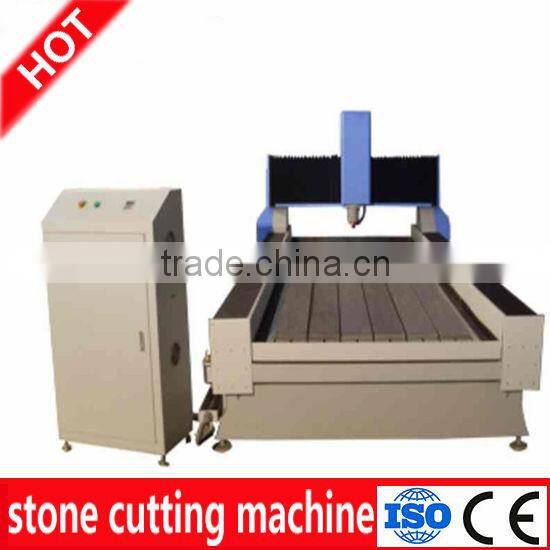

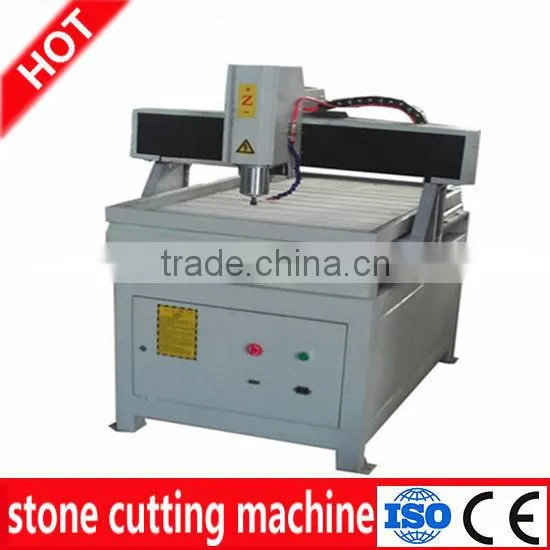

high quality factory supply cheap price mini marble engraving machine

Specifications

mini marble engraving machine:
1 cnc router for stone
2 DSP control system
3 factory supply
4 CE,ISO Standard

       high quality factory supply cheap price  mini marble engraving machine





Machine parts of    mini marble engraving machine :



Samples of     mini marble engraving machine :





Performance feature of     mini marble engraving machine :



1)            mini marble engraving machine    adopts Industrial production model,heavy all-steel welded,temperating aging treatment,solid and can not change the shape.



2)        mini marble engraving machine adopts Taiwan liner guide which is contact with the bearing surface,so long time use the precision will be high.



3)           mini marble engraving machine     has Germany double-nut automatic anti-backlash ball screw.



4)          mini stone carving machine    has High speed driver,so it has high speed and power.



5)Dust-protected oiling structure,so it make sure the machine running long time.



6)Break point and cutting continued carving,so it can engrave at any angle.



7)             mini marble engraving machine    can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.



8)High power AC water cooling spindle,so it can process hard material efficiently.







Applicable industries of    mini marble engraving machine :



polishing machine    is used for carving marble,granite,glass,muyu-stone and so on hard materials.





Technical parameter of     mini marble engraving machine :



Model	BDX-S90	BDX-S12	BDX-S15	BDX-S18
X working area	900	1200	1500	1800
Y working area	1200-1500mm	1200-1500mm	1200-3000mm	1200-3000mm
Table size	1080-1800mm	1380-3000mm	1680-3500mm	1980-3500mm
Max area of Z axis	300mm	300mm	300mm	300mm
Highest running speed	12m/min	12m/min	12m/min	12m/min
Highest engraving speed	8m/min	8m/min	8m/min	8m/min
Precision	0.005mm	0.005mm	0.005mm	0.005mm
Max feeding height	350mm	350mm	350mm	350mm
Spindle power	5.5kw/main axis	5.5kw/main axis	5.5kw/main axis	5.5kw/main axis
Rotated speed of the spindle	0-24000rpm/min	0-24000rpm/min	0-24000rpm/min	0-24000rpm/min
Working model	stepper	stepper	stepper	stepper
Machine weight	1000kg	1300kg	1600kg	2000kg
