Specifications
jade stone cutting machine:1.CE,ISO standard
2:1.5 KW water cooling spindle
3:stepper driver and motor
4:Factory supply

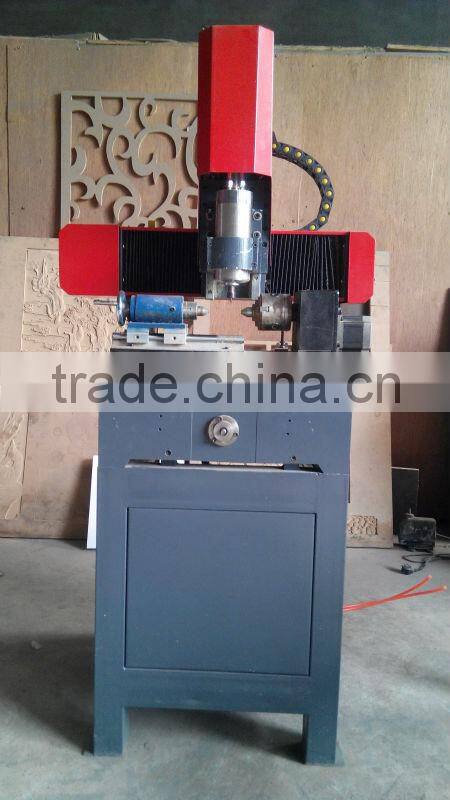

Sex Mini BDXS-3636 jade stone cutting machine

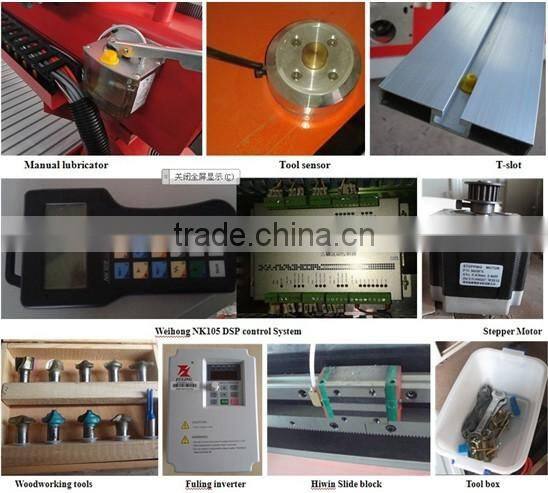

Machine parts of stone cnc router:
Applicable industries of jade cnc router:
It is mainly used for jewelry relief processing,pper,aluminum,zinc and so on metal engraving.
Samples Show of stone cnc router:
Performance feature of jade cnc router:
1)It adopts international advanced precision guide rail,the slider pre-tightened device(make sure the slider no space).Germany import ball screw,so make sure the machine move steadily,high engraving accuracy,and little vibration.
2)The whole machine adopts iron bed and dragon door.The machine steady and run high precision.
3)800w water cooling constant power variable frequency motor,capability strong and less noisy.
Curving and straight line control independently.
4)High speed data transmission.
5)It adopts micro control system,breakpoint continued carving and restore engraving when power supply drop,specify the G code carved and so on advantage.(optional handle operation system,off computer operate).
Technical parameter of jade cnc router:
Model | BDXS-3030 | BDXS-3636 |
Table size | 350mm*350mm | 410*410mm |
Working size | 300*300*100mm | 360*360*100mm |
Engraving speed | 7000mm/min | 7000mm/min |
Resolution ratio | 0.0001mm/step | 0.0001mm/step |
Spindle | frequency conversion water-cooled | frequency conversion water-cooled |
Main axle rotating speed | 0~24000rpm | 0~24000rpm |
Main axle power rate | 1.5kw | 3.0 kw(0.8kw,1.5kw,2.2kw 5.5kw and so on) |
Shank diameter | ø3.175/ø4/ø6 | ø3.175/ø4/ø6 |
Machining instruction | G code /HPGL 3D | G code /HPGL 3D |
Power | 1.5kw | 3.0 kw |
Power supply | AC220V50-60HZ | AC220V50-60HZ |
If any further details you need, please contact us with "contact" buttom.
Please feel free to contact us,we will reply within 24h!
We want to know:
1 How much the spindle power you need?
2 What materials do you need to processing?
3 The size and thickness of the material?
